Affordable Ferro Vanadium Supplier with Reliable Shipping Options

Price Negotiable
MOQ Negotiable
Delivery Time 7-10 work days after received the payment
Brand ZHENAN
Place of Origin China
Certification ISO9001:2015
Model Number FeV
Packaging Details 1MT big bag or as per customer request
Payment Terms L/C, T/T, Western Union
Supply Ability 2000MT/per Month

Product Details

Product Specification

Boiling Point 3337ºC Place of Origin China
Shape block/ lump Packaging Details 1MT big bag or as per customer request
Product Name FeV Color Grey
Model Number FeV Supply Ability 2000MT/per Month
Certification ISO9001:2015 Brand Name ZHENAN
Payment Terms L/C, T/T, Western Union Price Negotiable
Delivery Time 7-10 work days after received the payment Minimum Order Quantity Negotiable
Model 40 50 60 75 80 Melting Point 1887ºC

Product Description

Affordable Ferro Vanadium Supplier with Reliable Shipping Options
How to Make Ferrovanadium

Ferrovanadium is primarily produced through a pyrometallurgical process (using high heat) in an electric arc furnace. The most common method is the aluminothermic reduction process, which is self-sustaining due to its highly exothermic (heat-releasing) nature.

Primary Raw Material: Vanadium Pentoxide (V₂O₅), which is obtained as a byproduct from processing vanadium-bearing magnetite iron ores or from petroleum residues.

The Process (Aluminothermic Reduction):
  1. Raw Material Preparation: The main ingredients are vanadium pentoxide (V₂O₅), a reducing agent (typically aluminum powder), and a source of iron (like iron scrap or mill scale). The iron is necessary to form the iron-vanadium alloy. Fluxes like lime (CaO) or fluorspar (CaF₂) may be added to control the fluidity of the slag.
  2. Charging the Furnace: The mixture is charged into a refractory-lined electric arc furnace. The furnace is not primarily used to melt the charge but to initiate the reaction and maintain the slag in a molten state.
  3. Initiating the Reaction: An electric arc is used to start the reduction reaction. The reaction between aluminum and vanadium pentoxide is extremely exothermic: 3 V₂O₅ + 10 Al → 6 V + 5 Al₂O₃ + Heat. This reaction generates enough heat to sustain itself and melt the resulting vanadium and iron into a liquid alloy.
  4. Separation and Tapping: Due to density differences, the molten material separates into two distinct layers:
    • The denser ferrovanadium alloy (FeV) sinks to the bottom of the furnace
    • The lighter alumina slag (Al₂O₃) floats on top
  5. Casting and Crushing: The furnace is tapped, and the two layers are poured into a mold to solidify. The ferrovanadium ingot is then broken up, crushed, and sorted into standard sizes for shipment. Common grades are FeV80 (~80% V) and FeV50 (~50% V).

An alternative silicon reduction process exists, often using ferrosilicon as the reductant, sometimes in a two-stage process to produce lower-grade ferrovanadium.

Specifications
Grade V Al P Si C
FeV40-A 38-45 1.5 0.09 2.00 0.60
FeV40-B 38-45 2.0 0.15 3.00 0.80
FeV50-A 48-55 1.5 0.07 2.00 0.40
FeV50-B 48-55 2.0 0.10 2.50 0.60
FeV60-A 58-65 1.5 0.06 2.00 0.40
FeV60-B 58-65 2.0 0.10 2.50 0.60
FeV80-A 78-82 1.5 0.05 1.50 0.15
FeV80-B 78-82 2.0 0.06 1.50 0.20

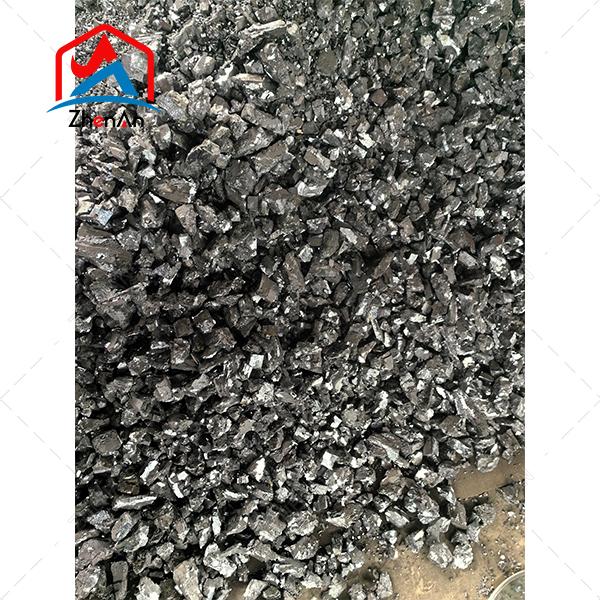

Ferro Vanadium product sample Ferro Vanadium product close-up
Packing & Delivery

Packing: 1 ton big bag, 20-25mt in 20' container

Ferro Silicon Magnesium packaging
Company Profile

ZHENAN has been in the business of ferroalloy for 30 years now. It is a leading manufacturer and supplier of ferro silicon, silicon manganese, silicon metal, silicon carbide, high carbon silicon and so on. Our company is a large-sized production enterprise integrating research, development, production and sales.

Our Services
Q: Can we be your distributor?

A: We are looking for distributors and agents worldwide.

Q: How is the packaging?

A: Our standard packaging is in buckets, but we can also pack according to your specific requirements.

Q: How's the delivery time?

A: It depends on the quantity you need.

Q: Are you a manufacturer or trader?

A: We are a manufacturer.
