| Price | Negotiable |
| MOQ | Negotiable |
| Delivery Time | 7-10 work days after received the payment |
| Brand | ZHENAN |
| Place of Origin | China |
| Certification | ISO9001:2015 |
| Model Number | Ladle Nozzle |
| Packaging Details | 1MT big bag or as per customer request |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 2000MT/per Month |
| Origin | China | Place of Origin | China |
| Packaging Details | 1MT big bag or as per customer request | Material | Ladle Nozzle |
| Model Number | Ladle Nozzle | Supply Ability | 2000MT/per Month |
| Feature | Thermal shock Resistance | Certification | ISO9001:2015 |
| Al2O3 | No Less Than 60% | Brand Name | ZHENAN |
| Payment Terms | L/C, T/T, Western Union | Type | Refractory Material |
| Packing | Wooden Case | Price | Negotiable |
| Delivery Time | 7-10 work days after received the payment | Minimum Order Quantity | Negotiable |

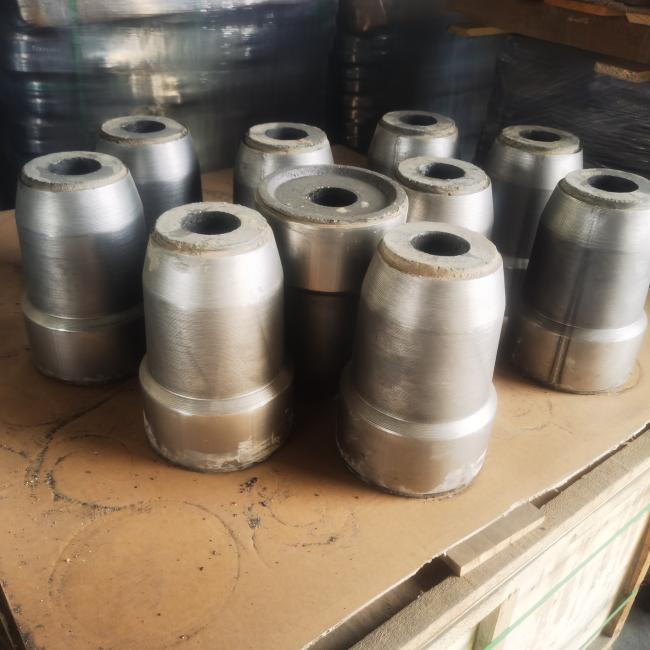

Ladle Nozzle Refractory Upper And Collector Nozzle
Description
Ladle nozzle is composed of upper and lower sliding plates and 4 refractory bricks for the upper and lower nozzles. The pouring of each ladle of molten steel must pass through the upper and lower sliding plates and the upper and lower nozzles, so they are very strict. Firstly, they must have sufficient strength at high temperatures to withstand the static pressure of molten steel. Secondly, the upper and lower sliding plates are required. The sliding surface should be very smooth, flatness should be high, to ensure tight contact, to ensure that no molten steel leaks during the pouring process, but also to be resistant to erosion, erosion, and good thermal stability, so as to withstand sudden changes in temperature. Erosion and slag erosion.
Features
(1) Smoothness of sliding surface ≤0.05mm;
(2) High mechanical strength;
(3) Strong corrosion resistance to molten steel and slag;
(4) Excellent oxidation resistance;
(5) Good thermal shock stability.
Specifications
| Lower nozzle (Ladle nozzle) | ||||
| Al-C Material | ||||
| Al2O3 | FC | Apparent porosity | Bulk density | C.C.S |
| (% minm) | (% minm) | (% max) | (gm./cc minm) | (MPa minm) |
| 65 | 4 | 14 | 2.75 | 65 |
| 75 | 4 | 14 | 2.75 | 70 |
| 85 | 4 | 14 | 2.85 | 75 |
| 90 | 4 | 14 | 2.9 | 85 |
Packing & Delivery
Packing: 1 ton big bag, 20-25mt in 20' container
Our Services
We can try our best to provide you the good services as below:
1.We have Experienced staffs .
2.Provide kinds of certificates.
3.24 hours on line to answer all your questions .
4.The content packing particle size may be based on customer demand.
5.Quality can be guaranteed. we provide safe products to our users.
