| Price | Negotiable |
| MOQ | Negotiable |
| Delivery Time | 7-10 work days after received the payment |
| Brand | ZHENAN |
| Place of Origin | China |
| Certification | ISO9001:2015 |
| Model Number | Ladle Nozzle |
| Packaging Details | 1MT big bag or as per customer request |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 2000MT/per Month |
| Origin | China | Place of Origin | China |
| Packaging Details | 1MT big bag or as per customer request | Material | Ladle Nozzle |
| Model Number | Ladle Nozzle | Supply Ability | 2000MT/per Month |
| Feature | Thermal shock Resistance | Certification | ISO9001:2015 |
| Al2O3 | No Less Than 60% | Brand Name | ZHENAN |
| Payment Terms | L/C, T/T, Western Union | Type | Refractory Material |
| Packing | Wooden Case | Price | Negotiable |
| Delivery Time | 7-10 work days after received the payment | Minimum Order Quantity | Negotiable |

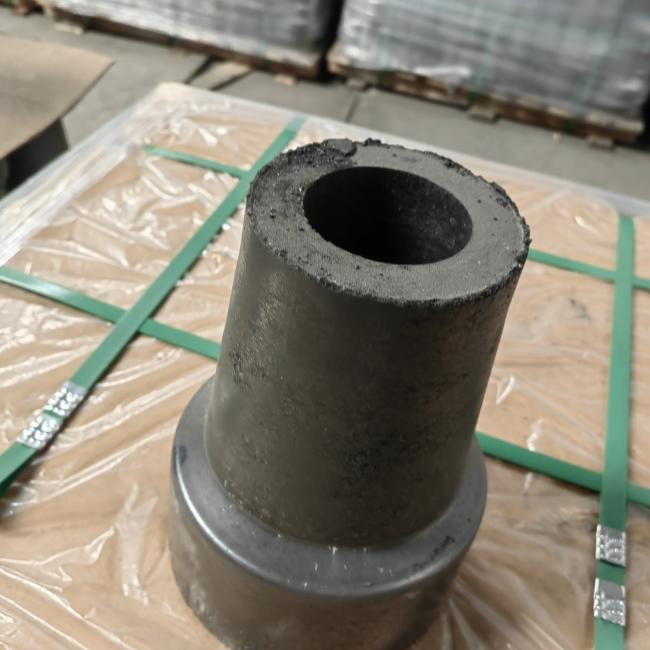

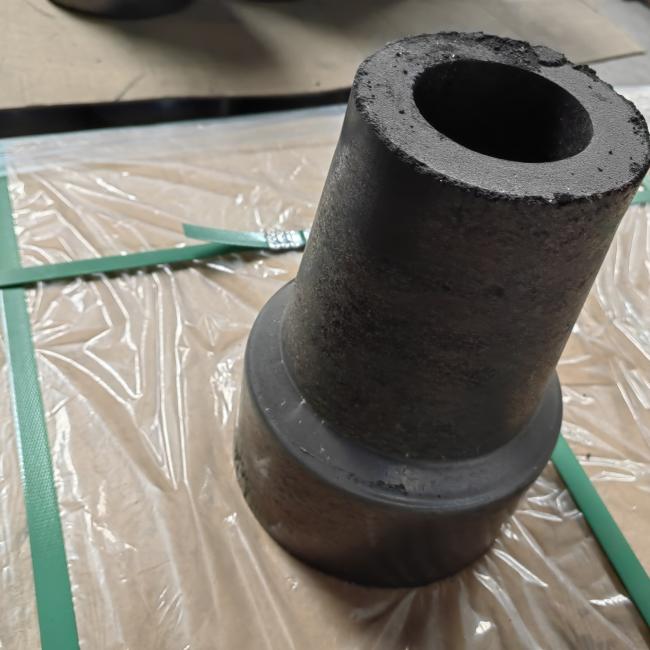

Refractory Alumina Carbon Upper Nozzles for Ladle
Description
Ladle
upper
nozzle
series
are
developed
with
newest
matrix
optimization
technology
and
theory
of
most-compact.
In
the
pouring
process,
generally
after
pouring
one
or
two
furnaces
of
molten
steel,
the
lower
slide
plate
and
the
nozzle
must
be
replaced
and
reassembled.
The
sealing
protection
adopts
fibrous
or
mortar
gaskets
to
ensure
the
high
cleanliness
of
the
molten
steel
and
the
uniformity
of
the
internal
quality
of
the
casting
slab.
The ladle nozzle is used to output the molten steel in the ladle. The ladle nozzle includes an upper nozzle, a sliding plate and a lower nozzle which are arranged in order from top to bottom. The sliding plate is slidable and the sliding plate is provided with molten steel holes.
Specifications
| Item |
Nozzle Pocket |
Upper Nozzle |
|||
|
Magnesium Spinel Carbon |
Magnesium Chromium Carbon |
SK-1 | SK-2 | ||
| Chemical Properties/% | Al2O3 | 8 | -- | 60 | 70 |
| MgO | 65 | 75 | -- | -- | |
| C | 8 | 8 | 5 | 6.5 | |
| Cr2O3 | -- | 2 | - | -- | |
| Refractoriness/ºC,≥ | 1790 | 1790 | 1790 | 1790 | |
| Apparent Porosity/%≤ | 5 | 5 | 8 | 6 | |
| Bulk Density/g/cm3≥ | 2.9 | 2.9 | 2.9 | 2.95 | |
| Cold Crushing Strength/Mpa ≥ | 35 | 35 | 50 | 60 | |
Packing & Delivery
Packing: 1 ton big bag, 20-25mt in 20' container
Our Services
We can try our best to provide you the good services as below:
1.We have Experienced staffs .
2.Provide kinds of certificates.
3.24 hours on line to answer all your questions .
4.The content packing particle size may be based on customer demand.
5.Quality can be guaranteed. we provide safe products to our users.
