| Price | $1.00 - $50.00/Pieces |
| MOQ | 10 Pieces |
| Delivery Time | Negotiable |
| Brand | VKNTECH |
| Place of Origin | Guangdong, China |
| Certification | IATF16949/ISO9000 |
| Model Number | 1K8050 |
| Packaging Details | CARTON/PALLET |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 2000000pcs/Year |
| Place of Origin | Guangdong, China | Warranty | 12 Months |
| Sample | Available | Packaging Details | CARTON/PALLET |
| Port | Guangzhou | OE NO. | W01-358-8050 |
| Material | Imported Natrul Rubber | Operation | Gas-filled |
| Model Number | 1K8050 | Supply Ability | 2000000pcs/Year |
| Certification | IATF16949/ISO9000 | Brand Name | VKNTECH |
| Payment Terms | L/C, T/T, Western Union | Car Model | For bus/truck&trailer |
| Brand | VKNTECH or customized | Type | by sea / by air / by truck |
| Payment term | T/T&L/C | Price condition | FOB China |
| Type of Goods | Air Spring/Air bags/Air Ballons | Price | $1.00 - $50.00/Pieces |
| Minimum Order Quantity | 10 Pieces | Service offered | OEM |
| Suspension system | Air Spring Suspension | Package | Standard packing or customized |
Trailer
Air
Spring
Bag
(Replaces
Firestone
8050,
Hendrickson
S-4771,
Goodyear
1R14-039
&
Firestone
W01-358-8050)
OEM NUMBERS
|
Contitech |
1110.5E-16A320 |
DAYTON |
352-8050 |
|
Firestone |
W01-358-8050 |
HENDRICKSON |
B-12514-013 |
|
|
1T19ZK-5.7 |
|
S4771 |
|
Goodyear |
1R14-039 |
|
T-15-140/150 |
|
|
1R14-055 |
|
T-15-324/376 |
|
|
1R14-083 |
|
T-17-174/284 |
|
|
|
|
HT-300T(all) |
|
|
|
INTERNATIONAL/NAVISTAR |
1685174C1 |
|
|
|
LOAD GUARD |
SC2052 |
|
|
|
TUTHILL-REYCO |
23631-01 |
|
|
|
WATSON & CHALIN |
AS-0039 |
|
|
|
|
TA-300-15/16/17/22/23B |
|
|
|
|
TA-5000-DB-24/-DB-30/-F-24 |
|
|
|
|
TA-525DB/-525FS |
Description
KEY
FEATURES
OF
AIR
SPRINGS:
-
Easy
to
identify
part
number
permanently
engraved
on
the
rubber.
-
4.5-5.00mm
trick
rubber
that
exceeds
OEM
requirements.
-
25%
stronger
4140
grade
steel
studs.
-
Stronger
composite
pistons.
-
Highest
leak
test
ratio
after
final
assembly.
REPLACES:
Hendrickson
S-4771,
Hendrickson
Canada
B-12514-013,
Firestone
W01-358-8050,
Goodyear
1R14-039,
1R14-055,
1R14-083,
ContiTech
1110
5C-16,
Triangle
8320,
Tuthill-Reyco
23631-01,
Watson
&
Chalin
AS-0039,
REPLACES:
Hendrickson
S4771,
Hendrickson
Canada
B12514013,
Firestone
W013588050,
Goodyear
1R14039,
1R14055,
1R14083,
ContiTech
11105C16,
Triangle
8320,
TuthillReyco
2363101,
Watson
&
Chalin
AS0039,
REPLACES:
Firestone
8050
SPECIFICATIONS:
Extended
Height:
19.25"
Compressed
Height:
5.80"
Top
Plate
Width:
11.31"
Piston
Width:
11.62"
Weight:
25.00
lbs

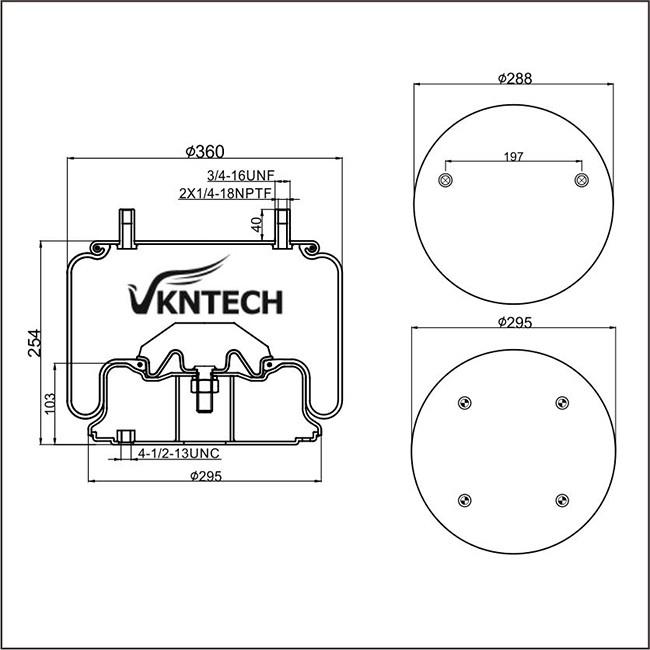

Product Drawing
Specificaiton
| Air Spring Air Fitting Size | 2 x Combination Stud/Air Inlet Stud Outside Thread is 3/4-16 ; Studs Inside Thread (Air Inlet) is 1/4 N.P.T. |
| Air Spring Compressed Height | 5.8 in. |
| Air Spring # of Lobes | 1 Solid Sleeve |
| Air Spring Type | 1T - Reversible Sleeve |
| Bead Plate (Top) & Deflated Bellows O.D. | 11.31 and 10.62 in. |
| Bead Plate (Top) Mounting Bolts Dimension Center to Center | 7.75 in. |
| Diameter | 10.62 in. |
| Extended Height Deflated | 19.25 in. |
| Finished Weight | 23.66 lbs |
| Piston (Bottom) Mounting Bolt Dimensions Center to Center | 7.88 in. |
| Piston Height | 4 in. |
| Bead Plate Top Diameter | 11.31 in. |
| Bead Plate Bottom Diameter | 11.62 in. |
| Application | Watson & Chalin AS-0039 Supersedes AT19J-6 |
| Assembled Product Weight (lb) | 21.2 |
| Bellows | 1T19ZK-5.7 |
| Bottom Bead Plate Hardware Key | 4 x Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons |
| Design Height (in.) | 9-10.5 |
| Loading Capacity at 20 psig | 2,250 lbsf |
| Loading Capacity at 60 psig | 6,750 lbsf |
| Loading Capacity at 90 psig | 10,125 lbsf |
| Maximum Diameter | 15.4 |
| Minimum Jounce Height (in.) | 5.95 |
| Natural Frequency | Hz |
| Operating Temperature (Deg C) | 57 to -54 |
