| Price | 30-50usd/m |
| MOQ | 10m |
| Delivery Time | 5-8days |
| Brand | Anping XinLu Wire Mesh Products Co.,Ltd |
| Place of Origin | Anping County, Hebei Province, China |
| Certification | ISO |
| Model Number | XL - V Wire Screen Pipe - 02 |

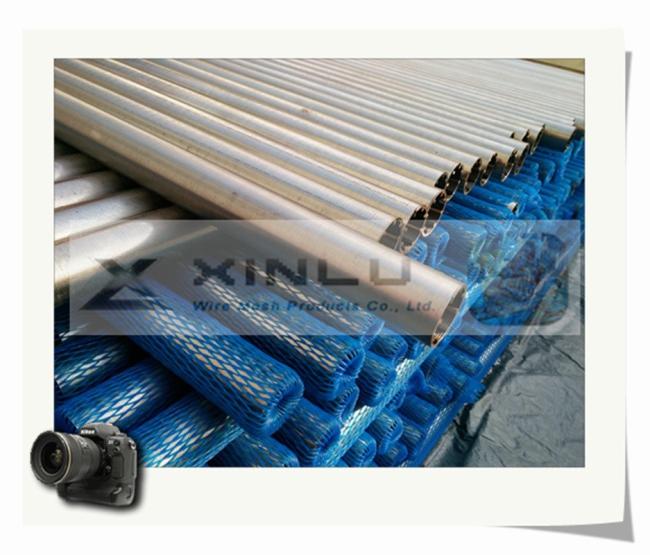

| Packaging Details | carton, Inside with plastic film and outside with woven bag,wooden box, pallet |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 1000m/20days |
| Place of Origin | Anping County, Hebei Province, China | Support | 2X3mm（）25)Q |
| welded type | v wire /wedge wire wrapped welding, winding welded | Packaging Details | carton, Inside with plastic film and outside with woven bag,wooden box, pallet |
| Material | SS 304 SS316L | Model Number | XL - V Wire Screen Pipe - 02 |
| Supply Ability | 1000m/20days | Certification | ISO |
| Brand Name | Anping XinLu Wire Mesh Products Co.,Ltd | Payment Terms | T/T, L/C, Western Union |
| Wedge wire | 0.78x1.5mm (10SS), 1X2mm(12SS） | Price | 30-50usd/m |
| Delivery Time | 5-8days | another name | v wire slot tube, johnson screen pipe, wedge wire screen pipe, water well screen tube, wire wrapped screen pipe, stainless steel filter pipe |
| Support Number | 8pcs | Minimum Order Quantity | 10m |
| Round | perfect roundness, pure round | End | welded rings, thread, flange or end cap |

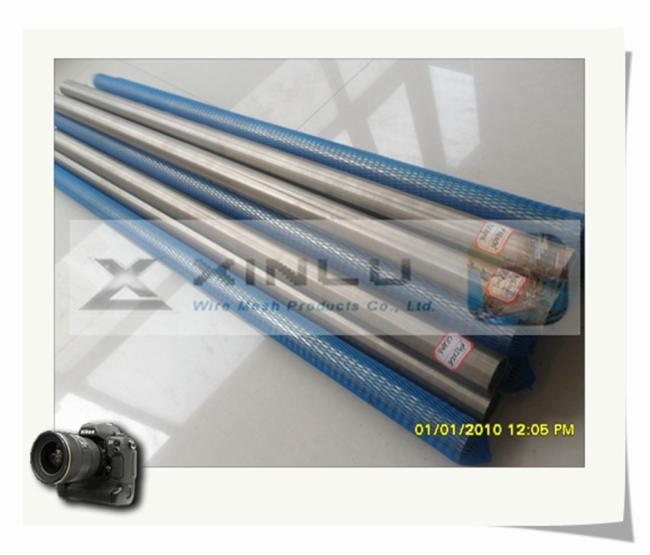

Ss304 Pure Round Winding Slot V Wire Screen Tube, Solid Liquid Separation Filter Pipe
Wedge wire screen filter also be named Wound screen, Wire wrapped screen, Johnson screen, Wire screen pipe,
Well screen tube,Slotted tube.

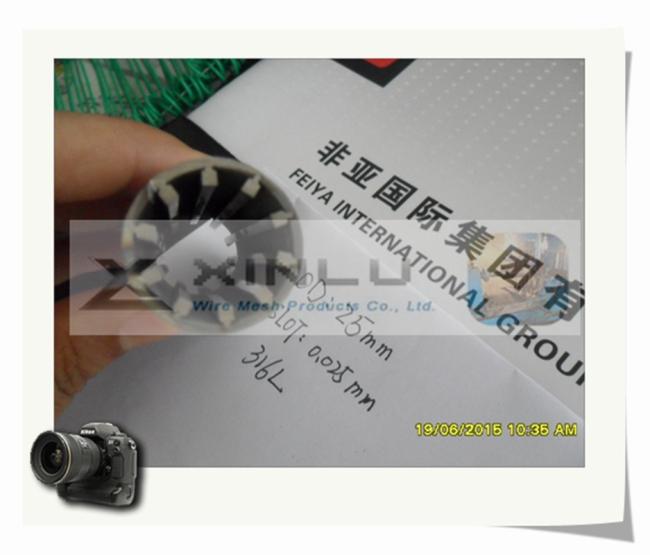

Winding v wire / wedge wire screen tube is made of support wire and v-shaped wire around welding, support wire and V-shaped wire around resistance welding, with high welding strength, uniform gap, strong corrosion resistance, effective filtration area, good permeability, simple structure, belongs to the surface filtration form. As a filter element for various forms of automatic filters (such as automatic backwash, brush self-cleaning) for fluid filtration in various industries, the filtration accuracy is 20-800μm.
The finished products have the characteristics of high strength, high hardness, wear and corrosion resistance, uniform gap, good seepage, easy to clean and reverse cleaning.
All kinds of stainless steel filter equipment, filter, defoamer, filter plate, filter plate and other complete set of filter equipment accessories products.
We can design and produce various specifications and models according to the needs of users, and also accept the processing of supplied materials.
| Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 1000mm also achieved upon request. |
|
| Material: | Stainless steel 304, 304L, 316L ,321, etc. | |
| Length | Upto 6 meters | |
| Diameter | 29-1300mm | |
| Screen ends | Plain beveled ends, male/female threaded, flange, close up,etc | |
| Other sizes available on request. | ||
|
Advantage |
Reduce energy consumption and increase water flow. Reduce erosion of entry surfaces and increase well life. Allow a uniform and efficient well development. Reduce significantly potential pump damage and subsequent maintenance costs |
|
3. V Wire-Wrapped Welding Screen Tubes Flow Type
4. Profile Wire an Support Wire Size of V Wire-Wrapped Welding Screen Tubes
| Profile Wire | Width | Height | Material |
| 10SR | 0.75mm | 1.5mm | 304 316 316L,etc |
| 12SR | 1.0mm | 2.0mm | 304 316 316L,etc |
| 18SR | 1.5mm | 2.9mm | 304 316 316L,etc |
| Profile Wire | Width | Height | Material |
| Q22 | 2.0mm | 2.3mm | 304 316 316L,etc |
| Q25 | 2.0mm | 3.0mm | 304 316 316L,etc |
5 . V Wire-Wrapped Welding Screen Tubes Product Instruction
V Wire-Wrapped Welding Screen Tubes Struction: Xinlu company Slot tubes widely used in beverage / beer filtration, papermaking industry, industrial waste water treatment, oil, water desalination, etc. This slot tube is the most widely used in all kinds of filter screens.

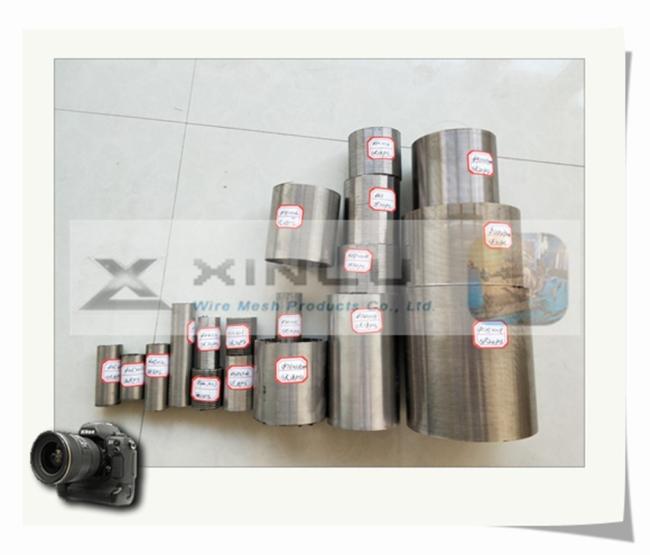

6 . V Wire Slot Tube Specification
|
No. |
Type |
OD mm |
ID mm |
Support Wire Number |
Filter Direction |
|
1 |
XLD 25.4 |
25.4 |
18.6 |
12 |
FOTI |
|
2 |
XLD 33 |
33 |
24 |
8 |
FOTI |
|
3 |
XLD 37 |
37 |
28 |
8 |
FOTI |
|
4 |
XLD 40 |
40 |
31 |
8 / 10 |
FOTI/ FITO |
|
5 |
XLD 45 |
45 |
36 |
10 / 12 |
FOTI/ FITO |
|
6 |
XLD 48 |
48 |
38 |
12 |
FOTI/ FITO |
|
7 |
XLD 60 |
60 |
51 |
12 |
FOTI/ FITO |
|
8 |
XLD 70 |
70 |
61 |
12 / 18 |
FOTI/ FITO |
|
9 |
XLD 85 |
85 |
76 |
18 |
FOTI/ FITO |
|
10 |
XLD 110 |
110 |
101 |
24 |
FOTI/ FITO |
|
11 |
XLD 120 |
120 |
111 |
24 |
FOTI/ FITO |
Remarkes
1. Make Tubes with different material according to user requirements
2. Slot should be bigger than 0.025mm and less than 2500mm long, OD shoule be smaller than 220mm
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
