| Price | USD 30/KG |
| MOQ | 30kg |
| Delivery Time | 10～15 Working days |
| Brand | CUBERYLLIUM® |
| Place of Origin | China |
| Certification | ISO ROHS |
| Model Number | CuBe2 |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50T/Month |
| Place of Origin | China | Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| CUBERYLLIUM® Grade | CUBERYLLIUM® 172 | Model Number | CuBe2 |
| Supply Ability | 50T/Month | Typical Application | Coil springs |
| Certification | ISO ROHS | Name | CuBe2 Wires |
| Surface | Bright | Shape for available | Rod or Coil Wire |
| Brand Name | CUBERYLLIUM® | Payment Terms | L/C, T/T, Western Union |
| Price | USD 30/KG | Delivery Time | 10～15 Working days |
| ASTM | ASTM B197 | Diameter Range | 0.4mm |
| Minimum Order Quantity | 30kg | Temper | A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04) |
| Package | in Coils | Application | For Electrical Indsutry |
CuBe2 Wires 0.4mm Diameter ASTM B197 Standard With Good Properties of Beryllium
| Commodity | CuBe2 Wires |
| Grade | CuBe2, ASTM B196 |
| Dia. | 0.4mm |
| Length | we also could cut any length according customers' demand |
| Surface | Bright, Polished |
| Package | Pack in woodencase |
| State | TB00 |
| Product Brand | CUBERYLLIUM® |
Introduction of CuBe2 Alloys:
CuBe2- – C17200 (CDA 172) Beryllium Copper is the most normally used Copper Beryllium compound and is eminent for its most elevated quality and hardness contrasted with business copper composites. We are one of the biggest suppliers, manufacturer, exporter of beryllium copper wire. Beryllium copper wire widely used in the electrical industry, fasteners, and other various industries such as the electrochemical industry, pumps, springs, etc.. C17200 contains appr. 2% of beryllium and accomplishes its definitive elasticity can surpass 200 ksi, while the hardness approaches Rockwell C45. In the meantime, the electrical conductivity is at least 22% IACS in the completely matured condition.C17200 likewise displays remarkable protection from stress unwinding at raised temperatures. Cuberyllium supplies beryllium copper wire, CuBe2 beryllium copper wire, UNS.C17200 beryllium copper wire as per customer’s requirements.
Chemical Composition of CuBe2 Alloy:
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical
Physical
Properties
of CuBe2
Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of CuBe2 Wires:
| Alloy | Temper (*) | Heat Treatment | Tensile Strength Mpa | Elongation percent | Electrical Conductivity percent IACS |
|
CUBERYLLIUM 172 |
A | / | 400～580 | 30-60 | 15-19 |
| (TB00) | |||||
| 1/4 H | / | 570～795 | 3~25 | 15-19 | |
| (TD01) | |||||
| 1/2 H | / | 710～930 | 2~15 | 15-19 | |
| (TD02) | |||||
| 3/4 H | / | 840～1070 | 2~8 | 15-19 | |
| (TD03) | |||||
| H | / | 915～1140 | 1~6 | 15-19 | |
| (TD04) | |||||
|
CUBERYLLIUM 172 |
AT | 3 hr 315℃ | 1050~1380 | 3 min | 22-28 |
| (TF00) | |||||
| 1/4 HT | 2 hr 315℃ | 1150~1450 | 2 min | 22-28 | |
| (TH01) | |||||
| 1/2 HT | 1.5hr 315℃ | 1200~1480 | 2 min | 22-28 | |
| (TH02) | |||||
| 3/4 HT | 1.0 hr 315℃ | 1250~1585 | 2 min | 22-28 | |
| (TH03) | |||||
| HT | 1.0hr 315℃ | 1300~1585 | 1 min | 22-28 | |
| (TH04) |

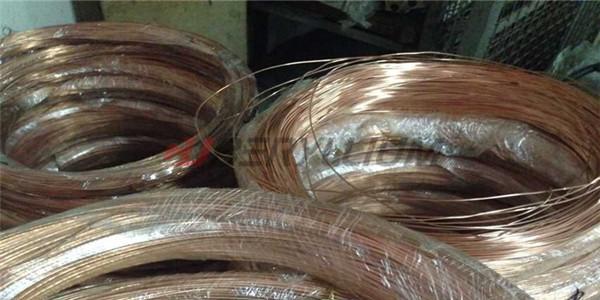

Product Photo:
Process of Copper Beryllium Wires:
FAQ:
Q1:Could
you
produce
Beryllium
Copper
strip
by
Mill
Hardened
process.
A1:Yes,
we
could
produce
AM(TM00),
1/2HM(TM01).HM(TM04)
XHM(TM06)
XHMS(TM08).,we
are
the
only
factory
could
do
harden
strip
in
China.
Q2:
What’s
the
advantages
the
Beryllium
Copper
of
CUBERYLLIUM®.
A2:
1:
The
Biggest
Coil
weight
could
be
reach
1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace.
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
