| Price | 20USD |
| MOQ | 100kgs |
| Delivery Time | Usually 10-15 days |
| Brand | CUBERYLLIUM |
| Place of Origin | China |
| Certification | ISO,SGS |
| Model Number | C15725 RWMA Class 22 |
| Packaging Details | Packed into wooden case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
| Place of Origin | China | Machining Property | Good |
| Density g/cm³ | 8.86 | Packaging Details | Packed into wooden case |
| Grade | C15725 RWMA Class 22 | Specification | Custom Diameter & Sizes, Random Mill Lengths |
| Model Number | C15725 RWMA Class 22 | Available Shape | Rod, Bar, Wire, Flat prodcuts |
| Supply Ability | 200T/Month | Cu(Min) | Standard |
| Certification | ISO,SGS | Name | Seam Welding Wheels Copper Rods |
| Brand Name | CUBERYLLIUM | Payment Terms | L/C, T/T, Western Union |
| Safe Handling | No special health risk | Advantage | With high conductivity |
| Price | 20USD | Delivery Time | Usually 10-15 days |
| Minimum Order Quantity | 100kgs | Export to | All over the world |
Seam Welding Wheels Copper Rods C15725 Dispersion Strengthened Copper Alloy
Product Normal Description:
| Product Name | Seam welding wheels copper rods |
|---|---|
| Model No. | C15725 RWMA Class 2 |
| Product Specification: | Custom specification is available upon request. |
| Available Products: | Round rods, bars, wire, flat products |
| Delivery Time: | Usually within 10~15 days |
| Package: |
Packed in woodencases |
| Brand Name: | CUBERYLLIUM® |
About CUBERYLLIUM®:
Hangzhou Cuberyllium Metal Technology Co.,Ltd. specialized in supplying beryllium copper alloys, high copper alloys, casting copper alloys, copper foil and other copper alloys. Our products have broadly been used in resistance welding, plastic injetion mold, aviation, shipbuilding, military industry, metallurgy, electronics industry and so on. We strive to offer high quality with competitive price due to our advanced technology and equipment.
Chemical Composition of C15725 Dispersion Strengthened Copper Alloy:
Product Grade: CUBERYLLIUM ®-C15725 (RWMA Class 22)
| Aluminum | 0.25% by wt. as Al₂O₃ |
| Cu: | Balance |
Typical Physical Properties of C15725 Dispersion Strengthened Copper Alloy:
| Melting Point | 1083°C |
| Density | 8.86 g/cm3 at 20°C |
| Electrical Conductivity (σ) | 0.504 μ Ω-cm at 20°C |
| Thermal Conductivity (K) | 344 W/m/K at 20°C |
| Electrical Resistivity (ρ) | 1.98 μ Ω-cm at 20°C |
| Coefficient of Thermal Expansion | 16.6 μm/m/°C (20-150°C) |
| Modulus of Elasticity (Tension) (λ) | 130 Gpa |
Mechanical Properties of C15725 Dispersion Strengthened Copper Alloy:
| Shapes | Thickness or Dia. | Temper | Tensile Strength | Yield Strength | Elongation | Hardness | |||
| mm | in | or Condition | MPa | ksi | MPa | ksi | % | HRB | |
|
Flat products |
10 | 0.400 | As Cons.* | 434 | 63 | 345 | 50 | 21 | 72 |
| 2.3 | 0.090 | CW 78% | 586 | 85 | 544 | 79 | 8 | 83 | |
| 0.15 | 0.006 | CW 98% | 675 | 98 | 613 | 89 | 6 | - | |
|
Plate |
Up to 130 | 5.0 | As Cons. | 413 | 60 | 296 | 43 | 19 | 68 |
| 25 | 1.0 | CW 60% | 496 | 72 | 441 | 64 | 9 | - | |
| 16 | 0.625 | CW 75% | 524 | 76 | 467 | 68 | 9 | - | |
|
Rod |
38 | 1.5 | As Cons. | - | 64 | - | 52 | 24 | 73 |
| 6.4 | 0.25 | As Drawn | 551 | 80 | 531 | 77 | 14 | 76 | |
| Rounds | Up to 760 | 30 | As Cons. | 413 | 60 | 296 | 43 | 19 | 68 |
Applications of C15725 Dispersion Strengthened Copper Alloy:
Cuberyllium C15725(RWMA Class 22) is primarily designed for applications requiring high electrical and thermal conductivities along with good elevated temperature strength. Cuberyllium C15725 has excellent cold working characteristics and can be drawn into fine wire or rolled into thin sheets.
| Recommended for: | Seam welding wheels |
| Welding tips | |
| Electrical motor and generator components | |
| Electrical relay systems components | |
| Vacuum tube components | |
| Microwave tube components | |
| X-ray tube components | |
| Hybrid circuit packages | |
| High performance leadframes | |
| Medical device components | |
| Heat exchangers | |
| Power cables | |
| High power magnet windings | |
| Resistance welding electrodes and back-up bars |
For applications requiring brazed joints and /or extended high temperature exposure in hydrogen-containing atmospheres or vacuum, low Oxygen is availbale and recommended.

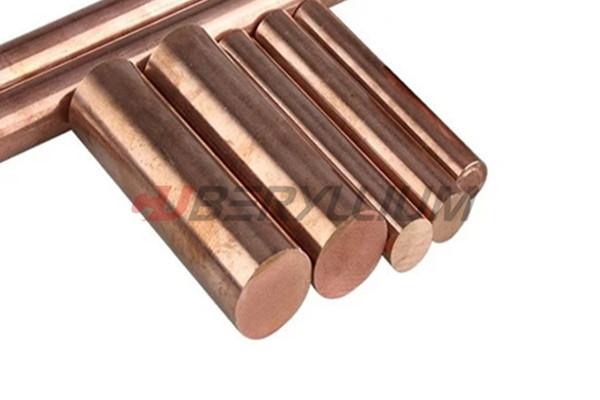

Product Photos:
