| Price | 20USD |
| MOQ | 50kgs |
| Delivery Time | Usually 10-15 days |
| Brand | CUBERYLLIUM |
| Place of Origin | China |
| Certification | ISO,SGS |
| Model Number | UNS.C18150 |
| Packaging Details | Packed into wooden case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
| Place of Origin | China | Machining Property | Good |
| Density g/cm³ | 8.89 | Packaging Details | Packed into wooden case |
| Grade | UNS.C18150 | Model Number | UNS.C18150 |
| Supply Ability | 200T/Month | Cu(Min) | Standard |
| Certification | ISO,SGS | Name | Chromium Zirconium Copper Alloy Copper Rods |
| Brand Name | CUBERYLLIUM | Payment Terms | L/C, T/T, Western Union |
| Dia. | 5mm~300mm | Safe Handling | No special health risk |
| Advantage | With high electrical conductivity | Price | 20USD |
| Delivery Time | Usually 10-15 days | Length | 20~3000mm |
| Minimum Order Quantity | 50kgs | Export to | All over the world |
UNS.C18150 Chromium Zirconium Copper Alloy Copper Rods With High Electrical Conductivity
Product Normal Description:
| Product Name | Chromium Zirconium Copper Alloy Copper Rods |
|---|---|
| Grade: | UNS.C18150 |
| Product Specification: | we could provide beryllium copper alloy according customers' requirement. |
| Delivery Time: | Usually within 10~15 days |
| Package: |
Packed in woodencases |
| Product Brand: | CUBERYLLIUM® |
UNS.C18510 chromium zirconium copper alloys is a high conductivity, high strength copper alloyed with chromium.
C18510 is heat treatable, and resists softening in service up to temperatures of 500°C. It is used for spot and seam welding electrodes, plastic mould components and other applications requiring excellent electrical and thermal conductivity and high strength and wear resistance at high temperatures. C18510 is heat treated to high strength, and requires no further heah treatment. It meets the requirements of RWMA (Resistance Welder Manufacturers Association) Group A, Class 2.
C18150 when used for spot and seam welding electrodes can provide less sticking and resists deformation longer than copper-chromium (C18200) in some specific situations. C18150 can be used instead of C18200 in any structural or current carrying application.
C18150 can be used to spot weld: cold rolled steel, hot rolled steel, nickel plated steel, zinc and zinc-aluminium coated steel (galvanised and zincalume), nickel alloys, Monel, nickel silver, stainless steel.
Equal Standards of UNS.C18150 Chromium Zirconium Copper Alloy:
European Standards: CuCr1Zr, DIN 2.1293, CW 106C to EN, RWMA Class 2
Note:
ASTM: American Society for Testing and Materials
SAE:
Society
of
Automotive
Engineers
RWMA:
Resistance
Welder
Manufacturers'
Association
Note:
Unless
otherwise
specified,
material
will
be
produced
to
ASTM
&
RWMA.
Chemical Composition of UNS.C18150 Chromium Zirconium Copper Alloy:
Product Grade: CUBERYLLIUM ®-815 (UNS.C18150)
| Cr | 0.50-1.50% |
| Zr: | 0.05-0.25% |
| Cu: | Balance |
| Note: Copper plus additions equal 99.7% minimum. | |
Typical Physical Properties of UNS.C18150 Chromium Zirconium Copper Alloy:
| Metric Units | Imperial Units | |
|---|---|---|
| Density | 8.89 gm/cm³ @ 20°C | 0.321 lb/in³ @ 68°F |
| Specific Gravity | 8.89 | 8.89 |
| Melting Point (Liquidus) | 1080°C | 1976°F |
| Melting Point (Solidus) | 1070°C | 1958°F |
| Coefficient of Thermal Expansion | 16.45 x 10 -6 / °C (20-300°C) | 9.5 x 10 -6 / °F (68-392°F) |
| Themal Conductivity | 323.9 W/m. °K @ 20°C | 187.0 BTU/ft²/ft/hr/°F @ 68°F |
| Electrical Conductivity | 0.464 MegaSiemens/cm @ 20°C | 80% IACS@ 68°F |
| Modulus of Elasticity (tension) | 117,200 MPa | 17,000ksi |
Note:
1: the units are based upon US Customary.
2: the typical physical properties apply to age hardened products.
| Typical Uses For UNS.C18150 Chromium Zirconium Copper Alloy: | |
| Industrial: | Welding Wheels, Tips and Rod extensions for resistance seam and spot welding |
| Electrical Industry: | Resistance Welding Electrodes, Circuit Breaker Switches. |
| Consumer: | Rod Extensions, Pencil-type, Light Soldering Guns, Tip |

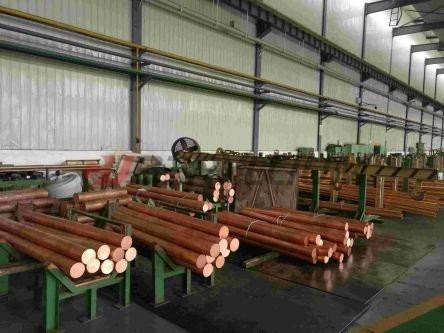

Product Photos:
