| Price | 30USD |
| MOQ | 50 |
| Delivery Time | 10~15days |
| Brand | CUBERYLLIUM® |
| Place of Origin | China |
| Certification | ISO,SGS |
| Model Number | ASTM B196 Grade( C17200) |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
| Elestic Modulus | 131Gpa | Place of Origin | China |
| Machining Property | Good | Melting Point(solidus) | 870℃ |
| Size | Custom Diameter, Random Mill Lengths | Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| CUBERYLLIUM® Grade | CUBERYLLIUM® 172 | Standard | ASTM B196 |
| Model Number | ASTM B196 Grade( C17200) | Supply Ability | 200T/Month |
| Certification | ISO,SGS | Name | Beryllium Copper Rod |
| Surface | Bright/Polished | Brand Name | CUBERYLLIUM® |
| Payment Terms | L/C, T/T, Western Union | Safe Handling | No special health risk. |
| Electrical Conductivity | 22-28% IACS | Price | 30USD |
| Delivery Time | 10~15days | State | A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04) |
| Minimum Order Quantity | 50 | Application | For Low Maintenance Bearings And Bushings |
| Flatness | Good |
ASTM B196 Grade( C17200) Beryllium Copper Rod 25mmx1m With Bright Surface
Product Normal Description:
Product Name: Beryllium copper rod
Grade: ASTM B 196 (C17200)
Standard: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
Product Size: 25mmx1m
State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Typical Application: used for low maintenance bearings and bushings
Product Brand: CUBERYLLIUM®
International Specification of C17200 Beryllium Copper Rods:
Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by ASTM.
ASTM B-196(C17200) Beryllium Copper Alloy Chemical Composition:
| Grade | Be | Co+Ni | Co+Ni+Fe | Cu |
| C17200 | 1.80-2.00% | 0.20% Min | 0.60% Max | Balance |
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of ASTM B-196(C17200) Beryllium Copper Alloy:
| Grade | Density (g/cm3) | Density before age hardening (g/cm3) | Elastic Modulus (kg/mm2 (103)) | Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) | Thermal Conductivity (cal/(cm-s-°C)) | Melting Range (°C) |
| C17200 | 8.36 | 8.25 | 13.40 | 17 x 10-6 | 0.25 | 870-980 |
Mechanical and Electrical Properties of ASTM B-196(C17200) Beryllium Copper Rod:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
| 1/2H(TB04) | 5~40 | / | 550~700 | 10 | 15~19 | ＞B78 |
|
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 |
＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 |
C35~44 |
Fasterners Applications of ASTM B-196(C17200) Beryllium Copper Alloy:
| Product Category | Product | Reason Category | Reason |
| Fasteners | Roll Pins | Corrosion Resistance | Corrosion Resistance |
| Roll Pins | Mechanical Properties | Fatigue Resistance | |
| Roll Pins | Mechanical Properties | Very High Strength | |
| Screws | Corrosion Resistance | Corrosion Resistance | |
| Screws | Creep Properties | Creep Resistant | |
| Screws | Mechanical Properties | Very High Strength | |
| Screws | Softening Resistance | Resistance to Thermal Softening | |
| Washers | Corrosion Resistance | Corrosion Resistance | |
| Washers | Mechanical Properties | Very High Strength |

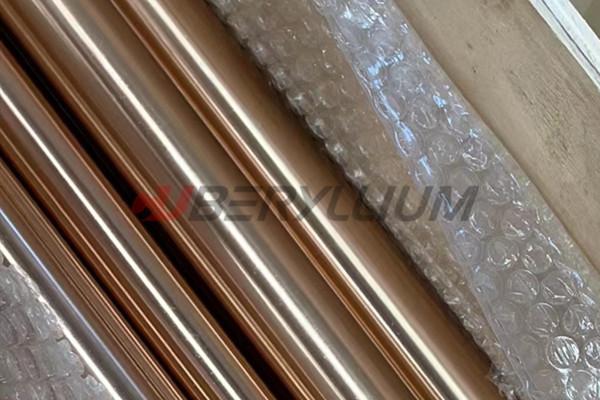

Product Photos:
FAQ:
Q1:
Could
you
produce
Beryllium
Copper
strip
by
Mill
Hardened
process.
A1:
Yes,
we
could
produce
AM(TM00),
1/2HM(TM01).HM(TM04)
XHM(TM06)
XHMS(TM08).,we
are
the
only
factory
could
do
harden
strip
in
China.
Q2:
What’s
the
advantages
the
Beryllium
Copper
of
CUBERYLLIUM®.
A2:
1:
The
Biggest
Coil
weight
could
be
reach
1200kg/Coil
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace.
A3:
Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
