| Price | USD 30～50/KG |
| MOQ | 30kg |
| Delivery Time | 10～15 Working days |
| Brand | CUBERYLLIUM® |
| Place of Origin | China |
| Certification | ISO ROHS |
| Model Number | M25, C17300, Cube2Pb |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
| Place of Origin | China | Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Product Name | Beryllium Copper Rods M25, C17300, Cube2Pb | CUBERYLLIUM® Grade | CUBERYLLIUM®-173 |
| Standard | ASTM B196 | Model Number | M25, C17300, Cube2Pb |
| Supply Ability | 50T/Month | Typical Application | Electrical Industry Application |
| Certification | ISO ROHS | Surface | Bright, Polish |
| Shape for available | Rod&Bar | Brand Name | CUBERYLLIUM® |
| Payment Terms | L/C, T/T | Brand | CUBERYLLIUM® |
| Price | USD 30～50/KG | Delivery Time | 10～15 Working days |
| Length | According customers' requirement | Minimum Order Quantity | 30kg |
| Temper | TD04 | Diameter | According customers' requirement |
Beryllium Copper Rods M25, C17300, Cube2Pb For Electrical Industry Application
Product Description:
| Product Name | Beryllium Copper Rods |
| Grade | M25, C17300, CuBe2Pb |
| End Product Form | Rods/ Bars |
| Standard | ASTM B196 |
| State of product | TD04 |
| Processing | Seamless / Welding |
| Feature | With high strength and high conductivity |
| Specification |
Dia. and Length: according customers' requirement |
CUBERYLLIUM® maintains an inventory of beryllium copper alloys, including beryllium copper strips, beryllium copper rods/bars, beryllium copper wires and so on.
The normal grades of beryllium copper alloy are C17200 and C17300, with high strength and moderate conductivity. C17200 & C17300 can be purchased in the solution annealed or cold worked tempers and can be easily formed or machined. A low-temperature heat treatment (600 degrees for 2-3 hours ) produces additional maximum strenght and hardness.
The Features of Beryllium Copper Alloy M25, C17300, Cube2Pb:
1, Free-Machining Beryllium
2, Used when formation of small chips during machining is desirable
3, Same mechanical & physical properties of alloy 172 (C17200)
Chemical Composition of C17300(CuBe2Pb) Beryllium Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium |
Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Mechanical and Electrical Properties of C17300(CuBe2Pb) Beryllium Copper Rod:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
|
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 |
＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

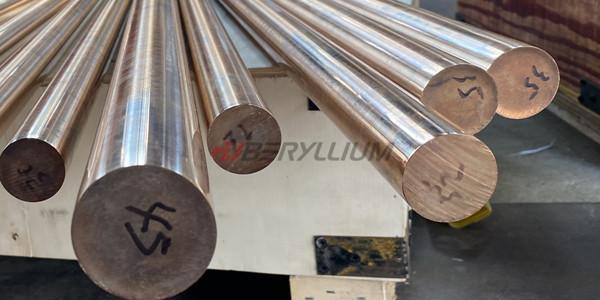

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
We could provide rods/bars according to your specifications.
Plz contact our sales staff to inquire on your requirements of M25, C17300 CuBe2Pb Beryllium Copper Alloys.
