| Price | 30USD |
| MOQ | 200 |
| Delivery Time | 10~15days |
| Brand | CUBERYLLIUM |
| Place of Origin | China |
| Certification | ISO,SGS |
| Model Number | UNS C17410 |
| Packaging Details | in coil packed into wooden case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
| Place of Origin | China | Max Width | 305mm |
| Machining Property | Good | Packaging Details | in coil packed into wooden case |
| Product Name | UNS C17410 Beryllium Bronze Tapes | CUBERYLLIUM® Grade | CUBERYLLIUM® 741 |
| Standard | ASTM B768, B888 | Model Number | UNS C17410 |
| Supply Ability | 200T/Month | Typical Application | For Connector Application |
| Certification | ISO,SGS | Thinest Thick. | 0.05mm |
| Surface | Bright, Polished | Brand Name | CUBERYLLIUM |
| Payment Terms | L/C, T/T, Western Union | Safe Handling | No special health risk. |
| Price | 30USD | Delivery Time | 10~15days |
| Length | 200mm, 500mm, 1000mm or As Required | State | 1/2 HT(TH02), HT(TH04) |
| Minimum Order Quantity | 200 | Available Shapes | Strip, Sheet |
| Max Coil Wt. | 2T |
High Electrical Conductivity UNS C17410 Beryllium Bronze Tapes For Switch Parts
Product Name: Beryllium Bronze Tapes
Grade: UNS C17410
Size: Thickness 0.8mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Product Informance of CUBERYLLIUM® Company:
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-741 also named -C17410 Copper alloy with low beryllium content. Alloy C17410 Copper Beryllium Strip is a mill hardened alloy designed for use in the automotive, applicance and telecommunication markets.
If provides high yield and fatigue strength with high electrical conductivity and good resistance to stress relaxation.
Chemical Composition of UNS C17410 Beryllium Bronze Alloys:
| Elements | ||||||
|---|---|---|---|---|---|---|
| Cu | Fe | Al | Be | Co | Si | |
| Min (%) | 0.15 | 0.35 | ||||
| Max (%) | Rem | 0.2 | 0.2 | 0.50 | 0.60 | 0.2 |
| (1) Cu + Sum of Named Elements 99.5% Min. | ||||||
| (2) Cu value includes Ag. | ||||||
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of UNS C17410 Beryllium Bronze Tapes:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
| Related material specifications of UNS C17410 Beryllium Bronze Alloys | |
| Strips | ASTM B768, B888 |
| Sheets | ASTM B768, B888 |
Typical
Physical
Properties
of
UNS
C17410
Beryllium
Bronze
Alloys:
| Elastic Modulus | Melting Point (Solidus) | Electrical Conductivity/ Resistivity |
Density |
Thermal Expansion Coefficient | Thermal Conductivity (25 °C) |
| 138 GPa | 1020 °C | 2.9-3.8 μΩcm | 8.80 g/cm3 | 17.6 x 10-6 m/m °C | 230 W/ m K |
MECHANICAL PROPERTIES of UNS C17410 Beryllium Bronze Tapes:
| 0.2% Offset Yield Strength (min) | Ultimate Tensile Strength (min) | Elongation (min) | ||||
| Temper | Hardness | |||||
| ksi | MPa | ksi | MPa | % | HV | |
|
1/2HT(TH02) |
80 - 100 | 550 - 690 | 95 - 115 | 665 - 790 | 10~20 | 180 - 230 |
| HT(TH04) | 100 - 120 | 690 - 830 | 110 - 130 | 760 - 895 | 7~17 | 210 - 278 |

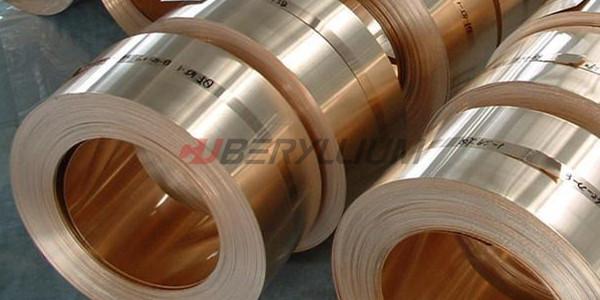

Product Photo:
Health and Safety
Processing beryllium-containing alloys poses a health risk if safe practices are not followed. Inhalation of airborne beryllium can cause serious lung diseases in some individuals. Occupational safety and health regulatory agencies worldwide have set mandatory limits on occupational respiratory exposures. Read and follow the guidance in the Safety Data Sheet (SDS) before working with this material.
For questions on safe practices for beryllium-containing alloys, contact us by e mail at info@cuberyllium.com
FAQ:
Q1:Could
you
produce
Beryllium
Copper
strip
by
Mill
Hardened
process.
A1:Yes,
we
could
produce
AM(TM00),
1/2HM(TM01).HM(TM04)
XHM(TM06)
XHMS(TM08).,we
are
the
only
factory
could
do
mill
harden
strip
in
China.
Q2:
What’s
the
advantages
the
Beryllium
Copper
of
CUBERYLLIUM®.
A2:
1:
The
Biggest
Coil
weight
could
be
reach
1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace.
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
