| Price | 30USD |
| MOQ | 200 |
| Delivery Time | 10~15days |
| Brand | CUBERYLLIUM |
| Place of Origin | China |
| Certification | ISO,SGS |
| Model Number | CDA174 (UNS.C17410) |
| Packaging Details | in coil packed into wooden case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
| Place of Origin | China | Max Width | 305mm |
| Machining Property | Good | Packaging Details | in coil packed into wooden case |
| Product Name | CDA174 (UNS.C17410) Copper Alloy Strip | CUBERYLLIUM® Grade | CUBERYLLIUM® 741 |
| Standard | ASTM B768, B888 | Model Number | CDA174 (UNS.C17410) |
| Supply Ability | 200T/Month | Typical Application | Electrical Applications or Engineering Applications |
| Certification | ISO,SGS | Thinest Thick. | 0.05mm |
| Surface | Bright, Polished | Brand Name | CUBERYLLIUM |
| Payment Terms | L/C, T/T, Western Union | Safe Handling | No special health risk. |
| Price | 30USD | Delivery Time | 10~15days |
| Length | 200mm, 500mm, 1000mm or As Required | State | 1/2 HT(TH02), HT(TH04) |
| Minimum Order Quantity | 200 | Available Shapes | Strip, Sheet |
| Max Coil Wt. | 2T |
Beryllium Material CDA174 (UNS.C17410) Copper Alloy Strip With Excellent Hot Working Ability
Product Name: Beryllium material copper alloy strip
Grade: CDA174 (UNS.C17410)
Size: 0.25mmx200mm, Or as customers' requirement
State: 1/2 HT(TH02), HT(TH04)
Chemical Composition of CDA174 (UNS.C17410) Copper Alloy:
| Element | Content (%) |
|---|---|
| Cobalt, Co | 0.35-0.60 |
| Silicon, Si | 0.20 |
| Aluminum, Al | 0.20 |
| Iron, Fe | 0.20 |
| Beryllium, Be | 0.15-0.50 |
| Copper, Cu | Balance |
Forms Available
Alloy 174 mill hardened strip is available in widths ranging from 1mm~300mm and in thicknesses ranging from 0.02 to 2.5mm.
Typical application of CDA174 (UNS.C17410) Copper Alloy Strips:
Bearings
Plastic molds
Welding electrodes
Current-carrying springs
Corrosioin resistant components
Precision screw machined parts
Connectors for appliances and consumer electronics
| Related material specifications of CDA174 (UNS.C17410) Copper Alloy | |
| Strips | ASTM B768, B888 |
| Sheets | ASTM B768, B888 |
Typical
Physical
Properties
of
CDA174
(UNS.C17410)
Copper
Alloy:
| Elastic Modulus | Melting Point (Solidus) | Electrical Conductivity/ Resistivity |
Density |
Thermal Expansion Coefficient | Thermal Conductivity (25 °C) |
| 138 GPa | 1020 °C | 2.9-3.8 μΩcm | 8.80 g/cm3 | 17.6 x 10-6 m/m °C | 230 W/ m K |
MECHANICAL PROPERTIES of CDA174 (UNS.C17410) Copper Alloy Strip:
| 0.2% Offset Yield Strength (min) | Ultimate Tensile Strength (min) | Elongation (min) | ||||
| Temper | Hardness | |||||
| ksi | MPa | ksi | MPa | % | HV | |
|
1/2HT(TH02) |
80 - 100 | 550 - 690 | 95 - 115 | 665 - 790 | 10~20 | 180 - 230 |
| HT(TH04) | 100 - 120 | 690 - 830 | 110 - 130 | 760 - 895 | 7~17 | 210 - 278 |

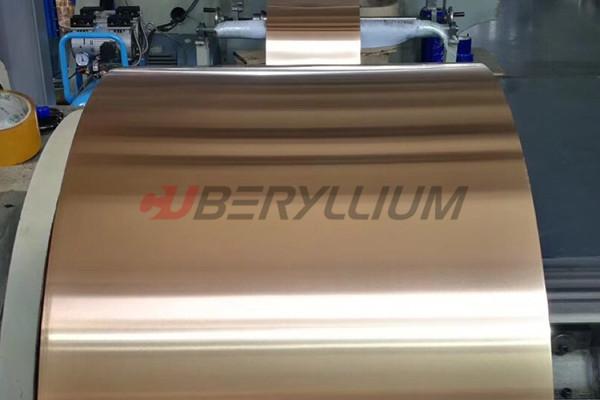

Product Photo:
FAQ:
Q1:Could
you
produce
Beryllium
Copper
strip
by
Mill
Hardened
process.
A1:Yes,
we
could
produce
AM(TM00),
1/2HM(TM01).HM(TM04)
XHM(TM06)
XHMS(TM08).,we
are
the
only
factory
could
do
mill
harden
strip
in
China.
Q2:
What’s
the
advantages
the
Beryllium
Copper
of
CUBERYLLIUM®.
A2:
1:
The
Biggest
Coil
weight
could
be
reach
1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace.
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
