| Price | USD 30～50/KG |
| MOQ | 30kg |
| Delivery Time | 10～15 Working days |
| Brand | CUBERYLLIUM® |
| Place of Origin | China |
| Certification | ISO ROHS |
| Model Number | C17300 |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
| Place of Origin | China | Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Product Name | C17300 Free-Cutting Beryllium Copper Rod | CUBERYLLIUM® Grade | CUBERYLLIUM®-173 |
| Standard | ASTM B196, QQ-C-530 | Model Number | C17300 |
| Supply Ability | 50T/Month | Typical Application | Electrical and Industrial |
| Density | 8.36g/cm3 | Certification | ISO ROHS |
| Surface | Bright, Polish | Shape for available | Rod&Bar |
| Brand Name | CUBERYLLIUM® | Payment Terms | L/C, T/T |
| Brand | CUBERYLLIUM® | Price | USD 30～50/KG |
| Delivery Time | 10～15 Working days | Length | Clients' Requirement |
| State | A(TB00), H(TD04), AT(TF00), HT(TH04) | Minimum Order Quantity | 30kg |
| Diameter | 8-30mm |
C17300 Free-Cutting Beryllium Copper Rod Used Sed In Medium-Strength And High-Conductivity Parts
Product Description:
Name: Free-cutting beryllium copper rod
Grade: C17300
End Product Form: Rods/ Bars
Standard: ASTM B196, QQ-C-530
State of product: A(TB00),H(TD04),AT(TF00),HT(TH04)
Processing: Seamless / Welding
Feature: With high strength and high conductivity
Package: Pack in coil+waterproofing winding film+Drier+Wooden Case
Specification: Length: according customers' requirement
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
Beryllium copper has its reasonable share of common names. You will listen referred to as BeCu, Copper Beryllium, Beryllium Bronze, and Spring Copper. Anytime you hear those terms, they're in reference to Beryllium Copper. Beryllium round bars are accessible as high strength and high conductivity alloys.
CUBERYLLIUM ®-173 also named -C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.
Chemical Composition of C17300 Free-Cutting Beryllium Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium |
Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
| Typical Physical Properties of C17300 Free-Cutting Beryllium Copper Alloys | |
| Coefficient of Thermal Expansion (68-392 °F) | 9.8x10-6 |
| Density lb/in³ | 0.302 |
| Electrical Conductivity % IACS lb/in | 22-28 |
| Melting Point Liquid US | 1,600-1,800 °F (871-982℃) |
| Modulas of Elasticity |
19,000 Ksi (131,000 Mpa) |
| Specific Heat Capacity | 70 °F (20℃) |
| Thermal Conductivity Btu-in/hr-ft²-°F | 60 |
Mechanical and Electrical Properties of C17300 Free-Cutting Beryllium Copper Rod:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
|
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 |
＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

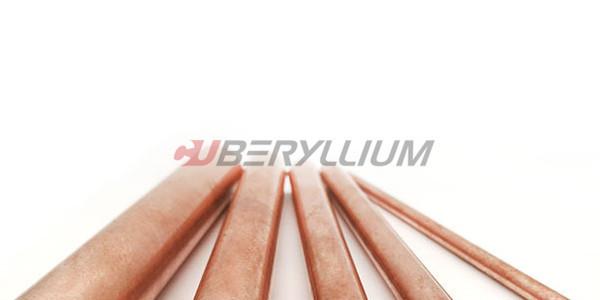

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q2:
How
about
your
payment
terms?
A2:
Generally,
30%
as
deposit
by
T/T,
then
70%
should
be
paid
before
the
delivery.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace?
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
