| Price | 43USD |
| MOQ | 50 |
| Delivery Time | 10~15days |
| Brand | CUBERYLLIUM® |
| Place of Origin | China |
| Certification | ISO,SGS |
| Model Number | C17200 (CuBe2) |
| Packaging Details | in coil packed into wooden case |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
| Place of Origin | China | Machining Property | Good |
| Max Width | 305mm | Packaging Details | in coil packed into wooden case |
| Standard | ASTM B194, SAE J463, J461 | Specification | 0.05mmx50mm, 0.05mmx100mm,0.05mmx150mm |
| Model Number | C17200 (CuBe2) | Supply Ability | 200T/Month |
| Certification | ISO,SGS | Name | CuBe2 Strip C17200 |
| Surface | Bright/Polished | Brand Name | CUBERYLLIUM® |
| Payment Terms | L/C, T/T, Western Union | Heat Treatment of aging | Age 3 hrs at 600°F (315 C). |
| Safe Handling | No special health risk. | Price | 43USD |
| Delivery Time | 10~15days | State | Hard |
| Minimum Order Quantity | 50 | Thinnest Thick. | 0.02mm |
| Application | Microswitch Production | Max Coil Wt. | 2T |
| Flatness | Good |
CuBe2 Strip C17200 Thickness 0.05mm Width 50-150mm Hard State For Microswitch
Product Normal Description:
Product Name: CuBe2 Strip
Grade: C17200
Standard: ASTM B194, SAE J463, J461
Product Specification: 0.05mmx50mm, 0.05mmx100mm,0.05mmx150mm
State: H(TD04)
Typical Application: used for microswitch production
Product Brand: CUBERYLLIUM®
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions.
These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).
We also Supply Master alloy : CuBeryllium-200, CuBeryllium-275, CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Temper Designations of CuBe2/C17200 Copper Alloys (CUBERYLLIUM ®-172):
| CuBeryllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip | ||||||
| Designation | Description |
Tensile
Strength (Mpa) |
Yield Strength 0.2% offset | Elongation Percent |
HARDNESS (HV) |
HARDNESS Rockwell B or C Scale |
Electrical
Conductivity (% IACS) |
|
| A | TB00 | Solution Annealed | 410～530 | 190～380 | 35~60 | <130 | 45~78HRB | 15～19 |
| 1/2 H | TD02 | Half Hard | 580～690 | 510～660 | 12~30 | 180~220 | 88~96HRB | 15～19 |
| H | TD04 | Hard | 680~830 | 620~800 | 2~18 | 220~240 | 96~102HRB | 15～19 |
| HM | TM04 |
Mill hardened |
930～1040 | 750～940 | 9～20 | 270～325 | 28～35HRC | 17～28 |
| SHM | TM05 | 1030～1110 | 860～970 | 9～18 | 295～350 | 31～37HRC | 17～28 | |
| XHM | TM06 | 1060～1210 | 930～1180 | 4～15 | 300～360 | 32～38HRC | 17～28 | |
Applications of C17200 (CuBe2) Alloy (CUBERYLLIUM ®-172):
| Product Category | Product | Reason Category | Reason |
| Industrial | Housings for Instruments | Corrosion Resistance | Corrosion Resistance |
| Housings for Instruments | Machining Characteristics | Machinability | |
| Housings for Instruments | Magnetic Properties | Non-Magnetic | |
| Housings for Instruments | Mechanical Properties | High Strength | |
| Non Sparking Safety Tools | Mechanical Properties | Very High Strength | |
| Non Sparking Safety Tools | Non-Sparking | Non-Sparking |
Standard Tolerance of CuBe2 Strip C17200 (CUBERYLLIUM ®-172):
| Tolerance Sheet | ||
| (MM) | ||
|
Strip Thickness |
CuBeryllium® Standard Tolerance |
|
| over | incl. | plus or minus |
| 0.03 | 0.08 | 0.003 |
| 0.08 | 0.1 | 0.004 |
| 0.1 | 0.15 | 0.005 |
| 0.15 | 0.2 | 0.006 |
| 0.2 | 0.25 | 0.007 |
| 0.25 | 0.4 | 0.008 |
| 0.4 | 0.55 | 0.009 |
| 0.55 | 0.7 | 0.01 |
| 0.7 | 0.9 | 0.015 |
| 0.9 | 1.5 | 0.025 |
| Note: Tolerances apply to rolled and mill hardened strip. | ||

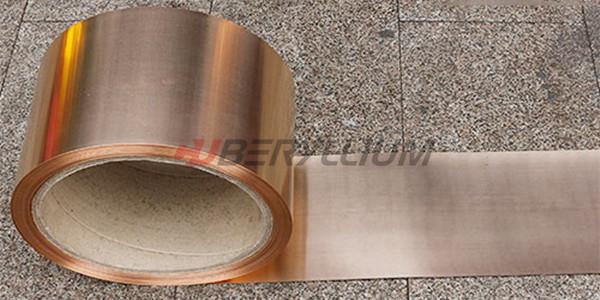

Product Photos:
FAQ:
Q1:Could
you
produce
Beryllium
Copper
strip
by
Mill
Hardened
process.
A1:Yes,
we
could
produce
AM(TM00),
1/2HM(TM01).HM(TM04)
XHM(TM06)
XHMS(TM08).,we
are
the
only
factory
could
do
harden
strip
in
China.
Q2:
What’s
the
advantages
the
Beryllium
Copper
of
CUBERYLLIUM®.
A2:
1:
The
Biggest
Coil
weight
could
be
reach
1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace.
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
