| Price | USD 30～50/KG |
| MOQ | 30kg |
| Delivery Time | 10～15 Working days |
| Brand | CUBERYLLIUM® |
| Place of Origin | China |
| Certification | ISO ROHS |
| Model Number | DIN.2.0850 |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
| Place of Origin | China | Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Specification | All Sizes | Model Number | DIN.2.0850 |
| Supply Ability | 50T/Month | Typical Application | Electrical and Industrial |
| Density | 8.83g/cm3 | Certification | ISO ROHS |
| Name | DIN.2.0850 Copper Beryllium Round Rods | Surface | Bright, Polish |
| Shape for available | Rod&Bar | Brand Name | CUBERYLLIUM® |
| Payment Terms | L/C, T/T | Brand | CUBERYLLIUM® |
| Price | USD 30～50/KG | Delivery Time | 10～15 Working days |
| ASTM | ASTM B441 | Length | Clients' Requirement |
| State | A(TB00),H(TD04),AT(TF00),HT(TH04) | Minimum Order Quantity | 30kg |
| Diameter | 8-30mm |
DIN.2.0850 Copper Beryllium Round Rods By Standard ASTM B442, SAE J461, 463 And RWMA Class 3
Product Description:
| 1 | Item | Copper beryllium round rods |
|---|---|---|
| 2 | Grade | DIN.2,0850 |
| 3 | Standard | ASTM B442, SAE J461, 463 And RWMA Class 3 |
| 4 | Temper | A(TB00),H(TD04),AT(TF00),HT(TH04) |
| 5 | Surface | Polish, Bright |
| 6 | Feature | High Strength and high conductivity |
| 7 | Payment | T/T, L/C, Western Union |
| 8 | Package |
Standard export packing
|
| 9 | Application |
|
| 10 | Delivery Time |
|
| 11 | Price Terms | FOB, CIF, CFR, EX-Work, CNF |
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-751 also named -C17510 (CDA 1751) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.
Chemical Composition of DIN.2.0850 Copper Beryllium Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Nickel | Cobalt+Nickel | Cobalt+Nickel+Iron | Lead | Copper |
| Cuberyllium-C751 | C17510 | 0.20 ~ 0.60% | 1.40 ~ 2.20% | - | - | - | Balance |
Typical
Physical
Properties
of
DIN.2.0850
Copper
Beryllium
Alloys:
| Density | 8.83 | g/cm3 |
| Density before age hardening | 8.75 | g/cm3 |
| Melting Range | 1000~1070 | ℃ |
| Elastic Modulus | 14.10 | (kg/mm2 (103) |
| Thermal Expansion Coefficient | 18 x 10 -6 | 20 °C to 200 °C m/m/°C |
| Thermal Conductivity | 0.57 | cal/(cm-s-°C) |
Mechanical and Electrical Properties of DIN.2.0850 Copper Beryllium Round Rods:
| Temper(*) | Diameter | Heat Treatment |
Tensile Strength Mpa |
Elongation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 240~380 | 20~40 | 20~35 | B20~50 |
|
H(TD04) |
ALL SIZE | / | 440~550 | 10~20 | 20~35 | B20~30 |
| AT(TF00) | ALL SIZE | 3 hr 480℃ | 680~900 | 10~30 | 45~60 | B92~100 |
| HT(TH04 | ALL SIZE | 2 hr 480 ℃ | 750~960 | 5~30 | 48~60 | B95~102 |

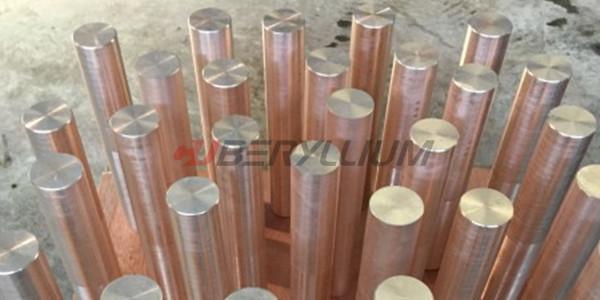

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q2:
How
about
your
payment
terms?
A2:
Generally,
30%
as
deposit
by
T/T,
then
70%
should
be
paid
before
the
delivery.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace?
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
