Straight Beryllium Copper Pipe DIN. 2. 1285 Dia 1mm 2mm 3mm

Price	USD 30～50/KG
MOQ	30kg
Delivery Time	10～15 Working days
Brand	CUBERYLLIUM
Place of Origin	China
Certification	ISO ROHS
Model Number	DIN. 2.1285
Packaging Details	Pack in coil+waterproofing winding film+Drier+Wooden Case
Payment Terms	L/C, T/T
Supply Ability	50T/Month

Product Details

Product Specification

Place of Origin	China	Size	All size
Packaging Details	Pack in coil+waterproofing winding film+Drier+Wooden Case	Grade	DIN. 2.1285
Model Number	DIN. 2.1285	Supply Ability	50T/Month
Typical Application	Electrical Industry, Fasteners, Industrial	Certification	ISO ROHS
Name	Cobalt Beryllium Copper Tube	Surface	Bright
Shape for available	Round tube, Hollow bars, Pipes	Brand Name	CUBERYLLIUM
Payment Terms	L/C, T/T	Brand	CUBERYLLIUM®
Type	Straight Copper Pipe	Price	USD 30～50/KG
Delivery Time	10～15 Working days	ASTM	ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167
Minimum Order Quantity	30kg	Temper	A(TB00)

Product Description

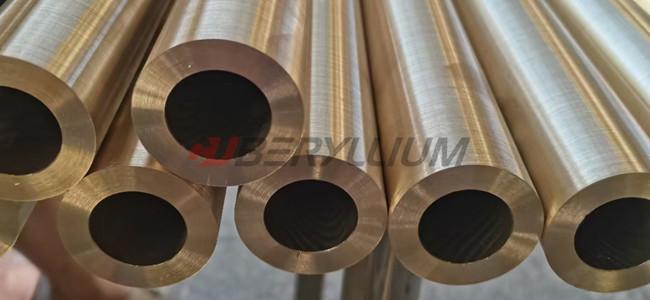

Straight Beryllium Copper Pipe DIN. 2. 1285 Dia. 1mm 2mm 3mm For Industrial Application

Product Description:

Name: Beryllium copper pipe

Grade: DIN. 2.1285

End Product Form: Tube / Pipe

Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

Application: Industrial application

Feature: with high conductivity

Package: in plywoode cases or wooden cases

Size: Custom Diameter & Sizes, Random Mill Lengths

General Characteristics of C17500(DIN.2.1285) Beryllium Copper Alloy:

C17500/C17510 Copper Alloy offer a combination of high electrical and thermal conductivity with good strength compared to most copper based alloys. C17500 alloy is the mirror image of alloy C17510 in terms of its properties and characteristics. The alloys differ in that C17500 specifies a cobalt alloying addition (2.40-2.70%) and alloy C17510 specifies a nickel alloying addition (1.40-2.20%), but their performance are the same.

Typical uses of C17500(DIN.2.1285) Beryllium Copper Alloy:
Fuse clips, fasteners, springs, switch and relay parts, electrical conductors and welding equipment.

Chemical Composition of Straight Beryllium Copper Alloy DIN. 2. 1285:

CUBERYLLIUM® Brand	UNS-Number	Beryllium	Cobalt	Fe	Si	Copper
Cuberyllium-C750	C17500	0.40-0.70	2.4～2.7	<0.1	<0.2	Balance

Related material specifications of Straight Beryllium Copper Alloy DIN. 2. 1285:

Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

European Standards: CuCo2Be, CuCoBe, Alloy 10, DIN 2.2185, CW104C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

Typical Physical Properties of Straight Beryllium Copper Alloy DIN. 2. 1285:

Density	8.83	g/cm3
Density before age hardening	8.75	g/cm3
Elastic Modulus	14.1	kg/mm2 (103)
Thermal Expansion Coefficient	18x10-6	20 °C to 200 °C m/m/°C
Thermal Conductivity	0.48	(cal/(cm-s-°C
Melting Range	1000-1070	°C

Temper Designations of Straight Beryllium Copper Alloy DIN. 2. 1285 Pipe:

Cuberyllium Designation	ASTM	Mechanical and Electrical Properties of Copper Beryllium Tube / Pipe
Cuberyllium Designation	Temper	Outside Diameter or Distance Between Parallel Surfaces (mm)	Tensile Strength (Mpa)	Yield Strength 0.2% offset(Mpa)	Elongation Percent	HARDNESS (Rockwell B Scale)	Electrical Conductiviry percent(IACS)
A	TB00	All sizes	240～380	70～210	20-35	B20-50	20-30
H	TD04	up to 76	440~550	340~520	10-15	B60-80	20-30
AT	TF00	All sizes	680～890	550～690	10-25	B92-100	45-60
HT	TH04	up to 76	750 ~ 960	650 ~ 860	5-25	B95-102	48-60
