| Price | USD 30～50/KG |
| MOQ | 30kg |
| Delivery Time | 10～15 Working days |
| Brand | CUBERYLLIUM |
| Place of Origin | China |
| Certification | ISO ROHS |
| Model Number | CuCo2Be |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
| Place of Origin | China | Size | All size |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case | Grade | CuCo2Be |
| Model Number | CuCo2Be | Supply Ability | 50T/Month |
| Typical Application | Electrical Industry, Fasteners, Industrial | Certification | ISO ROHS |
| Name | Cobalt Beryllium Copper Tube | Surface | Bright |
| Shape for available | Round tube, Hollow bars, Pipes | Brand Name | CUBERYLLIUM |
| Payment Terms | L/C, T/T | Brand | CUBERYLLIUM® |
| Type | Straight Copper Pipe | Price | USD 30～50/KG |
| Delivery Time | 10～15 Working days | ASTM | ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167 |
| Minimum Order Quantity | 30kg | Temper | A(TB00) |
CuCo2Be Cobalt Beryllium Copper Tube With High Conductivity For Electrical Industry
Product Description:
Name: Cobalt Beryllium Copper Tube
Grade: CuCo2Be
End Product Form: Tube / Pipe
Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167
Application: Electrical industry
Feature: with high conductivity
Package: in plywoode cases or wooden cases
Size: Custom Diameter & Sizes, Random Mill Lengths
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
Introduction of CuCo2Be Colbalt Beryllium Copper:
CuCo2Be—C17500
(CDA
175)
Cobalt
Beryllium
Copper
is
primarily
utilized
in
the
industry
applications
that
require
most
highly
thermal
or
electrical
conductivity,
which
features
a
cobalt
alloying
addition
(2.40-2.70%).
C17500
also
Offers
good
strength
and
hardness
characteristics
coupled
with
conductivity
in
the
range
of
45-60
percent
of
copper
with
ultimate
tensile
and
hardness
properties
approaching
140
ksi
and
RB
100
respectively.
C17500 is
available
in
wrought
product
forms
and
can
be
supplied
fully
hardened
by
our
producing
mill.
Chemical Composition:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt | Fe | Si | Copper |
| Cuberyllium-C750 | C17500 | 0.40-0.70 | 2.4～2.7 | <0.1 | <0.2 | Balance |
Related material specifications
Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167
European Standards: CuCo2Be, CuCoBe, Alloy 10, DIN 2.2185, CW104C to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by ASTM.
Typical
Physical
Properties:
| Density | 8.83 | g/cm3 |
| Density before age hardening | 8.75 | g/cm3 |
| Elastic Modulus | 14.1 | kg/mm2 (103) |
| Thermal Expansion Coefficient | 18x10-6 | 20 °C to 200 °C m/m/°C |
| Thermal Conductivity | 0.48 | (cal/(cm-s-°C |
| Melting Range | 1000-1070 | °C |
Typical Applications for CuCo2Be Cobalt Beryllium Copper Tube:
A: Electrical Industry: Switch Parts, Connectors, Spring Connectors, Fuse Clips, Relay Parts;
B: Fasteners: Washers, Fasteners;
C: Industrial: Spring, Resistance Welding Equipment, Resistance and Spot Welding Tips, Seam Welding Dies, Die-Casting Plunger Tips, Tooling for Plastic Moulds.
Temper Designations of CuCo2Be Cobalt Beryllium Copper Tube (CUBERYLLIUM ®-750):
| Cuberyllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip | |||||
| Temper |
Outside Diameter or Distance Between Parallel Surfaces (mm) |
Tensile
Strength (Mpa) |
Yield Strength 0.2% offset(Mpa) | Elongation Percent |
HARDNESS (Rockwell B Scale) |
Electrical Conductiviry percent(IACS) | |
| A | TB00 | All sizes | 240～380 | 70～210 | 20-35 | B20-50 | 20-30 |
| H | TD04 | up to 76 | 440~550 | 340~520 | 10-15 | B60-80 | 20-30 |
|
AT |
TF00 | All sizes | 680～890 | 550～690 | 10-25 | B92-100 | 45-60 |
| HT | TH04 | up to 76 | 750 ~ 960 | 650 ~ 860 | 5-25 | B95-102 | 48-60 |

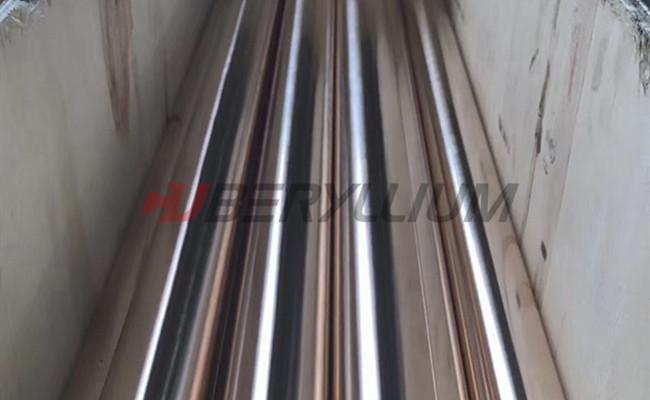

Product Photo:
Weldability
Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended
Hot & Cold Workability
Good hot working properties. Excellent cold working properties.
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
FAQ:
Q1:Could
you
produce
Beryllium
Copper
strip
by
Mill
Hardened
process.
A1:Yes,
we
could
produce
AM(TM00),
1/2HM(TM01).HM(TM04)
XHM(TM06)
XHMS(TM08).,we
are
the
only
factory
could
do
harden
strip
in
China.
Q2:
What’s
the
advantages
the
Beryllium
Copper
of
CUBERYLLIUM®.
A2:
1:
The
Biggest
Coil
weight
could
be
reach
1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3:
Why
you
melting
by
Vacuum
semi-Continuous
Furnace.
A3:Could
be
get
the
Cast
ingot
without
gas,smaller
segregation,
Grain
Refinement
Q4:
What's
the
payment
terms?
A4:
We
accept
T/T,
L/C,
Paypal
etc.
It
can
be
negotiated
when
the
amount
is
different.
