| Price | Negotiable |
| MOQ | 200PCS |
| Delivery Time | 1 week after payment |
| Brand | SL or OEM |
| Place of Origin | GUANGDONG CHINA |
| Certification | CE ROHS |
| Model Number | Anchor Clamp 02 |
| Packaging Details | carton packing |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 3000PCS/DAY |
| Place of Origin | GUANGDONG CHINA | Sample | OK |
| Packaging Details | carton packing | Product Name | Cable Clamp |
| Cable size | 12-15mm | Material | Plastic and 50cm metallic wire |
| Model Number | Anchor Clamp 02 | Supply Ability | 3000PCS/DAY |
| Certification | CE ROHS | Brand Name | SL or OEM |
| Payment Terms | T/T, Western Union, MoneyGram | Type | PA3000 |
| Price | Negotiable | Delivery Time | 1 week after payment |
| Minimum Order Quantity | 200PCS | Delivery | 1 to 2 weeks |
| Application | ADSS Fiber Optic Cable |

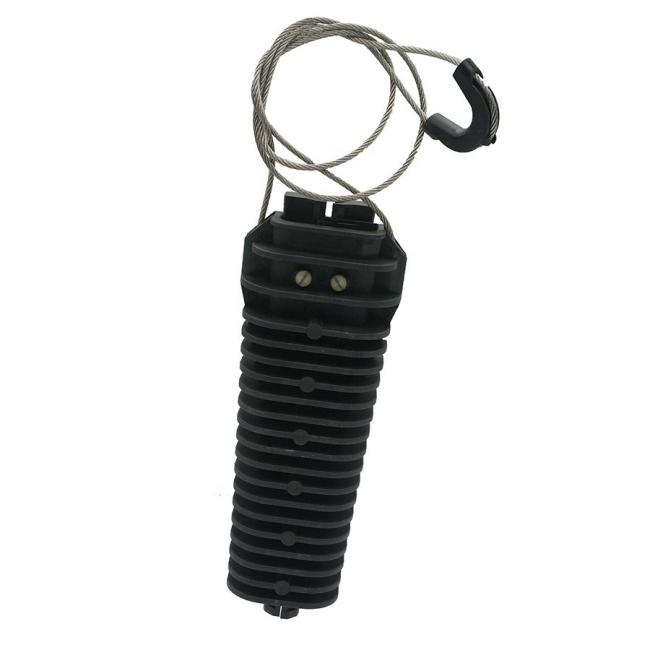

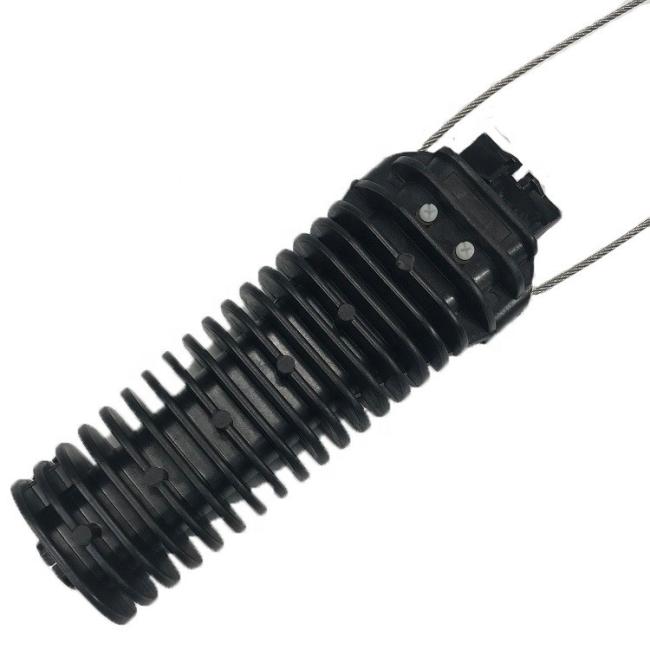

Fiber Cable Clamp PA3000 Anchor Cable Aerial Strain Clamp Wire Tension Connector
The ADSS tension clamp consists of self-adjusting palstic wedges ,which clamp the optical cable without damaging. Wide range of gripping capacities archived by different types of wedges ADSS anchor clamp.
The stainless steel bail allows installations of clamps on a pole brackets or hooks at seaside area.
ADSS tension clamp PA-3000 available either separately or together as assembly with ADSS fiber optic cable brackets and stainless steel band.
Features:
1.The
Anchor
clamp
is
used
to
fix
the
line
at
the
end
bracket
2.The
body
of
the
clamp
is
made
of
special
polymer
material
no
change
when
exposure
to
ultraviolet
light.The
bodymaterials
are
UV-resistant
3.It
can
fixed
the
wire
firmly
and
doesn't
effect
the
insulation.
4.No
took
are
required.
| Product code | Bail Length,mm | Cable Size,mm | MBL,KN | Weight ,KG |
| PA-2000 | 530 | 10--15mm | 20 | 0.44 |
| Product Item | Type | Cable Size,mm | MBL,KN |
| ADSS anchor clamp | PA-500 | 3--7mm | 3 |
| PA-37 | 3--7mm | 2 | |
| PA-69 | 6--9mm | 2 | |
| PA-1500 | 8--12mm | 15 | |
| PA-3000 | 8-12;12-16mm | 15 | |
| PA-1000-AL | 8--11mm | 10 | |
| PA-1500-AL | 11--14mm | 15 |

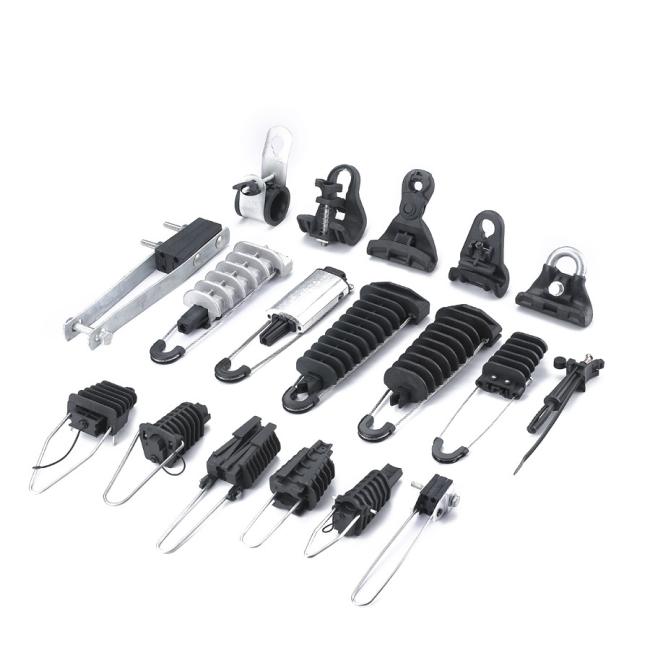

Other Models
Installation Method

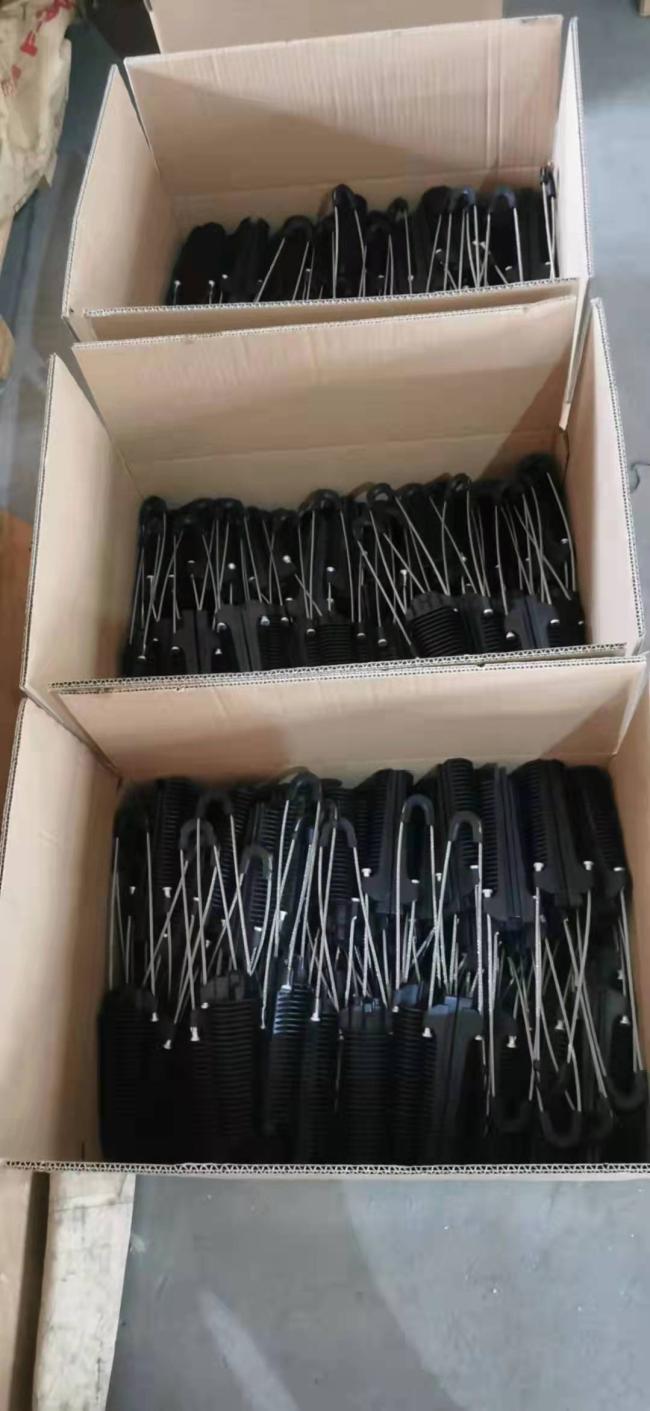

Packing
