| Price | Negotiable |
| MOQ | 1000PCS |
| Delivery Time | 3-5 Days after payment |
| Brand | SL |
| Place of Origin | GUANGDONG CHINA |
| Certification | CE ROHS |
| Model Number | SL-JACK-2085C6 |
| Packaging Details | 1000PCS/CARTON, |
| Payment Terms | T/T, Western Union, MoneyGram, D/A |
| Supply Ability | 100K PCS per WEEK |
| Installation | Toolless | Place of Origin | GUANGDONG CHINA |
| Category | Cat6 tooless | Packaging Details | 1000PCS/CARTON, |
| Model Number | SL-JACK-2085C6 | Supply Ability | 100K PCS per WEEK |
| Certification | CE ROHS | Connector type | RJ45 |
| Brand Name | SL | Payment Terms | T/T, Western Union, MoneyGram, D/A |

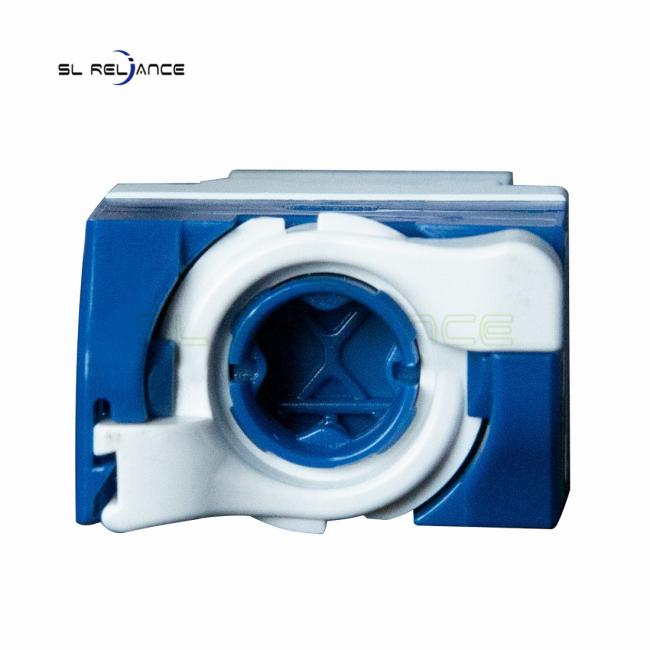

| Shielded | UTP Rotary Type | Price | Negotiable |

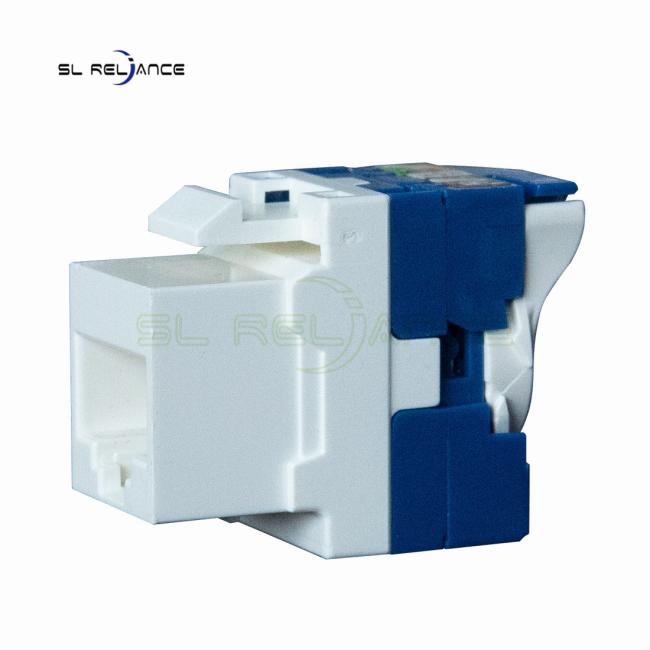

| Delivery Time | 3-5 Days after payment | Product name | Rotary UTP CAT6 Tooless Keystone Jack |
| Test | Fluke passed | Minimum Order Quantity | 1000PCS |
| Model | 2085C6 | Housing material | ABS / PC |
| Oem/odm | Available | Application | Network Cabling Systems |
Features:
1:
Small
and
high
end
form
2:
Professional
design
on
PCB
and
JACk
3:
With
High
reliable
performance
Standards:
1:
ANSI/TIA-568-C.2
2:
ISO/IEC
11801
3:
YD/T
926.3-2009
4:ISO/IEC
60603-7
Compliant
5:
RoHS
Directive
2002/95/EC/Compliant
| Model Number | SL2085C6 |
| Name | Keystone Jack |
| TYPE | UTP unshieled |
| Category | 6 |
| Material | ABS +PC |
| Spring | Phosphor Bronze & Gold-painted |

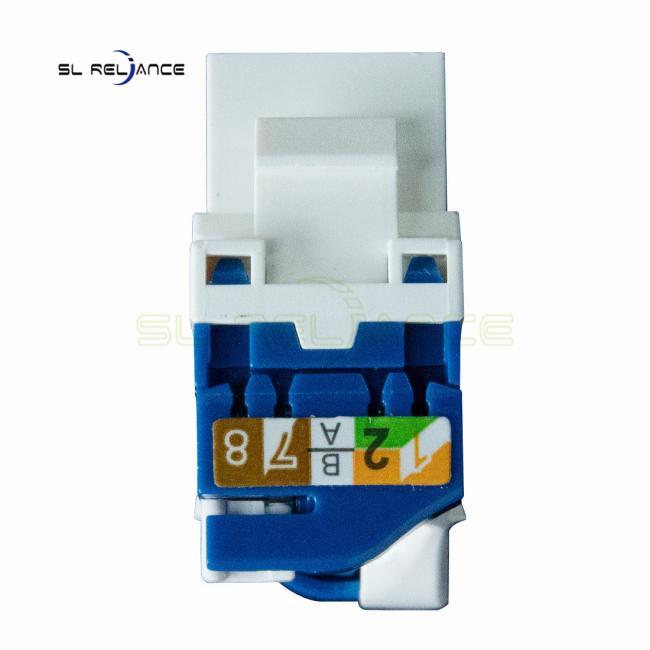

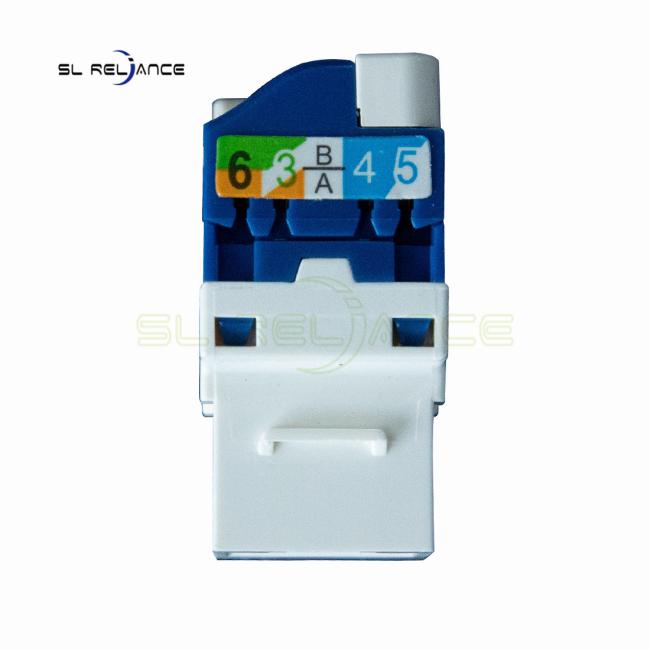

| Wiring mode: | T568A/B |
| IDC Terminal | 22-26 AWG Cable |
| IDC Pin: | Phosphor Bronze & Tinned |
| RJ45 Insert pin | 8P8C 8" Gold Plated |
| Color | WHITE |
| Test | Channel test and Flukee test |
| Electrical | |
| Voltage Rating : | AC 125V |
| Current Rating : | 1.5 AMPS |
| Insulation Resistance: | 500MΩ Min |
| Withstand Voltage: | DC 1000V RMS 50-60Hz Min |
| Contact Resistange: | 20MΩ Max |
| Mechanical | |
| Insertion Force: | 2 pins 3.5N 4 pins 5N 6 pins 7.5N 8 pins 9 N |
| Retention Strength: | 70N between jack and plaug;60N between wire and IDC |
| Durability: | Jack 700 mating cycles mini; IDC contact 100 stripper cycles mini |
| Wire: | AWG 24-26 |
| Material | |
| Housing: | PC(UL94V-0);ABS(UL94V-0);PC/ABS(UL94V-0) |
| IDC Hosing: | PC(UL94V-0);PBT(UL94V-0) |
| Spring Wire: |
T=0.35mm
phosphor
bronze
alloy
selective
gold 0.45 dia phosphor bronze gold plating over nickel |
| IDC Contact : | Phosphor bronze;Nickel plating |
| Shielding: | T=0.25mm copper alloy with tin plated gold |
| Plating : | 3u inch,6u inch,10u inch,15u inch,20u inch,30u inch,50u inch |
| Working Environment | |
| Temperature: | -10°c-60°c |
| Humidity: | 10-90% |
