| Price | Negotiable |
| MOQ | 100PCS |
| Delivery Time | 1-2week after payment( based on quantity) |
| Brand | SLR |
| Place of Origin | GUANGDONG,CHINA |
| Certification | CE,ROHS |
| Model Number | PC1FC7P24 |
| Packaging Details | Standard packing: 1pc/ small carton 5 small cartons |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000PCS/DAY |
| Place of Origin | GUANGDONG,CHINA | Use | Cabinet, Data Center |
| Packaging Details | Standard packing: 1pc/ small carton 5 small cartons | Material | Cold Rolled Steel Sheet |
| Model Number | PC1FC7P24 | Supply Ability | 1000PCS/DAY |
| Certification | CE,ROHS | Name | panel Networking Rackmount 19inch |
| Brand Name | SLR | Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Price | Negotiable | Delivery Time | 1-2week after payment( based on quantity) |
| Minimum Order Quantity | 100PCS | Connector Type | 24 PCS CAT7 FTP Keystone Jack |
| Height | 1U | Number of Port | 24 Ports |

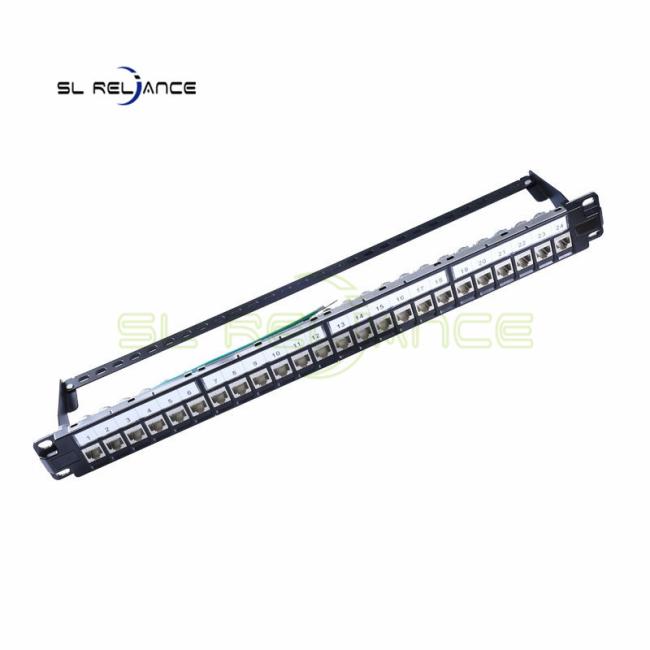

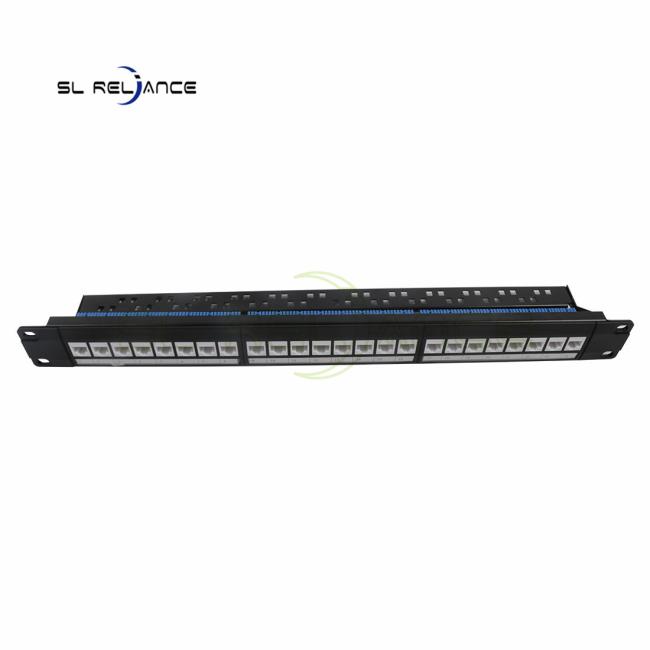

High Density Horizontal Category 7 FTP patch panel offers high performance, this Panel can be terminated quickly and easily with a variety of cables.
Characteristic:
High performance compliant with ANSI/TIA 568 C.2 standard at component Level
Compliant with IEC60512-99-001 suitble for use with IEEE 802.3(PoE+) applications.
Suitable for 22-26AWG stranded and solid wire
Fully Shielded die-cast keystone body is robust as well as offering outstanding performance in eliminating alien cross talk
Quick and easy tool-less "butterfly" style termination
Built-in retracting dustcovers

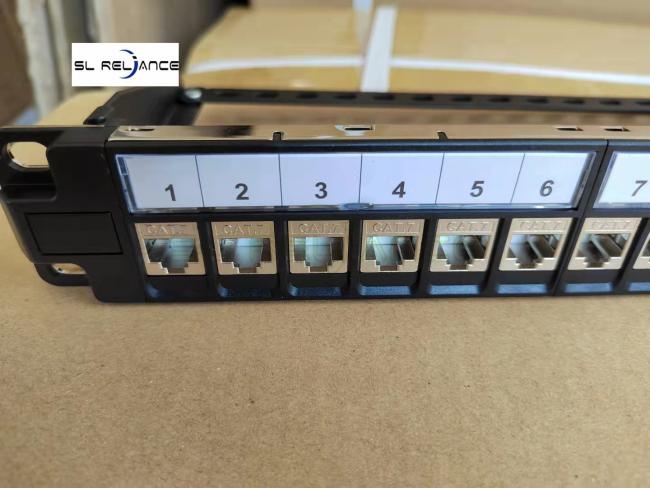

Clear numbering on the front provides a quick, easy way to identify cable run
Supplied with a fixed rear cable management bar, cable ties, 4sets of M6 black cage nuts and long earth wire with fixing screws.
| Name | 24 Port 1U Cat7 FTP Toolless Shielded Patch Panel |
| Connector Type | FTP CAT7 KEYSTONE JACk |
| Size | 1U 19 ‘’ |
| Port Number | 24 Port |
| Standard | ISO/IEC11801; ANSI/TIA-568B; EN50173-1 |
| Patch Panel Condition | Full Loaded with Keystone jack |
| Material performance | |
| Front Panel: | Cold rolled steel |
| Plastic: | High impact and flame retardant plastic,UL94V-0 rated |
| Contact: | Phosphor bronze |
| Contact Plating: | Gold plating 50µ~100µ |
| Mechanical performance | |
| Plug Insertion Life: | Min.750cycle |
| Plug Retention Force: | Min.30Lbs |
| IDC Contactor: | 22-26 AWG solid wires applied |
| IDC Termination Cycles: | Min.200 times |
| Temperature: | -40℃ to 70℃ |
| Electrical Performance | |
| Current Rating: | 1.5AMP |
| Insulation Resistance: | Min.500 Mega Ohms |
| Contact Resistance: | Max.20milli-Ohms |
| Dielectric Strength: | 750V AC RMS 60Hz 1min |
