FTTB FTTX Indoor 2.0mm Fiber Optic Patch Cords ST To ST Fiber Jumper

Price	Negotiable
MOQ	100PCS
Delivery Time	2Weeks after payment
Brand	SLR or OEM
Place of Origin	GUANGDONG CHINA
Certification	CE ROHS
Model Number	FC Fiber Optic Patch Cord
Packaging Details	1PCS/BAG
Payment Terms	T/T, L/C, Western Union, MoneyGram
Supply Ability	3000PCS/DAY

Product Details

Product Specification

Connector	ST- ST	Insertion Loss	less than 0.2 dB
Place of Origin	GUANGDONG CHINA	Packaging Details	1PCS/BAG
Product Name	Fiber Optic Patch Cord Cable	Model Number	FC Fiber Optic Patch Cord
Fiber Type	Single Mode G.652D	Supply Ability	3000PCS/DAY
Certification	CE ROHS	Brand Name	SLR or OEM
Payment Terms	T/T, L/C, Western Union, MoneyGram	Price	Negotiable
Delivery Time	2Weeks after payment	Minimum Order Quantity	100PCS
Cable Diameter	2.0mm 3.0mm	Return Loss	bigger than 55 dB
Application	FTTH FTTB FTTX Network	Core	Simplex or Duplex

Product Description

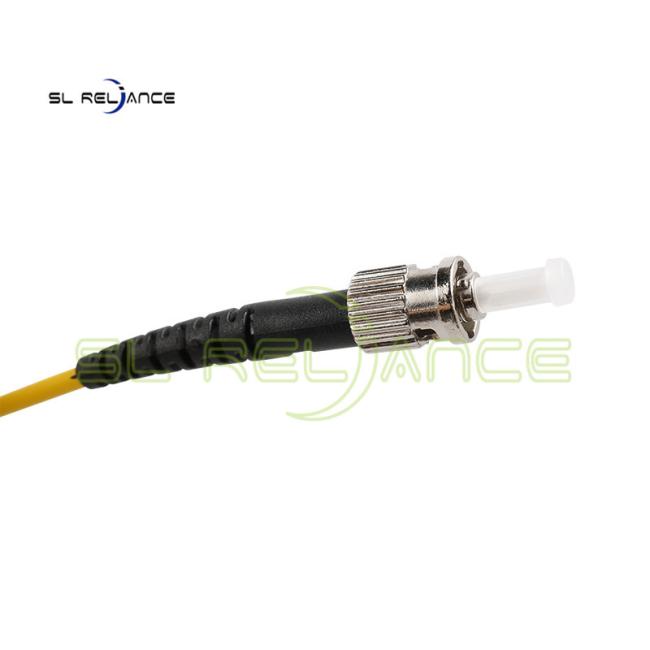

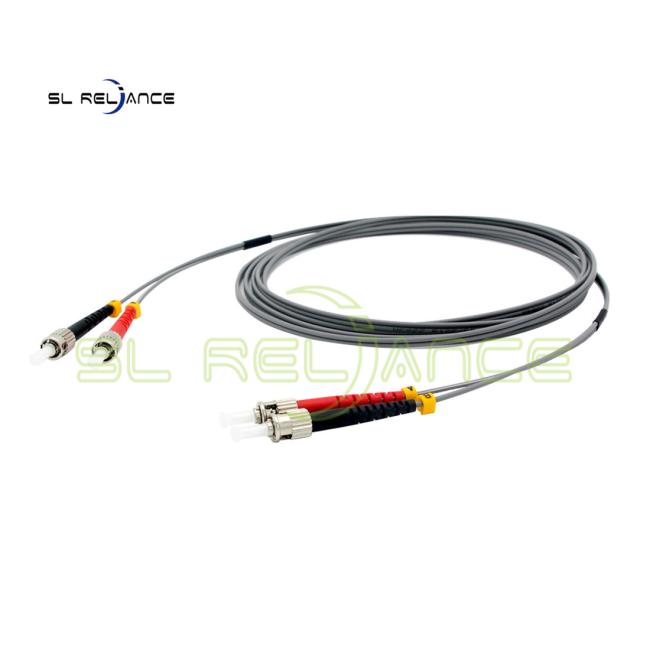

Indoor Optical Cable Simplex / Duplex ST To ST Fiber Optic Patch Cords

Fiber Optic Patchcords are generally called jumper cables for the connection of fiber optic equipment to equipment or patch panel to equipment. It is fiber cable terminated with connectors. There are many variations for fibers, cables and connectors. For fiber, it can be Singlemode or Multimode (50um, 62.5um, OM3 etc.) type. As for cable, there are simplex and duplex types. For connector, to name a few common ones are ST, SC, FC, LC, MTRJ, SMA etc.

Features
1:Compliant with international standard
2:Realize the activelink of optic fiber transmission
3:Low insertion loss and high return loss
4:xcellent repeatability and interchangeability

Application
1: FTTH, LAN, PON & Optical CATV, Local ring net
2: Optical fiber communication system
3:Optical fiber test equipment
4:Optical fiber sensor
5: Industry and military application

Specification:

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Ordering options

1) Connector type: FC, SC, LC, ST
2) Ferrule End-face: PC, UPC, APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH
