| Price | FOB, EX-WORK, C&F, CIF |
| MOQ | 1/Set |
| Delivery Time | 15-20 working days |
| Brand | CHENXIN |
| Place of Origin | China (Mainland) |
| Certification | ISO9001 |
| Model Number | CX-TypeC901V14E |
| Packaging Details | wooden case |
| Payment Terms | T/T |
| Supply Ability | 150/sets per month |
| UPH value | 1000-1200pcs / h | Place of Origin | China (Mainland) |
| Air pressure | 5 ~ 6kgf / C ㎡ | Packaging Details | wooden case |
| Voltage&frequency | AC 220v 50Hz | Dimension | 2267mm L × 915mm W × 1366mm H |
| Model Number | CX-TypeC901V14E | Supply Ability | 150/sets per month |
| Certification | ISO9001 | Weight | 400kg |
| Brand Name | CHENXIN | Payment Terms | T/T |
| Price | FOB, EX-WORK, C&F, CIF | Delivery Time | 15-20 working days |
| Minimum Order Quantity | 1/Set | Power | 2000W |
USB2 0/TYPE. C / Micro / Data Wire Production Automatic Soldering Welding Machine
Product introduction
The tin dipping welding machine invented by our company is used for products with tin dipping welding, including wire clamping, pre cutting, peeling, tin dipping, welding and other stations. Compared with manual operation, the efficiency is improved by 4-6 times, reducing personnel training time, avoiding manual operation, poor quality stability, debugging, single operation and continuous operation.
Product process

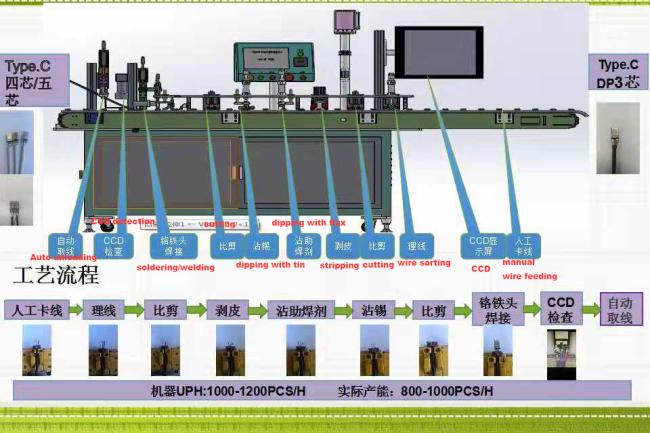

Manual wire clamping →wire sorting →cutting →peeling →dipping with flux →dipping with tin →cutting →welding/soldering →CCD inspection →automatic wire taking
Equipment parameters
Power supply: AC220V
Power: 2000W
Air pressure: 5 ~ 6kgf / C ㎡
Weight: 400kg
Volume: 2267mm long × 915mm wide × 1366mm high
UPH value: 1000-1200pcs / h
Product features
1: An automatic tin dipping welding machine with two operators can produce 8000pcs to 10000pcs in 10h, which is equivalent to two people completing the work of 3-5 people
Quantity, more importantly, it is easy to train employees to work, the quality is reliable, and reduce the production difficulty of the next process to ensure product consistency;
2: The process of automatic completion of the equipment: manual wire clamping - Inductor induction - peeling - tin dipping - Welding - automatic wire taking;
3: Applicable product type of equipment: USB2 0/TYPE. C / micro / data wire auto soldering.
