| Price | FOB Shenzhen |
| MOQ | 2/Set |
| Delivery Time | 5-8 working days |
| Brand | CHENXIN |
| Place of Origin | CHINA |
| Certification | ISO90001 |
| Model Number | CX-328 |
| Packaging Details | boxes |
| Payment Terms | T/T |
| Supply Ability | 500 sets per month |
| Material outer diameter | maxφ30 | Cutting stroke | 30mm |
| Place of Origin | CHINA | Packaging Details | boxes |
| Cutting speed | 100-3,000pcs/hr(depending on the length of cutting) | Model Number | CX-328 |
| Supply Ability | 500 sets per month | Certification | ISO90001 |
| Cutting system | motor driving and blade cutting | Brand Name | CHENXIN |
| Payment Terms | T/T | Price | FOB Shenzhen |
| Delivery Time | 5-8 working days | Cutting length | 1 - 99999.9 mm |
| Minimum Order Quantity | 2/Set | Cutting tolerance | 0.005+0.002 * L (L = cutting length) |

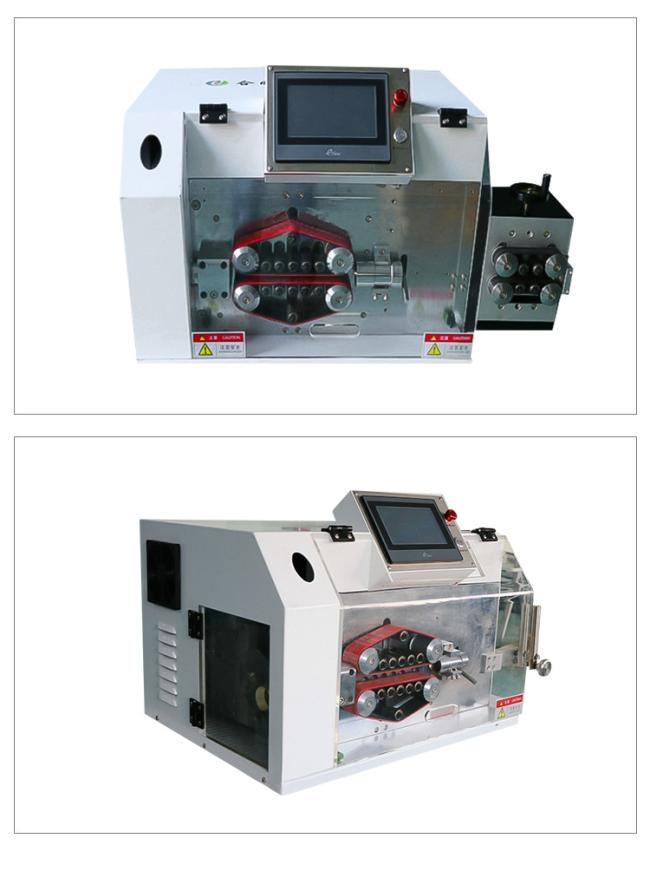

CX-328 Automatic Flexible Metallic Stainless Hose Cutting Machine
Product features:
This machine is designed for cutting tubular materials such as flexible metallic hoses, steel wire tubes, and wire drawing tubes. Using high-precision rotating cutter head. The incision is smoother. Efficient and stable. No need for secondary processing
Belt traction, no indentation or deformation. No need to replace the blade, different pipe diameters can be applied
PLC and touch screen control, easy to understand, processing parameters can be set in the program. High processing efficiency, stable and reliable
Aside from the traditional electrical design, only an ordinary 220V power supply is needed. Easy to carry and move
It is controlled by a high-precision stepping motor and has the characteristics of stable feeding and precise length. The circuit adopts an integrated circuit, which is stable in control and simple in maintenance.
| Name and model of machine | CX-328 Automatic Flexible Metallic Stainless Hose Cutting Machine |
| Cutting outside diameter | max φ30 |
| Cutting stroke | 30mm |
| Cutting Length | 1 - 9,999 mm |
| Speed of Cutting | 100-3,000pcs/hr(depending on the length of cutting) |
| Cutting system | motor driving and blade cutting |
| Cutting tolerance | cutting length±1% |
| Voltage | AC 220V 50/60Hz |
| Control system | PLC+HMI |
| Power | 2,000W |
| Feeding mode | by belt |
