| Price | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| MOQ | 1 Square Meter |
| Delivery Time | 5-8 work days |
| Brand | FUHANG |
| Place of Origin | China |
| Certification | ISO9001 |
| Model Number | 325x2300 Mesh |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 square meter /15 Days |
| Usage | filter | Place of Origin | China |
| Sample | free | Color | Silver |
| Material | Stainless Steel Wire 316 | Model Number | 325x2300 Mesh |
| Supply Ability | 50000 square meter /15 Days | Feature | Acid-resisting,Anti-corrosion,alkali-resisting etc |
| Certification | ISO9001 | Brand Name | FUHANG |
| Payment Terms | L/C, T/T | Type | Weave Wire Mesh |
| Advantage | factory direct sale | Packing | paper tube inside+ wodden box +plastic bag + |
| Price | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter | Delivery Time | 5-8 work days |
| Product name | 325x2300 Mesh Dutch Weave Micronic Filter Cloth | Weave style | Dutch/Plain/Twill Weave |
| Length | 1-30m | Minimum Order Quantity | 1 Square Meter |
| Technique | Woven | Application | Woven Wire Mesh |
| Width | Usually 1M |

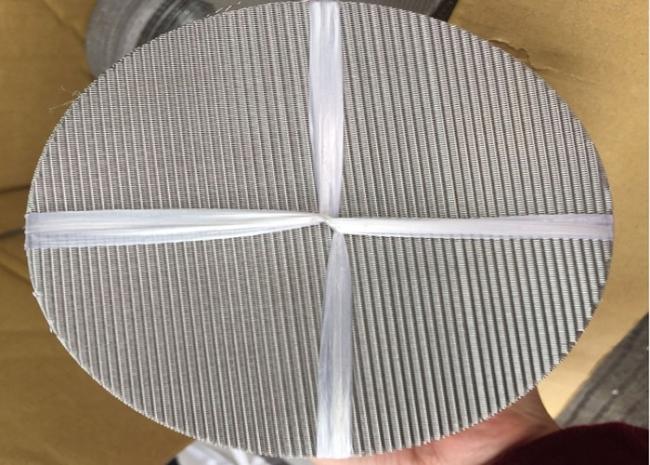

T316 325x2300 Mesh Dutch Weave 2 Micron Filter Cloth
Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.
Being a leader in the market, we are occupied in providing our customers a qualitative range of Dutch Weave Wire Mesh that is made by the use of coarse mesh. Our offered wire mesh is primarily in vacuum, fluid and pressure filtration of liquids and gases. This wire mesh is known for its greater mechanical stability, precise tolerances, resistant to corrosion, superior strength, fine finish and excellent thickness. Due to their high tensile strength, the offered Dutch Weave Wire Mesh is widely appreciated among our clients. Also, our renowned clients can avail these wire mesh at most affordable prices.
Dutch weave is divided into plain Dutch weave and twill Dutch weave. 325x2300 Mesh uses twill Dutch weave.
| U.S. | Metric | |
| MESH SIZE | 325x2300 per in | 325x2300 per 2.54 cm |
| WIRE DIAMETER | 0.0014x0.0010 in | 0.03556x0.0254 mm |
| OPENING | 0.0001 in | 0.00254 mm |
| OPENING MICRONS | 2 | 2 |
| POROSITY | 36 | 36 |
| OVERALL THICKNESS | 0.0035 in | 0.0889 mm |
| WEIGHT/SQUARE FOOT | 0.1000 lb | 0.0454 kg |
Features
2 micron precision woven stainless steel screen
Used in separation, fuel filters, gas diffusers and vents
Light tight mesh
Flow Data is available
Meets ASTM E2814-18
Stainless Steel 316
