| Price | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter |
| MOQ | 1 Square Meter |
| Delivery Time | 3-10 work days |
| Brand | FUHANG |
| Place of Origin | China |
| Certification | ISO9001 |
| Payment Terms | L/C, T/T |
| Supply Ability | 50000 square meter /30 Days |
| Usage | Protection,building,construction | Place of Origin | China |
| Wire gauge | 2.0-4.0mm | Hole shape | Square , Rectangle |
| Material | Galvanized Iron Wire,Plastic Coated Iron Wire | Supply Ability | 50000 square meter /30 Days |
| Certification | ISO9001 | Surface treatment | pvc coated,galvanized/pvc coated |
| Name | Welded Mesh Gabion | Brand Name | FUHANG |
| Payment Terms | L/C, T/T | Type | Welded Mesh |
| Price | 1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter | Delivery Time | 3-10 work days |
| Minimum Order Quantity | 1 Square Meter | Width | 0.5-2m |
| Application | building,bridge | Mesh size | 50x100mm |
Welded Mesh Gabion 2 X 2 Welded Wire Mesh 10 Gauge Welded Wire Mesh

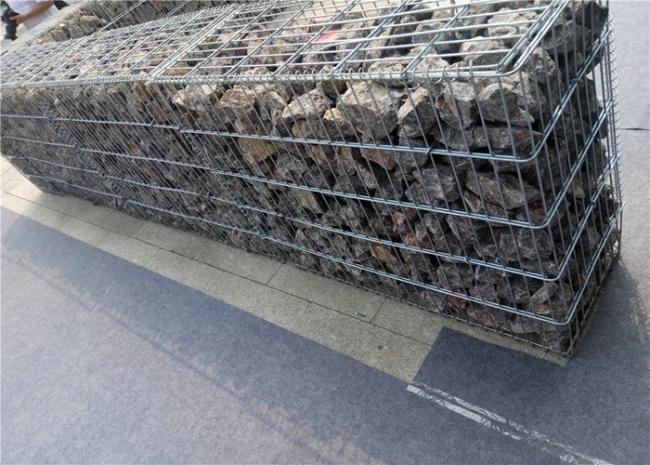

Welded Mesh Gabion are manufactured from cold drawn steel wire and strictly conform to
BS1052:1986 for tensile strength. welded mesh gabions are manufactured from a square mesh, normally of opening size 75.0mm × 75.0mm where the longitudinal wires are welded to the cross wires at their intersection points.
This type of fabric manufacture produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes (and partially factory-connected) to form the flat pack unit. The meshes can then be organic polymer coated to safeguard against corrosion and other weathering effects, especially when the are to be used in salty and highly polluted environments. Our Alu-Zinc* mesh is coated using the Galfan process.
Welded mesh gabions can be readily modified on site by cutting the mesh back to the next transverse mesh wire. Welded mesh gabions are available in a number of wire diameters to suit the application or can be manufactured in a combination of mesh-wire specifications to provide economy in supply. The resultant gabions’ flexibility is dependant upon the choice of wire diameter.
Where two types of stone fill are required, additional loose panels can be supplied and fitted on site to separate the two types of fill materials.
The mesh can be specified as either Galfan coated or Galfan coated with an external organic polymer powder (PVC) coating, as required by design.
Wire Sizes Available:
Galfan Coated – 3mm, 4mm, 5mm
Galfan/PVC – 2.7mm/3.2mm overall, 3.8mm/4.3mm overall
Tensile Strength (wire):
Welded: 540 to 770 N/mm²
Weld Strength: 75% of the minimum ultimate tensile strength of the wire
Usages:

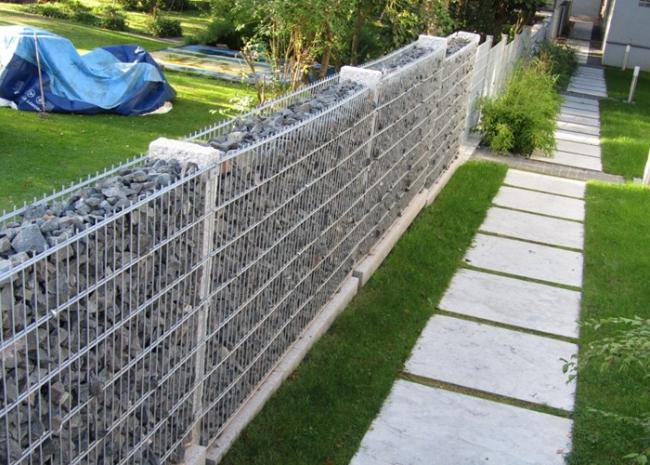

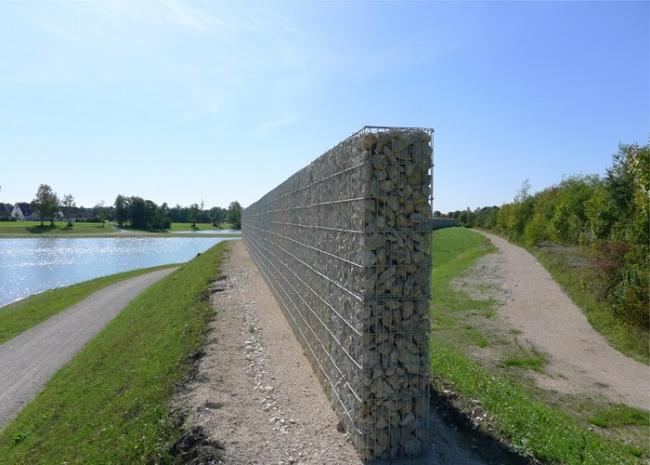

Welded
wire
gabion
has
a
wide
usage,
it
is
widely
used
in
industry,
construction,
transportation,
mining,
sport
field,
grassland
and
breeding
as
fence,
decoration,
machine
guards
and
so
on.
Good
quality.
competitive
price.
efficient
service
and
about
thirty
years
experiences.
These
advantages
have
enable
us
to
be
one
of
the
most
reliable
suppliers
of
wire
mesh
in
Anping
County.
And
we
have
established
regular
business
relationship
with
many
customers.
