| Price | USD $0.45~$0.75 per piece |
| MOQ | 1000 |
| Delivery Time | 10 work days |
| Place of Origin | China |
| Model Number | H3-67 |
| Packaging Details | 200pcs per bag |
| Payment Terms | T/T |
| Supply Ability | 10K pieces per week |
| Mounting Hole | 2mm/4.9mm | Place of Origin | China |
| Terminal width | 6.4mm faston terminal | Packaging Details | 200pcs per bag |
| Model Number | H3-67 | Supply Ability | 10K pieces per week |
| P/N | H3-67 | Mounting Type A | PCB |
| Payment Terms | T/T | Electrical Rating | 25A 250V /30A 300V |
| Fuse Size | 6x30 | Item Name | fuse holder |
| Body Width | 13.8mm | Body Material | PBT |
| Terminal Material | nickel plated brass | Price | USD $0.45~$0.75 per piece |
| Delivery Time | 10 work days | Body Length | 35.4mm |
| Minimum Order Quantity | 1000 | RoHS Compliant | Yes |
| Height | 16.5mm |
H3-67 25A 250V /30A 300V PCB Mount 6x30 Fuse Holder for 6.3x32 fuses
Product Description
| Item Name | Fuse Holder |
| P/N | H3-67 |
| Fuse Size | 6x30 6x32 |
| Ambient temperature | - 40°C~125°C |
| Insulation Resistance | >100mΩ |
| Contact Resistance | <5mΩ |
| Voltage Breakdown | 3000VAC |
| Mounting Type | PCB |
| Rating Current | 25A 250V /30A 300V |
| Body Color | Black |
| Body Material | PBT 94V-0 |
| Terminal Material | nickel plated brass |
| Bottom Length | 35.4mm |
| Body Width | 13.8mm |
| Height | 16.5mm |
| Mounting Hole Diameter | 4mm |

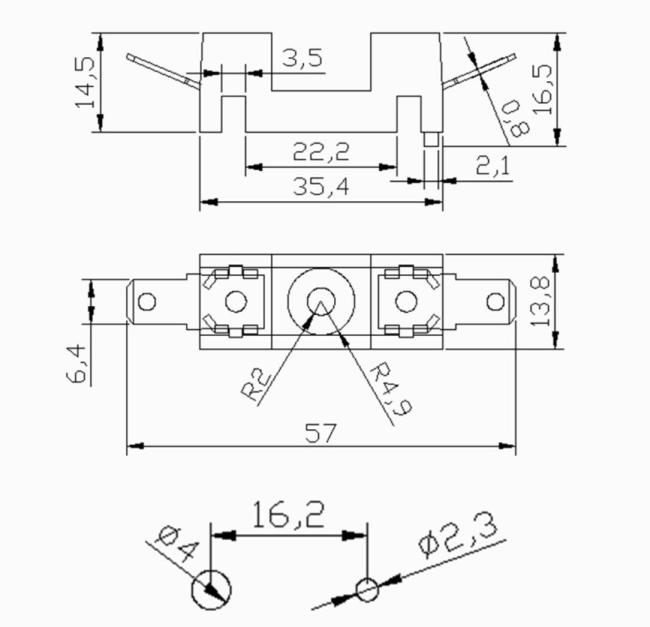

Drawing of the H3-67 fuse holder
Please allow 1-3mm tolerance due to manual measurement.
KEY WORDS: FUSE HOLDER. PCB FUSE HOLDER, 6x30 FUSE HOLDER, 3AG FUSE HOLDER, FUSE BLOCK
6.3x30 glass fuses
6.3x32 ceramic fuses
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
Express, By Air, By Sea
A: We are a fuse product factory.
A: 3 days if in stock, 10 to 20 days if not in stock
A: Yes, we could offer samples for free charge but do not pay the cost of freight.
A: 100% in advance, T/T.
H3-67 25A 250V /30A 300V PCB Mount 6x30 Fuse Holder for 6.3x32 fuses
