| Price | USD $0.3~$0.5 per piece |
| MOQ | 1000 |
| Delivery Time | 15 days |
| Brand | Tianrui |
| Place of Origin | China |
| Model Number | TR-C329 |
| Packaging Details | cartons |
| Payment Terms | T/T |
| Supply Ability | 10K pieces per week |
| Place of Origin | China | Halogen free | Yes |
| Packaging Details | cartons | Probe Material | Stainless Steel |
| Tolerance | ±1% | Scew Size | M8 |
| Model Number | TR-C329 | Supply Ability | 10K pieces per week |
| P/N | TR-C329 | Brand Name | Tianrui |
| Payment Terms | T/T | Item Name | ntc thermal sensor |
| R25 | 100KΩ | Price | USD $0.3~$0.5 per piece |
| Delivery Time | 15 days | Minimum Order Quantity | 1000 |
| Withstanding voltage | 1500V AC | RoHS Compliant | Yes |
| Cable Length | Customized | Tip Size | Φ5mm x7mm |
| B25/50 | 3990K | Insulation Resistance | >100MΩ@DC 500V |
TR-A11 100K Ohm 3990K 100KΩ 3990 M8 Screw NTC Sensor Stainless Steel Threaded Tip Thermistor Sensor
Product Description

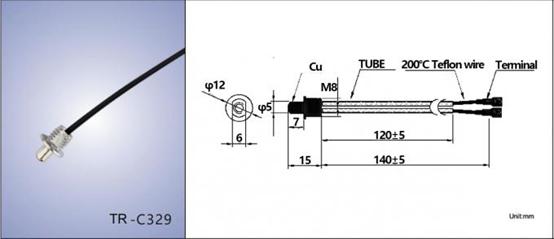

| Item | Screw Thread NTC Thermistor Sensor |
| Tip size | Φ5mm, x7mm |
| Screw sIze | M8 |
| Probe Length | 15mm |
| Sealed Material | Epoxy resin |
| Housing Material | Stainless steel |
| R25 | 100KΩ 1% |
| B Value | 3990K |
| Connector | C3, PH, etc |
| Special requirement | Waterproof, Antiacid, Anticorrosion, etc |
1. Fast response design TC≤6S
2. Accuracy ±1%
3. Excellent long-term stability
4. Operating range from-20℃ up to 250℃
5. Votage resistance AC 1500V 5 sec
6. DC500V insulating strength ≥100 MΩ
7. Sensor Materal can be Nickel-plated brass,brass,stainless steel
Applications
1. Gas boilers
2. Heating and air conditioning systems
3. Instant water heaters
4. Compressors
5. Health Pot
6. Electric Kettle
7. Coffe Maker
Options
Resistance, B value , cable length and connectors are customized
SPECIFICATION
| R25℃ | 100KΩ±1% |
| B25/50 | 3990K±1% |
| Operating temperature | -20~250℃ |
| Application | health pot,electric kettle, coffee maker |
Similar Models
| Specifiation | R25℃=50KΩ±1% |
| B25/50=3950K±1% | |
| Operating temperature | -20~150℃ |
| Application | water heater, wall hanging stove, etc. |
| Specifiation | R25℃=100KΩ±1% |
| B25/50=3950K±1% | |
| Operating temperature | -20~150℃ |
| Application | water heater,wall hanging stove, etc. |
| Specifiation | R25℃=10KΩ±1% |
| B25/50=3600K±1% | |
| Operating temperature | -20~125℃ |
| Application |
water heater,wall hanging stove,electric kettle, coffee maker,fish tank, etc. |
What is a thermistor?
A thermistor is a type of resistor whose resistance is strongly dependent on temperature, more so than in standard resistors. The word is a combination of thermal and resistor. Thermistors are widely used as inrush current limiters, temperature sensors (negative temperature coefficient or NTC type typically), self-resetting overcurrent protectors, and self-regulating heating elements (positive temperature coefficient or PTC type typically). An operational temperature range of a thermistor is dependent on the probe type and is typically in between −100 °C (173 K) and 300 °C (573 K).
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
Express, By Air, By Sea
A: We are a fuse product factory.
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 100% in advance, T/T.
