5x20 250 Volt PCB Fuse Holder Contact Resistant 22.6mm Pin Distance

Price	USD $0.1~$0.15 per piece
MOQ	1000
Delivery Time	10 work days
Place of Origin	China
Certification	UL VDE
Model Number	PTF-78 FH1
Packaging Details	Inner Box, Outer Carton
Payment Terms	T/T
Supply Ability	10K pieces per week

Product Details

Product Specification

Place of Origin	China	Max Temperature	260°C
Packaging Details	Inner Box, Outer Carton	Ir	6.3A
Model Number	PTF-78 FH1	Mounting Type	PCB
Supply Ability	10K pieces per week	Terminal	tin plated brass
Certification	UL VDE	P/N	PTF-78
Suitable for	5x20 fuses	Payment Terms	T/T
Item Name	Fuse Holder , Fuse Block	Price	USD $0.1~$0.15 per piece
Delivery Time	10 work days	Body Length	24.4mm
Minimum Order Quantity	1000	Pin Distance	22.6mm
RoHS Compliant	Yes	Ur	250V
Body	PA66, UL 94V-0	Power	1.6W

Product Description

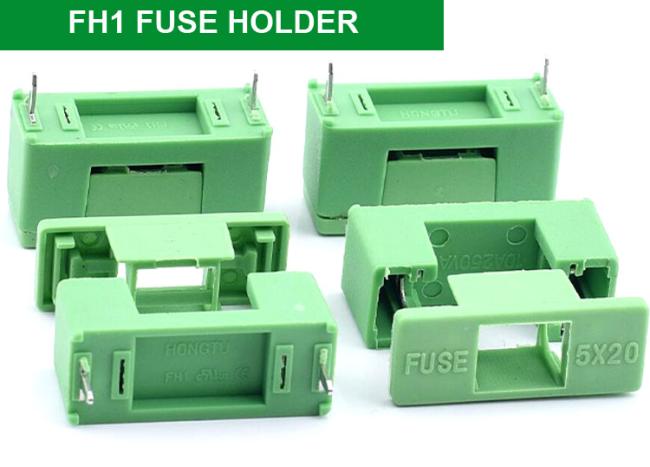

UL VDE 5x20 PCB Fuse Holder 22.6mm Pin Distance Fuse Block UL94V-0 250V 6.3A

Product Description

Item Name	PCB Mount Fuse Holder
Part No.	PTF-78
Electrical Rating	6.3A 250V
Body Color	green
Body Material	PA66 94V-0
Terminal material	tinned brass
Length	24.4mm
Wdth	9.4mm
Height	10.5mm
Pin Distance	22.6mm
Pin Length	3.5mm
Pin Thickness	0.5mm

Electrical Characteristics:

Rated Current:6.3A

Rated Voltage: 250Vac

Power: 1.6W

Contact Resistance: <5mΩ

lnsulation Resistance: >100mΩ

Dielectric Strength: >1000Vac/60sec.

Operation temperature: -10C~120C

Solder dwell time: <10s (Wave Soldering)

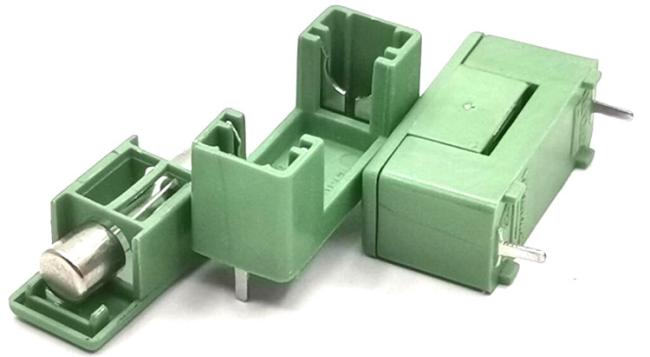

This pcb mount fuse holders is compatible with 5x20mm glass and ceramic fuses for overcurrent protection in electronics equipment, appliances, and lighting circuits. They are used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits. They are easy to install on the printed circuit boards.

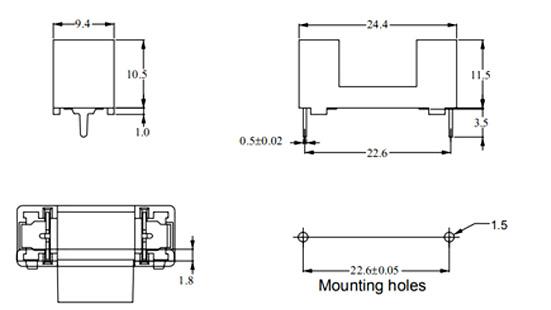

Drawing of the PTF-78 fuse holder
