500V AC Ceramic Cartridge Fuse 6.3x32mm Fast Blow 3AG For Replacement

Price	USD $0.1~$0.35 per piece
MOQ	1000
Delivery Time	10 work days
Brand	REOMAX
Place of Origin	China
Certification	UL cUL
Model Number	6.500
Packaging Details	200pcs per bag, 2000pcs per box, 8000pcs per carton
Payment Terms	T/T
Supply Ability	10 million pieces per month

Product Details

Product Specification

UL Listed	Yes	Halogen free	Yes
Voltage Rating	500V	Packaging Details	200pcs per bag, 2000pcs per box, 8000pcs per carton
contact material	nickel plated brass	Blow type	slow blow
Standard	UL	Supply Ability	10 million pieces per month
Fusing material	tinned copper	MPQ	200pcs per bag
Minimum Order Quantity	1000	Place of Origin	China
Current Rating	0.1A~30A	Model Number	6.500
Mounting Type	cartridge or axial leaded	Certification	UL cUL
Brand Name	REOMAX	Payment Terms	T/T
Item Name	ceramic tube fuse	Price	USD $0.1~$0.35 per piece
Delivery Time	10 work days	Part No.	6.500
Tube material	ceramic	RoHS Compliant	Yes
Applied to	6x32 fuses	Package	200pcs per bag, 2000pcs per box, 8000pcs per carton

Product Description

500V Ac 500Vdc 6.3x32 6x32 3AG Cartridge Fuse Fast Blow Ceramic Fuse Link 500V Tube Fuse For Replacement

Item	Ceramic Fuse
Standard	UL
Blow Type	fast acting
Body Material	ceramic
Fusing wire Material	Alloy
Filler	silicon
Cap Material	nickel plated brass
Voltage Rating	500 VAC 500 VDC
Current Rating	0.1A~30A
Mounting Type	cartridge or axial leaded
Breaking Capacity	10KA 1KA
Dimension	6.35x31.75 mm 6.3x32 6x32 3AG
Certificates	CUL UL
Applications	home appliance, power supply, telecommunication, consuming electronics

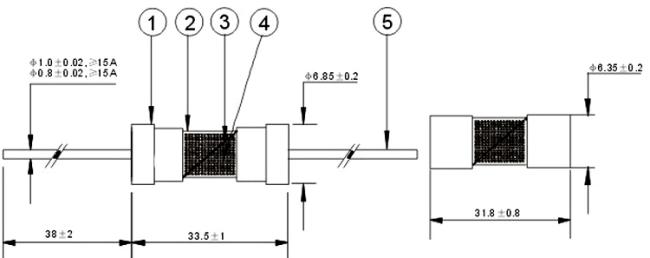

6x32 Fuses Drawing

Left one is axial leaded ones with pigtails

Product Features

Ambient Temperature: -55℃ ~ 125℃ (Consider de-rating)

Stored condition: at temperature of +10℃~60℃, relative humidity ≤ 75%.

Soldering pot temperature: <260℃; Solder dwell time: 2∼5s

Resistance to Soldering Heat: 260℃, 10s. (Wave); 350℃, 5s.

Solderability: 260℃, ≤ 3s. (Wave); 350±10℃, ≤ 3s.

Breaking Capacity UL certified

Amps	Volts	Interrupting Rating
0.1A - 12A	500V ac, 500V dc	10KA
0.1A - 30A	500V ac, 500V dc	1KA

Specification

Amp Code	Rated Current	Rated Voltage	Approvals
Amp Code	Rated Current	Rated Voltage	cURus
0100	100mA	500V AC 500V AC	●
0200	200mA		●
0250	250mA		●
0315	315mA		●
0400	400mA		●
0500	500mA		●
0630	630mA		●
0800	800mA		●
1100	1A		●
1125	1.25A		●
1150	1.5A		●
1160	1.6A		●
1200	2A		●
1250	2.5A		●
1300	3A		●
1315	3.15A		●
1400	4A		●
1500	5A		●
1630	6.3A		●
1700	7A		●
1800	8A		●
2100	10A		●
2125	12.5A		●
2150	15A		●
2160	16A		●
2200	20A		●
2250	25A		●
2300	30A		●

Blow Time

Time vs Current Characteristics:UL248-1/14
Rated current	100%	200%
Blowing Time	>4hs	<5s

Standard Package

200pcs per bag, 2000pcs per box, 8000pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

Test Equipment

Company warehouse

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the samples for free charge but do not pay the cost of freight.

Q: What are your terms of payment ?

A: 100% in advance, T/T.

500V ac 500Vdc 6.3x32 6x32 3AG Cartridge Fuse Fast Blow Ceramic Fuse Link 500V Tube Fuse for Replacement
