5.2x20 Waterproof Inline Fuse Holders 10A Bayonet Type PP Nylon

Price	USD $0.05~$0.3 per piece
MOQ	1000
Delivery Time	10 work days
Place of Origin	China
Model Number	SL-702
Packaging Details	Carton
Payment Terms	T/T
Supply Ability	100K pieces per month

Product Details

Product Specification

Place of Origin	China	Packaging Details	Carton
Wire gauge	18AWG 20AWG	Body length	42.2 mm
Model Number	SL-702	Supply Ability	100K pieces per month
Payment Terms	T/T	Item	fuse holder
Body Material	PP/PA66	Terminal Material	brass
Price	USD $0.05~$0.3 per piece	Delivery Time	10 work days
Mount Type	Inline, in-line	Minimum Order Quantity	1000
Voltage	250V	RoHS Compliant	Yes
Applied to	5x20mm fuses	Cap Type	bayonet mount
Wire length	Customized	Current	10A

Product Description

5.2x20 Tube Fuse Block In-Line Mount 5x20 White Bayonet Type Fuse Holder With 18AWG 20AWG Cable PP/Nylon Material

Product Description

For 5x20 FUSES

Withstanding Voltage:>AC2000V/1min
lnsulation Resistance:≥100mΩ DV500V
Electrical:Rated at 10A 250V AC
Insulating Body: PA66, PP
Konb:Screw, Spring loaded.
Terminals:brass
Ambient temperature:-20C to +125C

Item	5x20 white Fuse Holder
Mouting Style	In-line
Max Rating	10A 250V
Certifications	RoHS
Body Color	white
House material	PP/Nylon
Terminal material	brass
Body length	42.2mm
Hole diameter	3.5mm
Body diameter	13.2mm

Fearures of 5x20 In-line Mount Fuse Holder

1.Easy installation: reasonable deisgn with small volume.

2.Safety: Excellent electrical engineering material body and UL standard PVC cable ensure safe operation.

3.High reliability: finely made brass contacts and screw structure ensures the fuses are in full contact with the terminals.

Wide range and customized services

Fuses Amperes	0.2A 0.315A 0.5A 1A 2A 3.15A 4A 5A 6.3A 8A 10A 12A 15A 16A 20A (UL)
Wire Gauge	18AWG 20AWG(UL1015 PVC)
Custom Cable	length & color (upon request)

Structure	body, terminal contacts x2, spring, wire, fuse
Electrical rating	250V 10A max
Body Material	PP, nylon/PA66
Contact Material	Brass
Wire Material	PVC and tinned copper

Drawing

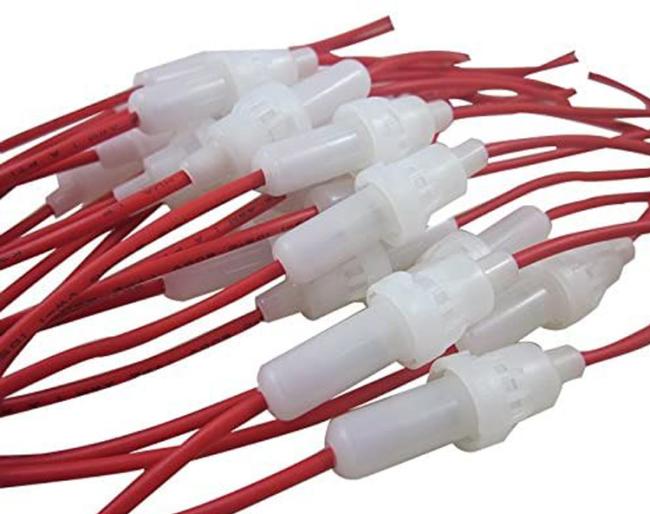

5x20 fuse holder with fuses preinstalled

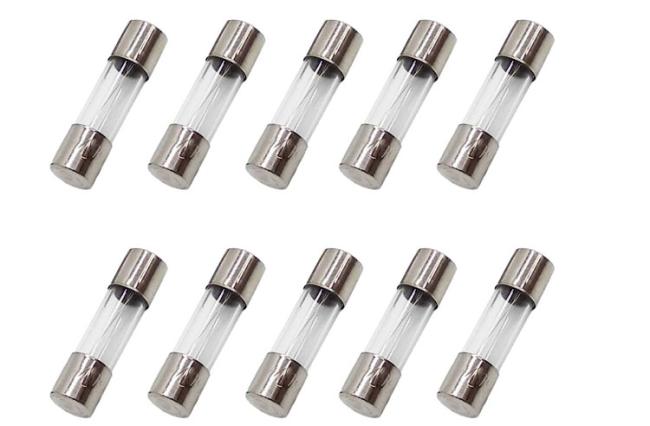

5x20 glass fuses

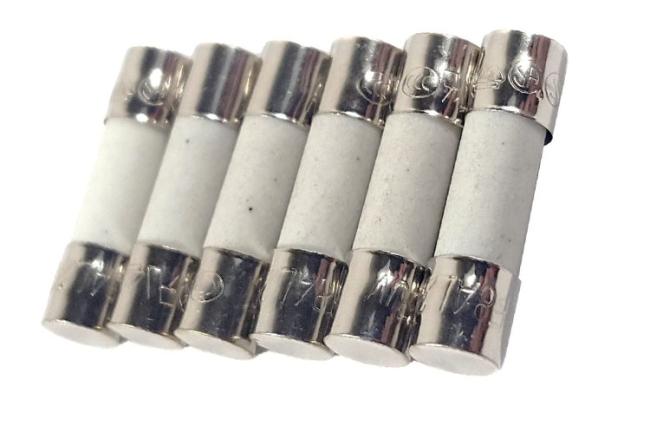

5x20 ceramic fuses

Applications

Electronic boards, Car, Boat, Truck, SUV, Motorcycle, etc.

Standard Package:

depends on the cable spec

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

5.1.2. Requirements and characteristics

The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:

IEC-publication 257 (1968) and Amendment no. 2 to this publication dated January 1989.
UL-standard no. 512.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.

5.2x20 tube fuse block in-line mount 5x20 white bayonet type fuse holder with 18AWG 20AWG cable PP/Nylon Material

Item	5x20 white Fuse Holder
Mouting Style	In-line
Max Rating	10A 250V
Certifications	RoHS
Body Color	white
House material	PP/Nylon
Terminal material	brass
Body length	42.2mm
Hole diameter	3.5mm
Body diameter	13.2mm
