| Price | USD $0.04~$0.1 per piece |
| MOQ | 10000 |
| Delivery Time | 10 work days |
| Brand | REOMAX |
| Place of Origin | China |
| Certification | UL cUL VDE CQC |
| Model Number | SFP FBP STP TBP |
| Packaging Details | 500pcs per bag, 20000pcs per carton |
| Payment Terms | T/T |
| Supply Ability | 1 million pieces per week |
| Place of Origin | China | Halogen free | Yes |
| Voltage Rating | 250V | Packaging Details | 500pcs per bag, 20000pcs per carton |
| Current Rating | 0.1~10A | Blow type | fast blow, slow blow |
| Standard | UL or VDE | Model Number | SFP FBP STP TBP |
| Mounting Type | axial leaded | Supply Ability | 1 million pieces per week |
| Certification | UL cUL VDE CQC | Fusing material | tinned copper |
| MPQ | 500pcs per bag | Brand Name | REOMAX |
| Payment Terms | T/T | Item Name | Glass fuse |
| Price | USD $0.04~$0.1 per piece | Delivery Time | 10 work days |
| Minimum Order Quantity | 10000 | RoHS Compliant | Yes |
| Package | 500pcs per bag, 20000pcs per carton | Cap material | nickel plated brass |
| Body material | glass |
3.6x10 Glass Tube Fuses Slow Blow Axial Lead Fuse 3.6x10mm Glass Fuse 250V 0.1A~10A
Description
| Item | Glass Fuse |
| Standard | UL or VDE |
| Blow Type | fast acting |
| Body Material | glass |
| Leads Material | tinned copper |
| Voltage Rating | 250V 125V |
| Current Rating |
0.1A 0.125A 0.16A 0.2A 0.25A 0.3A 0.315A 0.35A 0.4A 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 2.5A 3A 3.15A 3.5A 4A 5A 6A 6.3A 7A 8A 10A |
| Mounting Type | axial leaded |
| Breaking Capacity | 35A |
| Size | 3.6x10mm 0.14" x 0.39"(D*L) |
| Applications | home appliance, power supply, telecommunication, consuming electronics |
Blowing Characteristics
Fast blow
| Time vs Current Characteristics: IEC 60127 | ||||
| Rated current | 210% | 275% | 400% | 1000% |
| Blowing Time | <30min | 10ms~3s | 3ms~300ms | <20ms |
| Time vs Current Characteristics:UL248-1/14 | ||||
| Rated current | 100% | 135% | 200% | 1000% |
| Blowing Time | >4hs | <1h | <5s | >10ms |
Time delay
| Time vs Current Characteristics: IEC 60127 | ||||
| Rated current | 210% | 275% | 400% | 1000% |
| Blowing Time | <2min | 400ms~10s | 150ms~3s | 20ms~150ms |
| Time vs Current Characteristics:UL248-1/14 | ||||
| Rated current | 100% | 135% | 200% | 1000% |
| Blowing Time | >4hs | <1h | <120s | >10ms |
Dimension

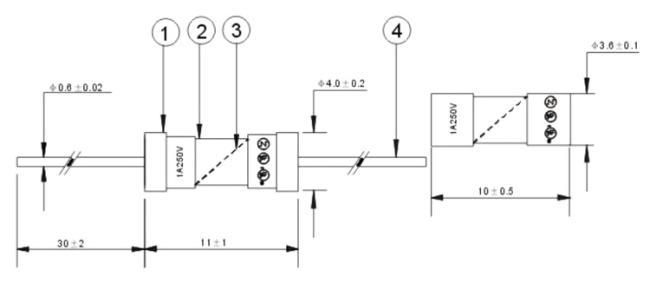

Fast blow

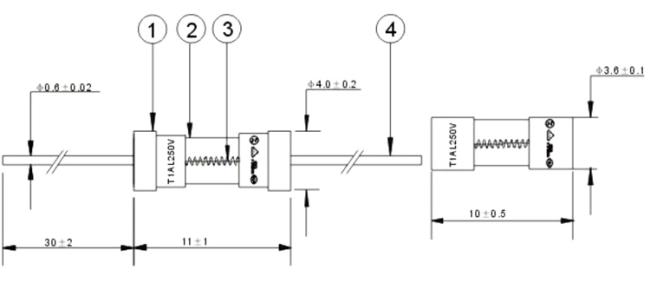

Slow blow

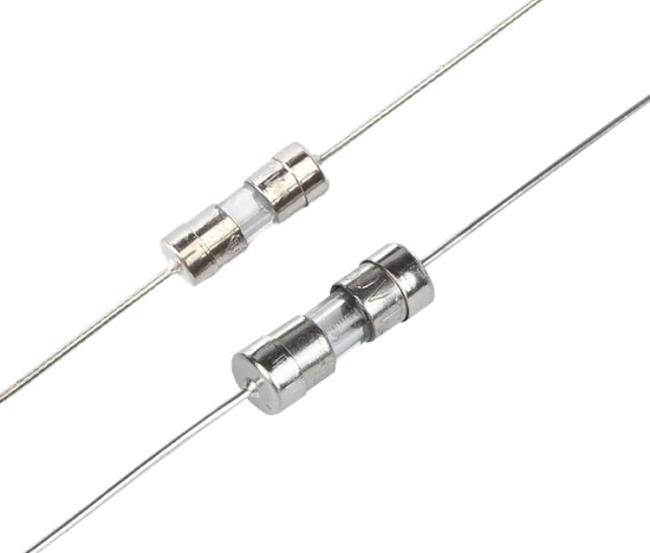

Detailed picture
Standard Package:
500pcs per bag, 20000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
About Us
Founded in 1999, we are focused on manufacturing fuses for over-current, over-temperature and other circuit protection components. Our fuse products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters.
The first step is to answer the following questions:
The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:
A: We are a fuse product factory.
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 100% in advance, T/T.
