KSD302 Manual Reset Thermal Switch 20A Bipolar Bimetal Thermostat Switch

Price	USD $0.15~$0.35 per piece
MOQ	1000
Delivery Time	15 days
Place of Origin	China
Certification	CQC
Model Number	KSD302
Packaging Details	100pcs per bag
Payment Terms	T/T
Supply Ability	50K pieces per month

Product Details

Product Specification

Place of Origin	China	Halogen free	Yes
Voltage Rating	250V AC	Packaging Details	100pcs per bag
Current Rating	15A 16A 20A	Terminal Type	horizontal, upright
Action temp	0~280 Celsius Degree	Model Number	KSD302
Supply Ability	50K pieces per month	Certification	CQC
MOQ	1000pcs	MPQ	100pcs
Payment Terms	T/T	Closing type	normally closed, normally open
Item Name	thermal switch, bimetal thermostat, thermal protector	Terminal Size	4.8mm 6.3mm
Reset Type	automatic, manual	Price	USD $0.15~$0.35 per piece
Delivery Time	15 days	Part No.	ksd301
Minimum Order Quantity	1000	Life	10000 cycles
RoHS Compliant	Yes

Product Description

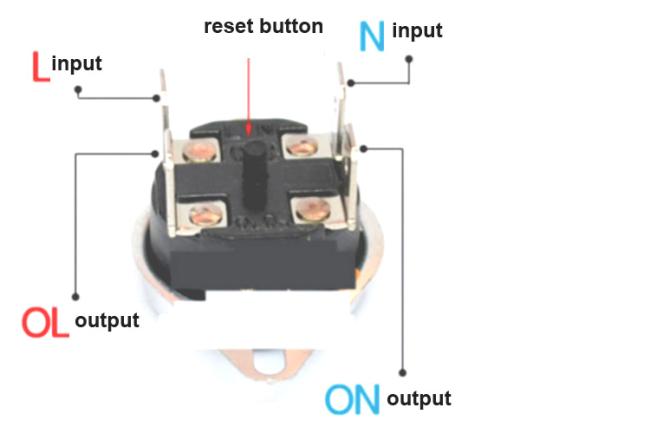

KSD302 KSD302X 250V 15A 16A 20A Automatic Manual Reset Bimetal Thermostat 4-leg bipolar thermal switch 84C 93C
Product Description

Rated current(Ir): 15A 16A 20A

Rated voltage(Ur): 250V ac;

Action temperature Tolerance:±5℃

Electric intensity:AC2000V 50/60Hz lasting for 1min;no breakdown, no flashover

Contact resistance:﹤50mΩ

Insulation resistance:﹥100MΩ

Response speed:≤1℃/min

Operation cycles: ﹥30000 Times

Approvals: CQC

Action temperature & reset temperature

Action temperature	Reset temperature	Action temperature	Reset temperature
45 ±5℃	40±6℃	145 ±5℃	115±15℃
50 ±5℃	43±6℃	150 ±5℃	120±15℃
55 ±5℃	45 ±6℃	155 ±5℃	125±15℃
60 ±5℃	50 ±10℃	160 ±5℃	130±15℃
65 ±5℃	50 ±10℃	165 ±5℃	135±15℃
70 ±5℃	50 ±10℃	170 ±5℃	140±15℃
75 ±5℃	55 ±10℃	175 ±5℃	145±15℃
80 ±5℃	55 ±10℃	180 ±5℃	150±15℃
85 ±5℃	55 ±10℃	185 ±5℃	160±15℃
90 ±5℃	60 ±10℃	190 ±5℃	165±15℃
95 ±5℃	65 ±10℃	200 ±5℃	170±15℃
100 ±5℃	75 ±10℃	210 ±5℃	175±15℃
105 ±5℃	80 ±15℃	215 ±5℃	180±15℃
110 ±5℃	80 ±15℃	220 ±5℃	185±15℃
115 ±5℃	85 ±15℃	230 ±5℃	195±15℃
120 ±5℃	90 ±15℃	240 ±5℃	205±15℃
125 ±5℃	95 ±15℃	250 ±5℃	215±15℃
130 ±5℃	100 ±15℃	260 ±5℃	225±15℃
135 ±5℃	105 ±15℃	270 ±5℃	235±15℃
140 ±5℃	110 ±15℃	280 ±5℃	245±15℃
Custom specification can be manufactured as request.

Advantages

Mounting Suggestion

Application

Mainly used for microwave,oven,coffee maker,Speed Cook oven,heater,Dryer,gas furnace,Bath Vent/Heater,wall heater,motor electric heating water dispenser, water bottles, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, motor cleaner
