Time Lag 125V 20A Slow Blow Fuse ceramic 1206 SMD Fuse surface mount

Price	USD $0.05~$0.1 per piece
MOQ	3000
Delivery Time	10 work days
Brand	REOMAX
Place of Origin	China
Certification	UL cUL
Model Number	R12.100
Packaging Details	3000pcs per reel
Payment Terms	T/T
Supply Ability	5 million pieces per month

Product Details

Product Specification

Place of Origin	China	Halogen free	Yes
Voltage Rating	24V 32V 63V 72V 125V dc	Packaging Details	3000pcs per reel
Current Rating	0.25A~30A	Blow type	slow
Standard	UL 248-14	Model Number	R12.100
Mounting Type	surface mount	Supply Ability	5 million pieces per month
Certification	UL cUL	Fusing material	alloy
MOQ	3000pcs	Brand Name	REOMAX
Payment Terms	T/T	Item Name	1206 SMD Fuse
Price	USD $0.05~$0.1 per piece	Delivery Time	10 work days
Part No.	R12.100	Minimum Order Quantity	3000
RoHS Compliant	Yes	Applied to	3.2x1.6x0.75 mm
Body material	ceramic

Product Description

3.2x1.6x0.75 Surface Mount Fuse Time Lag 24V 32V 63V 72V 125V 1206 SMD Fuse Slow Blow 0.25A~30A

Description

R12.100 Series are the fuses set the industry standard for performance,reliability and quality.The solder-free design provides excellent on-off andtemperature cycling characteristics during use and also makes our SMD fusesmore heat and shock tolerant than typical subminiature fuses.

Item	1206 SMD Fuse
Standard	UL
Blow Type	slow blow
Body Material	ceramic
Fusing Material	alloy
Voltage Rating	24V 32V 63V 72V 125V dc
Current Rating	0.25A 0.375A 0.5A 0.75A 1A 1.5A 2A 2.5A 3A 3.5A 4A 4.5A 5A 6A 7A 8A 10A 12A 15A 20A 25A 30A
Mounting Type	Surface Mount
Size	3.2x1.6x0.75 mm
Package	3000pcs per reel

Product Features

Rapid interruption of excessive current
Compatible with reflow and wave solder
Ceramic and glass construction
One time positive disconnect
Lead free and Halogen free material
Tape and Reel for automatic SMT placement

Specification

Drawing of the 1206 SMD fuse

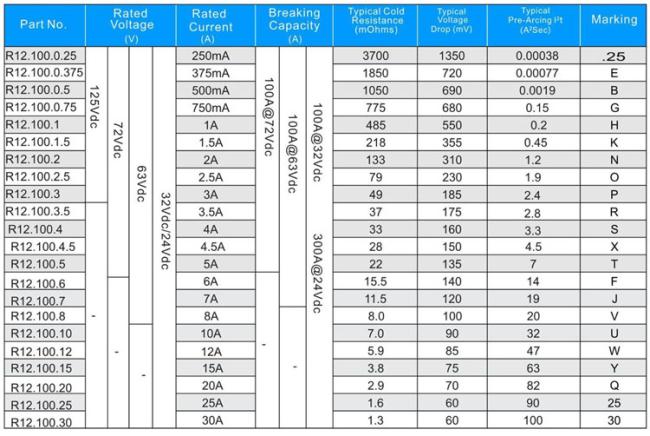

Electrical Characteristics at 25℃

SMD fuse 2410 and 1032 sizes

SMD fuses production machine

Standard Package:

1,500 pcs per reel

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

Test Equipment

Company warehouse
Reomax was founded in 1999, and focus on manufacturing fuses for over-current, over-temperature and other circuit protection components. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters. We have acquired ISO9001/UL/cUL/VDE/CCC/CQC safety regulations certificate.
After served our valuable clients in China market over 10 years, Reomax fuses are becoming one of the leading fuses suppliers, and in order to create more value and save more cost for our global clients, we start to provide the shortest fuses product supply chain mode and we are now available in worldwide.
