| Price | USD $0.03~$0.1 per piece |
| MOQ | 5000 |
| Delivery Time | 10 work days |
| Brand | REOMAX |
| Place of Origin | China |
| Certification | UL cUL |
| Model Number | R06.100 |
| Packaging Details | 5000pcs per reel |
| Payment Terms | T/T |
| Supply Ability | 5 million pieces per month |
| Place of Origin | China | Halogen free | Yes |
| Voltage Rating | 32V 63V dc | Packaging Details | 5000pcs per reel |
| Current Rating | 0.25A 0.375A 0.5A 0.75A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A | Blow type | slow |
| Standard | UL 248-1 | Model Number | R06.100 |
| Mounting Type | surface mount | Supply Ability | 5 million pieces per month |
| Certification | UL cUL | Fusing material | alloy |
| MOQ | 5000pcs | Brand Name | REOMAX |
| Payment Terms | T/T | Item Name | 0603 SMD Fuse |
| Price | USD $0.03~$0.1 per piece | Delivery Time | 10 work days |
| Part No. | R06.100 | Minimum Order Quantity | 5000 |
| RoHS Compliant | Yes | Applied to | 1.6x0.82x0.45 mm |
| Body material | ceramic |
0603 SMD Fuse Slow Blow 32V 63V SMT Fuse 0.25A 0.5A 0.75A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A
Description
| Item | 0603 SMD Fuse |
| Standard | UL |
| Blow Type | slow blow |
| Body Material | ceramic |
| Fusing Material | alloy |
| Voltage Rating | 32V 63V dc |
| Current Rating | 0.25A 0.375A 0.5A 0.75A 1A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6A 7A 8A |
| Mounting Type | Surface Mount |
| Size | 1.6x0.82x0.45 mm |
| Package | 5000pcs per reel |
Product Features
Stored condition: at temperature of +10℃~60℃, relative humidity ≤ 75%.
A:Soldering pot temperature: 260℃ Max; Solder dwell time: <5s (Wave Soldering)
B:Solder Iron Temperature: 350±5℃, heating time: 1~2s. (Hand Soldering)
Specification
Drawing of the 0603 SMD fuse

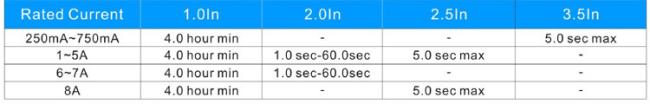

Blowing time 0603 slow blow smd fuses
1206 & 1032 SMD fuses:
SMD fuses production machine
Standard Package:
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
The first step is to answer the following questions:
The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:
A: We are a fuse product factory.
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: 100% in advance, T/T.
