| Price | USD $0.05~$0.1 per piece |
| MOQ | 2000 |
| Delivery Time | 10 work days |
| Brand | REOMAX |
| Place of Origin | China |
| Model Number | MFC |
| Packaging Details | 200pcs per bag, 2000pcs per box, 8000pcs per carton |
| Payment Terms | T/T |
| Supply Ability | 10 million pieces per month |
| UL Listed | Yes | Halogen free | Yes |
| Voltage Rating | 250V | Size | 6x30 6.35x31.75 6x32 6.3x32 |
| Packaging Details | 200pcs per bag, 2000pcs per box, 8000pcs per carton | Blow type | fast |
| Standard | UL | Supply Ability | 10 million pieces per month |
| Fusing material | tinned copper | MPQ | 200pcs per bag |
| Minimum Order Quantity | 2000 | Place of Origin | China |
| Current Rating | 0.1A~30A | Model Number | MFC |
| Mounting Type | cartridge or axial leaded | Brand Name | REOMAX |
| Payment Terms | T/T | Item Name | Glass tube fuse |
| Price | USD $0.05~$0.1 per piece | Delivery Time | 10 work days |
| Part No. | MFC | Tube material | glass |
| RoHS Compliant | Yes | Package | 200pcs per bag, 2000pcs per box, 80000pcs per carton |
| Cap material | nickel plated brass |
6x30 6.35x31.75 6x32 6.3x32mm Cartridge Fuse Glass Tube 3AG 250V Fast Acting Fuse
Description
| Item | 6x30 6.35x31.75 6x32 6.3x32 Glss Tube Fuse |
| Standard | UL |
| Blow Type | fast |
| Tube Material | glass |
| Fusing Material | tinned copper |
| Cap Material | nickel plated brass |
| Rated Voltage | 250V ac |
| Rated Current | 0.1A~30A |
| Mounting Type | cartridge or axial leaded |
| Breaking Capacity | 35A 100A 200A |
| Certification | CUL UL VDE CCC |
| Applications | home appliance, power supply, telecommunication, consuming electronics |

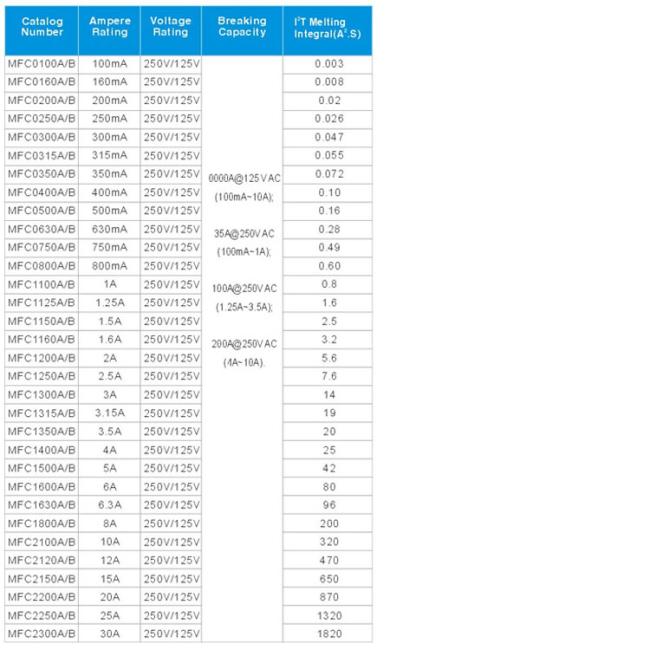

MFC 6x30 glass fuse specification
Dimension
Breaking Capacity
| Amps(A) | Volts(V) | Interrupting Rating(A) |
| 0.1 - 10 | 125V ac | 10000 |
| 0.1 - 1 | 250V ac | 35 |
| 1.25- 3.5 | 250V ac | 100 |
| 4 - 10 | 250V ac | 200 |
| Time vs Current Characteristics | |||
| Rated current | 100% | 135% | 200% |
| Blow Time | >4h | <1h | <5s |
|
Amp Code |
Rated Current |
Rated Voltage |
Voltage Drop (mV) |
Max.Power Dissipation(W) |
Typical Cold Resistance (mΩ) |
Nominal Melting I2t(A2sec) |
Breaking Capacity |
| 0250 | 250mA |
125V AC 25V AC |
1400 | 1.6 | 570 | 0.026 |
10KA/125VAC 100A/250VAC |
| 0315 | 315mA | 1300 | 1.6 | 860 | 0.109 | ||
| 0400 | 400mA | 1200 | 1.6 | 540 | 0.240 | ||
| 0500 | 500mA | 1000 | 1.6 | 220 | 0.168 | ||
| 0630 | 630mA | 650 | 1.6 | 285 | 0.723 | ||
| 0800 | 800mA | 240 | 1.6 | 120 | 0.757 | ||
| 1100 | 1.00A | 200 | 1.6 | 101 | 1.64 | ||
| 1125 | 1.25A | 200 | 1.6 | 65.0 | 2.56 | ||
| 1150 | 1.50A | 190 | 1.6 | 51.47 | 3.76 | ||
| 1160 | 1.60A | 190 | 1.6 | 50.35 | 4.00 | ||
| 1200 | 2.00A | 170 | 1.6 | 40.65 | 5.76 | ||
| 1250 | 2.50A | 170 | 1.6 | 30.00 | 9.61 | ||
| 1300 | 3.00A | 150 | 2.5 | 25.00 | 13.9 | ||
| 1315 | 3.15A | 150 | 2.5 | 24.00 | 20.7 | ||
| 1400 | 4.00A | 130 | 2.5 | 17.60 | 22.1 | ||
| 1500 | 5.00A | 130 | 2.5 | 13.50 | 41.0 | ||
| 1630 | 6.30A | 130 | 2.5 | 10.60 | 70.6 | ||
| 1700 | 7.00A | 130 | 2.5 | 9.48 | 106 | ||
| 1800 | 8.00A | 130 | 4 | 7.50 | 164 | ||
| 2100 | 10.00A | 130 | 4 | 6.30 | 272 | ||
| 2125 | 12.50A | 100 | 6 | 3.80 | 702 | ||
| 2160 | 16.00A | 100 | 6 | 3.10 | 1332 |
Standard Package:
500pcs per bag, 5000pcs per box, 20000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
| Standard Package | 1,000 |
|---|---|
| Category | Circuit Protection |
| Family | Fuses |
| Series | 312 |
| Packaging | Bulk |
| Fuse Type | Cartridge, Glass |
| Current Rating | 2A |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | - |
| Response Time | Fast |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Mounting Type | Holder |
| Breaking Capacity @ Rated Voltage | 100A |
| Melting I²t | 5.2 |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| DC Cold Resistance | 0.0704 Ohm |
| Dynamic Catalog | 312 Series |
| Associated Product |
F3781-ND
-
FUSE
CLIP
3AG/3AB
EAR
TIN
PCB
F1498-ND
-
FUSE
BLOCK
3AG
1POS
PCB
MNT
|
| Other Similar Models |
0312002.MXP-ND 0312002MXP 312002.MXP 312002MXP F1760 |
