500A Mega Bolt On Fuse Holder ANM Automotive High Current

Price	USD $2.5~$3 per piece
MOQ	100
Delivery Time	10 work days
Place of Origin	China
Model Number	ANM-H
Packaging Details	100pcs per bag, 5000pcs per box
Payment Terms	T/T
Supply Ability	1K pieces per week

Product Details

Product Specification

Place of Origin	China	Halogen free	Yes
Voltage Rating	60V dc	Fire retardant grade	UL 94V-0
Packaging Details	100pcs per bag, 5000pcs per box	Model Number	ANM-H
Supply Ability	1K pieces per week	Terminal material	deformed steel, nickel plated brass
Payment Terms	T/T	Mounting Torque	5NM
Item Name	Bolt Down Fuse Holder, fuse block	Current Ratin0.1A~20Ag	500A max
Price	USD $2.5~$3 per piece	Delivery Time	10 work days
Part No.	ANM-H	Minimum Order Quantity	100
RoHS Compliant	Yes	Mounting Stud	Dia 8mm
Mounting Hole distance	101.5 mm	House material	PA66

Product Description

Automotive Marine MEGA Fuse Holder ANM Bolt-On Fuse Block ANM-H For High Current Fuses

Product Description

Product Name	MEGA Fuse Holder ANM Bolt-on Fuse Block ANM-H
Types	Bolt-down, with or wothour window
Volt Rating	60V dc
Blow Types	standard
Environmental	Lead and Ph free
Package	100pcs per carton

It is designed for high current circuit protection up to 500A.
The MEGA Fuse also provides time delay characteristics

· Fits All MEGA Fuses

· Use With MEGA Fuses Up To 500 Amps, 32V

· Studs: M8 Threaded, Mounting Torque: 5 Nm

· Includes Protective Cover

· Fuse NOT Included

Suitable for new energy electricvehicles, forklifts, motor controllers,charging piles,

rechargeable motors,ships and other low-voltage electrical appliances.

This fuse is ideal for battery and alternator protection application and other heavy

gauge cables requiring ultra-high current protection.

Specification	Parameters
Voltage Rating:	32 VDC
Temperature Range:	-40°C to +105°C
Terminals:	deformed steel, nickel plated copper
Housing Material:	PA66

Item Weight	‎2.39 ounces
MPQ	100pcs per carton
Package Dimensions	‎4 x 3 x 2.8 inches
Material	‎PA66
Voltage	‎32 Volts
Batteries Required?	‎No

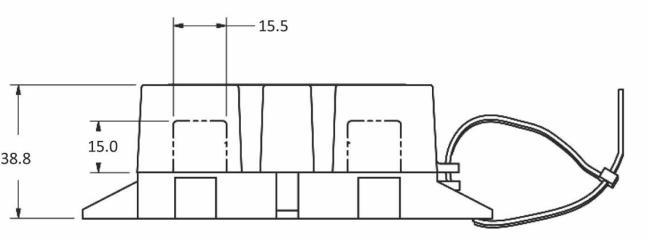

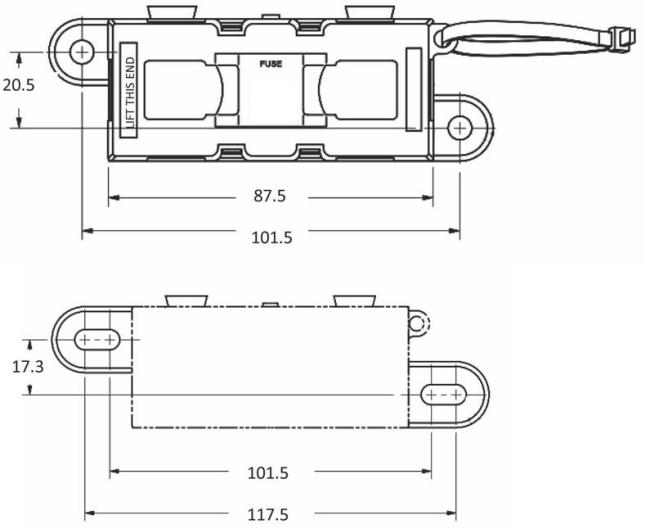

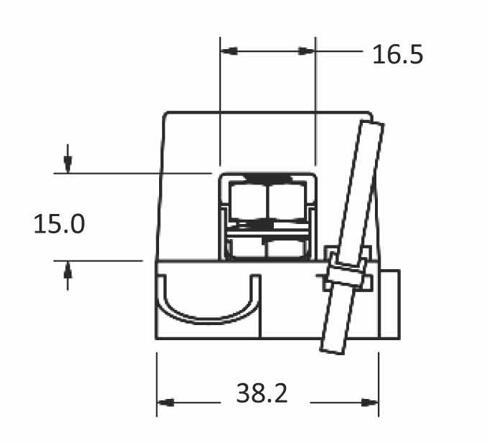

Drawing of MEGA Fuse Holder ANM Bolt-on Fuse Block ANM-H

A fuse is a device designed to interrupt the electrical circuiut when subjected to overcurrent.
This action is to be nonreversible and the fuse is intended to be replaced after the circuit,malfunction has been corrected.

Automotive fuses are a class of fuses used to protect the wiring and electrical equipment for vehicles. They are generally rated for circuits no higher than 32 volts direct current, but some types are rated for 42-volt electrical systems. They are occasionally used in non-automotive electrical products.

Standard Package

100pcs per carton

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?
