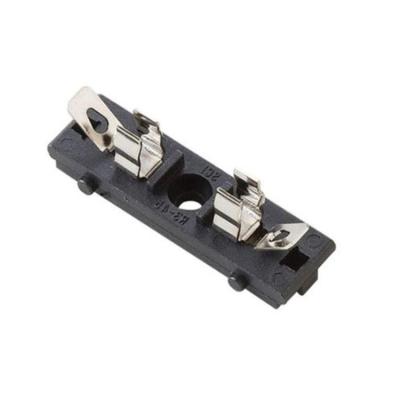

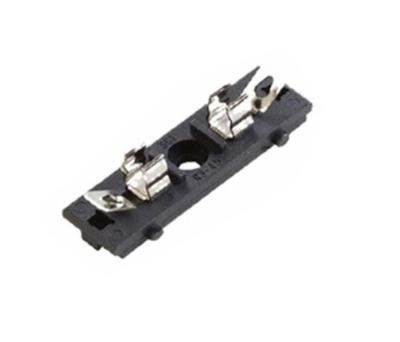

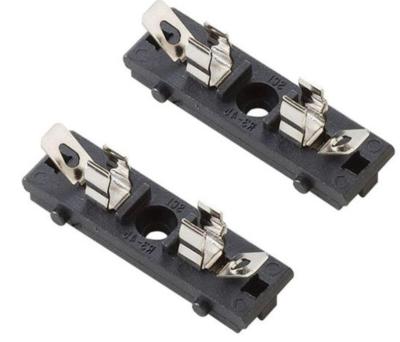

6x30 6X32 15A PCB Mount Fuse Holder 125V PBT Fire retardant

Price	USD $0.3~$0.5 per piece
MOQ	1000
Delivery Time	10 work days
Brand	SCI
Place of Origin	China
Certification	UL CSA
Model Number	R3-45B
Packaging Details	Inner Box, Outer Carton
Payment Terms	T/T
Supply Ability	10K pieces per week

Product Details

Product Specification

Place of Origin	China	Voltage Rating	250V 125V
Packaging Details	Inner Box, Outer Carton	Current Rating	10A 15A
Terminal Type	quick connect	Body length	39.6mm
Model Number	R3-45B	Supply Ability	10K pieces per week
Certification	UL CSA	Terminal material	nickel plated brass
Brand Name	SCI	Payment Terms	T/T
Body Material	PBT	Price	USD $0.3~$0.5 per piece
Delivery Time	10 work days	Mount Screw	M3
Mount Type	PCB mount	Minimum Order Quantity	1000
Flammability	UL 94V-0	RoHS Compliant	Yes
Applied to	6x30 6.3x32 fuses

Product Description

R3-45B 6x30 6X32 Fuse Holder 250A 10A 125V 15A PCB Fuse Block

Product Description

6x30 Fuses are optional.

Item	R3-45B PCB Fuse Holder
Max Rating	10A 250V, 15A 125V
Certifications	UL CSA RoHS
Body Color	black
House material	PBT
Terminal material	nickel plated brass
Length	39.6mm
Wdth	11mm
MOQ	1000PCS

Fearures of the R3-45B PCB Fuse Holder Fuse Block

For 6x30 or 6.3x32 mm FUSES

UL CSA approved
Electrical:rated at 10A at 250V AC, 15A at 125Vac
4.8 quick connect terminals

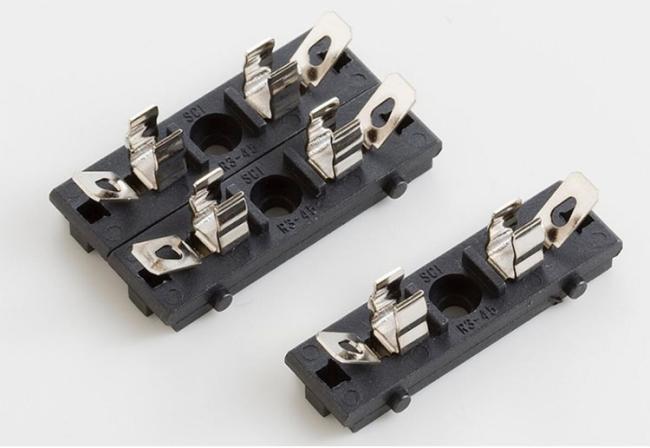

stackable structure, string array
pcb mounting terminals
UL 94V-0 material

1.Easy installation: stackable deisgn (string array) with small volume.

2.Reliable: Fire retardant bakelite body and UL 94V-0 standard and nickel plated terminals

3. Internationally recognized

Techinical parameters of UL listed R3-45B 6x30 PCB fuse holder

Structure	Mounted by M3 screws
Electrical rating	250V 8A, 250V 10A, 125V 15A
Body Material	PBT
Contact Material	Brass
Terminal	4.8 quick connect

Contact resistance: <5mΩ

Degree of protection: IP00

Drawing of the R3-45B 6x30 fuse holder pcb mount

Please allow 1-3mm tolerance due to manual measurement.

R3-45B fuse holders

Package	100pcs per bag
Warranty period	2 years
Lead time	10 days
Operation temperature	-30C to +85C
OEM	N/A

KEY WORDS: FUSE HOLDER. PCB FUSE HOLDER, 6X30 FUSE HOLDER, R3-45B FUSE HOLDER

Applications

Electrical

Standard Package:

depends on the cable spec

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Selection of the Fuse and Holder Solution

The first step is to answer the following questions:

Will the fuse need to accessible for replacement?
How often will the fuse need to be replaced?
Should the end customer of the appliance have access to change the fuse?
Should the fuse only be accessible from outside the appliance?
How much is available to spend on safety and reliability?

5.1.2. Requirements and characteristics

The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:

IEC-publication 257 (1968) and Amendment no. 2 to this publication dated January 1989.
UL-standard no. 512.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.
