| Price | Negotiable |
| MOQ | 1000 |
| Delivery Time | 7 days |
| Brand | littelfuse |
| Place of Origin | China |
| Certification | UL,ROHS |
| Model Number | 337 |
| Payment Terms | 100% TT,Paypal |
| Supply Ability | 5000pcs every day |
| Interrupting Ratings | 1000A @ 32 VDC | Place of Origin | China |
| Complies | SAE 2741 And ISO 8820-3 | Voltage Rating | 32V |
| Product Name | Blade fuse | Current Rating | 3A to 15A |
| Material | Copper And Plastic | Model Number | 337 |
| Supply Ability | 5000pcs every day | Certification | UL,ROHS |
| Brand Name | littelfuse | Payment Terms | 100% TT,Paypal |
| Delivery Time | 7 days | Minimum Order Quantity | 1000 |
| Application | Car,truck,SUV Etc |
The
MICRO3
Fuse
has
3
terminals
and
2
fuse
elements
with
a
common
center
terminal.
Its
sub-miniature
design
meets
the
need
for
more
circuits
to
be
protected
while
utilizing
less
space
and
its
ability
to
cope
with
high
temperatures
in
adverse
environments
makes
the
MICRO3
Fuse
of
recommended
choice
for
protection.
| Part Number | Current Rating (A) | Housing Material Color |
Test
Cable Size (mm2) |
Typ.
Voltage
Drop (mV) |
Typ.
Cold Resistance (mΩ) |
Typ.I2t (A2s) |
| 0337003._ | 3 | 0000 | 176 | 113 | 31.7 | 9 |
| 0337005._ | 5 | 0000 | 141 | 116 | 17.4 | 17 |
| 033707.5_ | 7.5 | 0000 | 137 | 106 | 10.8 | 47 |
| 0337010._ | 10 | 0000 | 136 | 102 | 7.8 | 89 |
| 0337015._ | 15 | 0000 | 128 | 94 | 4.9 | 189 |
| 0337900._ | SHUNT | 0000 | - | - | - | - |

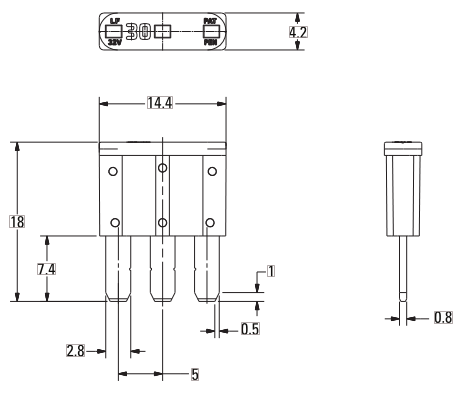

Dimension(mm)
Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) |
| 110 | 360,000 / ∞ |
| 135 | 0.75 / 120 |
| 160 | 0.3 / 50 |
| 200 | 0.15 / 5 |
| 350 | 0.04 / 0.5 |
| 600 | 0.02 / 0.1 |
Related types of blade auto fuses
FAQ
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: ROHS of Littelfuse Automtive Auto Tripod Micro3 Blade Fuse 0337 337 Series 0337005 0337010.LXS 0337015.LXS
