| Price | Can be negotiated |
| MOQ | 1set |
| Delivery Time | 3-5days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | ISO |
| Model Number | SY-5208D |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 100sets per week |
| Place of Origin | CN | Igniting device | Electric igniting gun |
| Packaging Details | Carton | Measuring range | -10℃~+100℃ |
| Standard | ISO 3679:2015 | Method | Rapid equilibrium closed cup method |
| Model Number | SY-5208D | Supply Ability | 100sets per week |
| Temperature resolution | +/-0.1℃ | Certification | ISO |
| Name | Closed Cup Flash Point Tester | Brand Name | SAMYON |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A | Price | Can be negotiated |
| Delivery Time | 3-5days | Minimum Order Quantity | 1set |

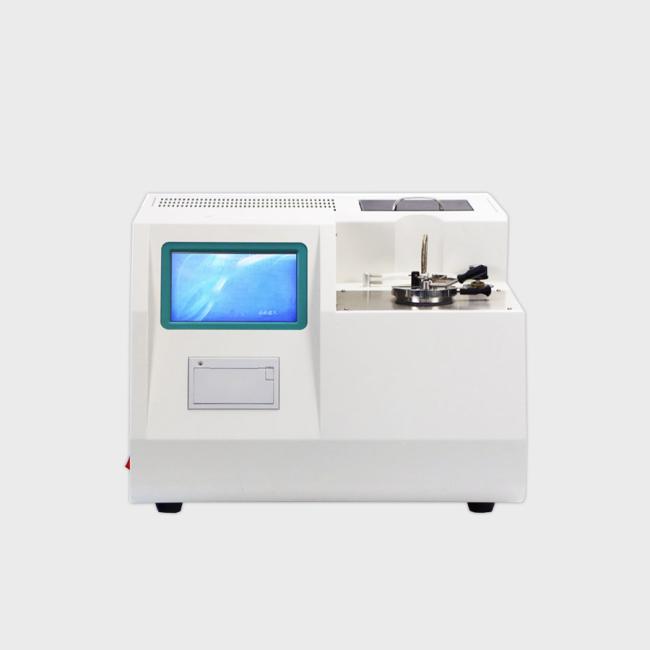

SY-5208D Rapid Equilibrium Closed Up Flash Point Tester
Application:
It is used to determine different kinds of colored paints, oil paints, adhesives, solvents and petroleum products which the closed cup flash point is 0℃~100℃. The SY-5208D is designed based on SY-5208, so the temperature range is larger. Test sample needed is less than 2ml for each time (4ml for solid sample and semi-solid sample). The testing method is as ISO1523 and ISO3679 standard. So it can be widely used by internal customers.
Standard:
ISO 3679:2015 Determination of flash no-flash and flash point - Rapid equilibrium closed cup method
ISO 1523:2002 Determination of flash point - Closed cup equilibrium method
Parameters:
| Item | Name | Details |
| 1 | Igniting device | Electric igniting gun |
| 2 | Flash point measuring range | -10℃~+100℃ |
| 3 | Cooling mode | Semiconductor(with cold water cycle at external connection) |
| 4 | Precision of determination | it meets the standard GB/T 5208 |
| 5 | Temperature resolution | +/-0.1℃ |
| 6 | Igniting source | Gas, LPG (or other civilian fuels) |
| 7 | Ambient temperature | 5~30℃ |
| 8 | Maximum power consumption | 300W |
| 9 | Relative humidity | =<80% |
| 10 | Power supply | AC 220+/-10% V, 50Hz |
| 11 | Dimension | 490x520x390mm |
Features:
1. Test sample is less than 2ml for each time (solid sample and semi-solid sample will be 4ml)
2. The instrument adopts semiconductor refrigeration device and external water cooling device.
3. Designed as per ISO 3679:2015 Determination of flash point - Rapid equilibrium closed cup method. It can realize purpose rapidly and at low temperature.
4. The determination procedure is automatically completed except ignition. Test results can be printed automatically.
