| Price | Can be negotiated |
| MOQ | 1set |
| Delivery Time | 3-5days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | ISO |
| Model Number | HT-20 |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 1000sets per week |
| Impact energy | 0.196J | Place of Origin | CN |
| Size | φ54*268mm | Packaging Details | Carton |
| Model Number | HT-20 | Supply Ability | 1000sets per week |
| Test range | 1.0~25Mpa | Rebound value | 74+/-2 |
| Pointer slider friction | 0.4N~0.6N | Certification | ISO |
| Name | Mortar rebound hammer | Brand Name | SAMYON |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A | Price | Can be negotiated |
| Delivery Time | 3-5days | Minimum Order Quantity | 1set |
HT-20 Mortar Test Hammer To Test The Compressive Strength Of Mortar In Building Brick Component.

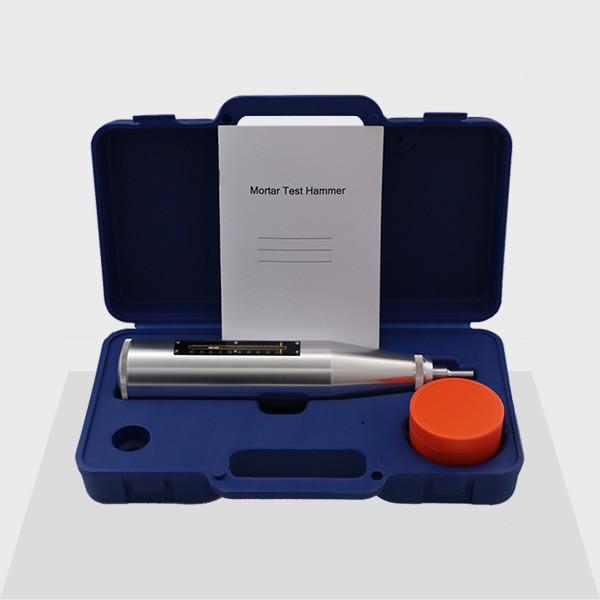

HT-20 Mortar Test Hammer
Application:
It is specially used to test the compressive strength of mortar in building brick component.
Parameters:
| Item | Names | Details |
| 1 | Standard impact energy | 0.196J(0.02Kgf.m) |
| 2 | Test range | 1.0~25Mpa |
| 3 | Stroke of rebound hammer | 75mm |
| 4 | Average rebound value on steel anvil Rm | 74+/-2 |
| 5 | Sphere radius of rebound pole SR | 25mm |
| 6 | Friction of pointer slider | 0.4N~0.6N |
| 7 | Size | φ54*268mm |
| 8 | Weight | About 1kg |
Features:
1. Pointer slider is outside ring structure, easy to adjust friction, and assure the equal friction between pointer slider and axis, so that assure the accuracy of instrument.
2. Shell is made from super hard aluminum, perfectly protect instrument from damage on site work, and prolong use life.
3. Center rod use imported materials, high precision, wear proof.
