| Price | Can be negotiated |
| MOQ | 1set |
| Delivery Time | 3-5days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | ISO |
| Model Number | HT-550 |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 1000sets per week |
| Impact energy | 5.5J | Place of Origin | CN |
| Packaging Details | Carton | Standard | GB/T 9138-1988 |
| Model Number | HT-550 | Supply Ability | 1000sets per week |
| Test range | 60~90Mpa | Rebound value | 83+/-2 |
| Certification | ISO | Name | High strength rebound hammer |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A | Brand Name | SAMYON |
| Tension spring stiffness | 1100N/m | Price | Can be negotiated |
| Delivery Time | 3-5days | Minimum Order Quantity | 1set |
HT-550 High Strength Test Hammer To Test The Bridge Component Compressive Strength

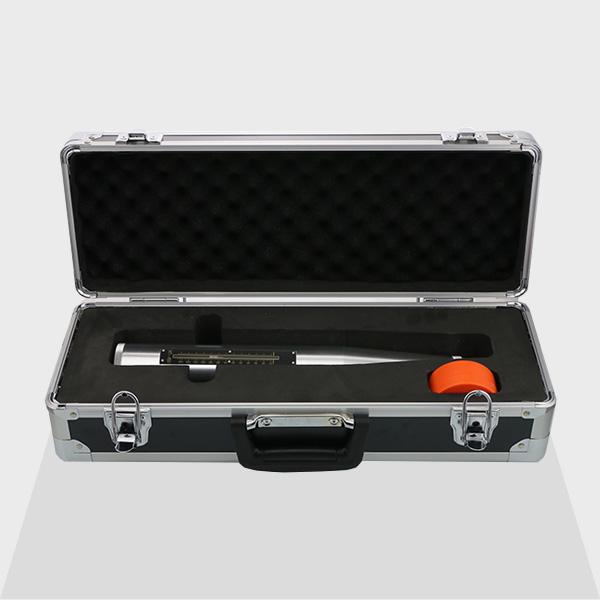

HT-550 High Strength Test Hammer
Application:
It is used to test the compressive strength of building concrete components, bridge and so on. It is designed specifically for the non-destructive testing of hardened concrete structures. The instrument is used for quality Inspection Company, site testing or sampling and laboratory center.
Standard:
GB/T 9138-1988 Concrete test hammer
JJG 817-93 Concrete test hammer
JGJ/T23-2011 Technical specification for inspecting of concrete compressive strength by rebound method
ASTM C805/C805M-2008 Standard Test Method for Rebound Number of Hardened Concrete
BS 1881 Testing concrete Part 202 Recommendations for surface hardness testing by rebound hammer
BS EN 12504-2:2001 Testing concrete in structures-Part 2: Non-destructive testing – Determination of rebound number
Parameters:
| Item | Names | Details |
| 1 | Standard impact energy | 5.5J |
| 2 | Test range | 60~90Mpa |
| 3 | Rebound spring impact length | 100mm |
| 4 | Average rebound value on steel anvil Rm | 83+/-2 |
| 5 | Sphere radius of rebound pole SR | 18mm |
| 6 | Tension spring stiffness | 1100N/m |
| 7 | Size | Φ54*350mm |
| 8 | Weight | About 1.28kg |
Features:
1. Pointer slider is outside ring structure, easy to adjust friction, and to assure equal friction between pointer slider and axis.
2. Shell uses super hard aluminums, protect hammer from damage on site work and prolong use life.
3. Center rod uses imported material, high precision and wear proof
