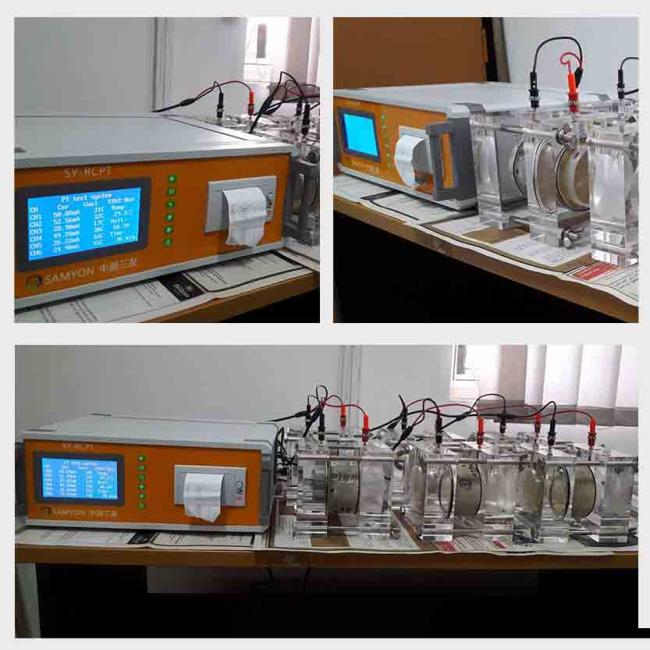

SY-RCPT Rapid Concrete Chloride Ion Penetration Tester For Concrete Permeability Testing
SY-RCPT Rapid Concrete Chloride Ion Penetration Tester
Application:
It is used to detect the durability of concrete - concrete to resist chloride ion penetration properties (density) measurements, test indicator is the six-hour power flux (Coulomb)for the concrete specimens, quickly to evaluate the concrete resistance to the chloride ion penetration ability.
Standard:
ASTM C1202-12 Standard Test Method for Electrical Indication of Concrete's Ability to Resist Chloride Ion Penetration
GB/T50082-2009 Standard for test methods of long-term performance and durability of ordinary concrete
JTJ275－2000 Corrosion prevention technical specification for concrete structure of marine harbour engineering
JG/T261-2009 Apparatus to determine chloride coulomb electric flus of concrete
Parameters:
| Item | Names | Details |
| 1 | Evaluation capacity | C30 ~ C50 Portland cement concrete |
| 2 | Working voltage | 60VDC |
| 3 | Test channels | 6 channels, 9 channels, 12 channels optional |
| 4 | Specimen diameter | 100mm |
| 5 | Specimen thickness | 50mm |
| 6 | Fixture type | Plastic material or Acrylic material |
| 7 | Work environment | 0 ~ 50C |
| 8 | Humidity | =< 75% |
| 9 | Measurement error | <1% |
| 10 | Host dimension | 385*345*145mm |
| 11 | Power supply | ~220VAC 50HZ/60HZ |
Features:
1. Standard RS232 serial communications with fully automatic PC connection software can output the flux test report to generate curve, and then print for analysis and archiving
2. Automatic short circuit protection to avoid equipment damage
3. Embedded computer control, power outages and power-down data storage, advanced technology, well-made, reliable performance, high accuracy.
4. LCD display, with real-time display/print and analysis function, can be separated from Pc to use directly, to facilitate the outdoor field detection.
5. Imported material fixture, high accuracy, easy and smart to use.
6. Can simultaneously test two groups (6), three (9), four (12) concrete specimen one time.
