SY-50T/60T/80T/100T Electric Anchorage Force Tester For Rebar Or Bolt Anchoring Force
SY-50T/60T/80T/100T Electric Anchorage Force Tester
Application:
It is suitable for testing the anchorage force of several of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall.
Standard:
GB 50367-2013 Code for design of strengthening concrete structure
GB 50550-2010 Code for acceptance of construction quality of strengthening building structures
CECS 22:2005 Technical specification for ground anchors
Parameters
| Model | SY-50T | SY-60T | SY-80T | SY-100T | |
| Manual pump | Max Pressure | 63MPa(High), 2Mpa(low) | |||
| Max handle pressure | 500N | ||||
| Oil capacity | 3L | ||||
| Weight | 12kg | ||||
| Oil cylinder | Max force | 500KN | 600KN | 800KN | 1000KN |
| Piston stroke: | 120mm | 150mm | |||
| Weight: | 26kg | 33kg | 42kg | 56kg | |
| Central hole: | 60mm | 65mm | 75mm | 85mm | |
| Digital pressure gauge | Test range | 0-500KN | 0-600KN | 0-800KN | 0-1000KN |
| Power supply | 9v battery | ||||
| Weight | 0.4kg | ||||
|
Anchorage specifications (Optional) |
φ6, φ8, φ10, φ12, φ14, φ16, φ18, φ20, φ22, φ25, φ28, φ32, φ36, φ38, φ40 | ||||
|
Connector specifications (Optional) |
M6, M8, M10, M12, M14, M16, M18, M20, M22, M24,M27, m32, m39 | ||||
Features:

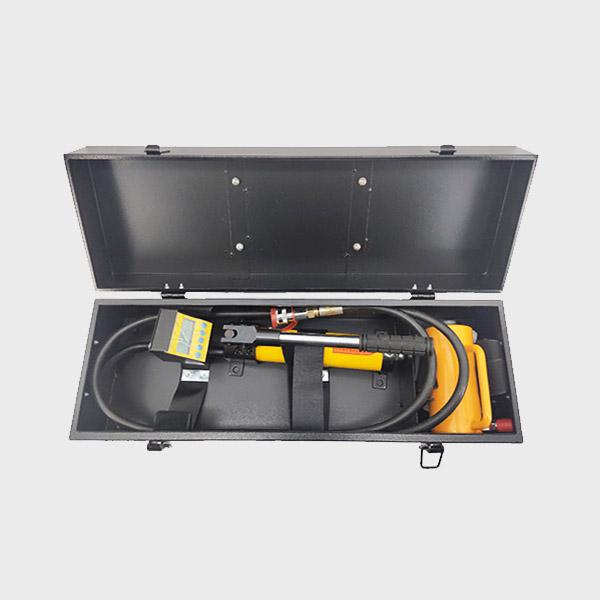

1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.
2. The manual pump is of High-Low pressure dual-Radial Piston design more efficient.
3. The High precision cast steel increase its life.
4. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors. Digital pressure gauge directly shows the tension value.
5. It is featured by compact designation, portable, smaller size, and light weight.
