| Price | Can be negotiated |
| MOQ | 1 |
| Delivery Time | 3-5days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | GB 50367 |
| Model Number | SY |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 100sets per week |
| Place of Origin | CN | Packaging Details | Carton |
| Standard | GB 50550-2010 | Bolt | M6-M27 |
| Model Number | SY | Supply Ability | 100sets per week |
| Certification | GB 50367 | Name | Anchor force tester |
| Brand Name | SAMYON | Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Price | Can be negotiated | Delivery Time | 3-5days |
| Minimum Order Quantity | 1 | Max Pressure | 55MPa |
| Anchorage | 6-40mm | Force range | 0-300KN |
SY-10T/20T/30T Anchorage Force Tester For Checking Strengthening Concrete Structure
SY-10T/20T/30T Anchorage Force Tester
Application:
It is suitable for testing the anchorage force of several of anchor shank, rebar and expansion bolts, also the pull force of glass block screen wall. The anchorage test range will be from diameter 6mm to 40mm, and bolt diameter will be from M6 to M27. It is used to do verification for the anchoraging force, check whether it can reach the force requirement.
Standard:
GB 50367-2013 Code for design of strengthening concrete structure
GB 50550-2010 Code for acceptance of construction quality of strengthening building structures
CECS 22:2005 Technical specification for ground anchors
JGJ 145-2013 Technical specification for post-installed fastenings in concrete structures
Parameters:
| Model | SY-10T | SY-15T | SY-20T | SY-30T | |
| Manual pump | Piston diameter | 12mm | |||
| Max Pressure | 55MPa | ||||
| Weight | 5kg | ||||
| Oil cylinder | Max force | 100KN | 150KN | 200KN | 300KN |
| Piston stroke: | 60mm | 80mm | |||
| Weight: | 6kg | 11kg | 13kg | ||
| Central hole: | 27mm | 34mm | 45mm | ||
| Digital pressure gauge | Test range | 0-100KN | 0-150KN | 0-200KN | 0-300KN |
| Power supply | 9v battery | ||||
| Weight | 0.4kg | ||||
|
Anchorage specifications (Optional) |
φ6, φ8, φ10, φ12, φ14, φ16, φ18, φ20, φ22, φ25, φ28, φ32, φ36, φ40 | ||||
|
Connector specifications (Optional) |
M6, M8, M10, M12, M14, M16, M18, M20, M22, M24,M27 | ||||
Features:

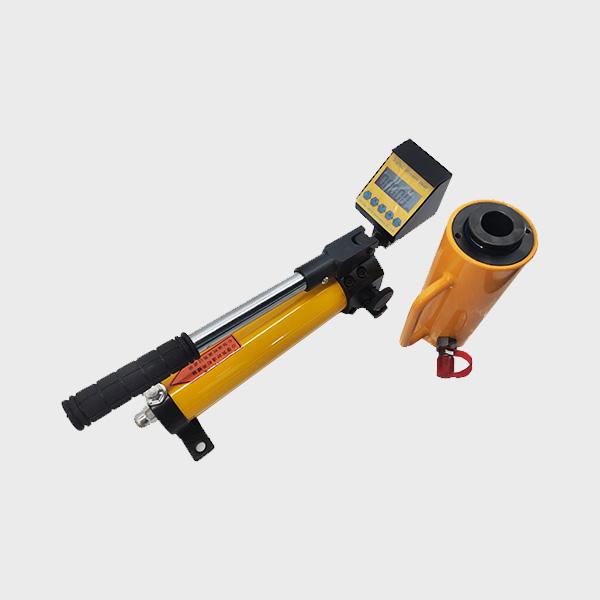

1. It consists of Manual pump, Hydraulic cylinder, Digital pressure gauge, and High-pressure rubber pipe.
2. The manual pump is of High-Low pressure dual-Radial Piston design, so it will be suitable for small force testing and larger force testing.
3. The Hydraulic cylinder adopts hollow automatic reset design. Hydraulic cylinder has handhold which connects the high pressure pipe with the two connectors.
