| Price | Can be negotiated |
| MOQ | 1 |
| Delivery Time | 3-5days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | CECS 146 |
| Model Number | SYTJ-10 |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 100sets per week |
| Working current | =<10mA | Place of Origin | CN |
| Packaging Details | Carton | Indication error | =<+/-1%F.S |
| Standard | CECS 146:2003 | Model Number | SYTJ-10 |
| Supply Ability | 100sets per week | Certification | CECS 146 |
| Name | Adhesive strength tester | Brand Name | SAMYON |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A | Tension stroke | 65mm |
| Price | Can be negotiated | Delivery Time | 3-5days |
| Minimum Order Quantity | 1 | Tension force | 10kN |
SYTJ-10 10KN Carbon Fiber Adhesive Strength Tester With Intensity (MPa) And Force Value (KN)

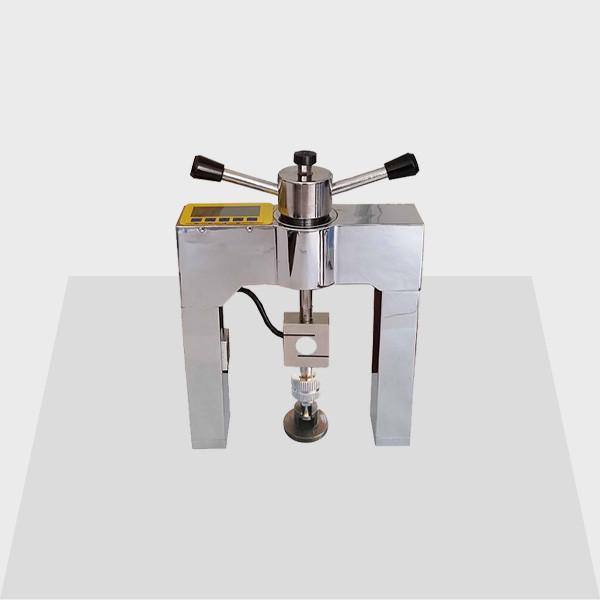

SYTJ-10 Carbon Fiber Adhesive Strength Tester
Application:
This instrument is suitable for testing the adhesive strength between carbon fiber reinforced polymer laminate and concrete in the civil construction structure. It is recommended product of CECS 146:2003 Technical specification for strengthening concrete structures with carbon fiber reinforced polymer laminate. According to the adhesive strength and the destroy form, it can instantly obtain the test results
Standard:
CECS 146:2003 Technical specification for strengthening concrete structures with carbon fiber reinforced polymer laminate.
Parameter:
| Item | Name | Details |
| 1 | Maximum tension force | 10kN |
| 2 | Tension stroke | 65mm |
| 3 | Indication error | =<+/-1%F.S |
| 4 | Weight | 2.8kg |
| 5 | Turn off current | =<2μA |
| 6 | Working current | =<10mA |
| 7 | Power | 4.2V Li battery |
Features:
1. New structure, outstanding advantage, convenient operation,
2. With adhesive standard block conversion curves, the intensity (MPa) and force value (KN) is convertible
3. Digital meter features: liquid crystal display, direct force reading, peak holding, data storage, curve correction, automatic shutdown
