| Price | Can be negotiated |
| MOQ | 1 |
| Delivery Time | 8-10days |
| Brand | SAMYON |
| Place of Origin | CN |
| Certification | ISO |
| Model Number | TEM |
| Packaging Details | Carton |
| Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Supply Ability | 999/mth |
| Place of Origin | CN | Packaging Details | Carton |
| Product Name | TEM Magnetic Sensor | Model Number | TEM |
| Supply Ability | 999/mth | Certification | ISO |
| Work System | GDP-32/ V8 | Depth | 1000m / 2000m |
| Brand Name | SAMYON | Payment Terms | Western Union, MoneyGram, , T/T, D/P, D/A |
| Type | 70K / 16K / 7K | Price | Can be negotiated |
| Delivery Time | 8-10days | Minimum Order Quantity | 1 |
| Borehole Sensor | 15K | Application | TEM system |
TEM Magnetic Sensor TEM-250K (P)), TEM-70K, TEM16K, TEM7K Work With GDP32

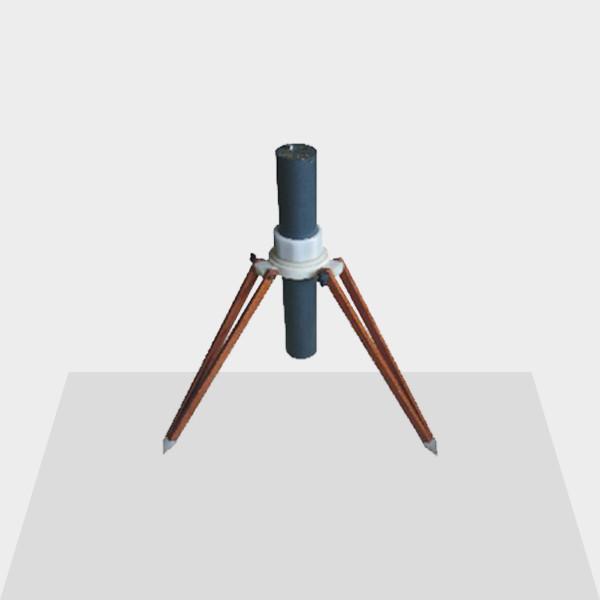

TEM Magnetic Sensor
It is long history to study and produce TEM magnetic sensor. Nowadays there are two kinds:
|
1. Ground surface TEM magnetic sensor: TEM-250K (include TEM-250K (P)), TEM-70K, TEM16K, TEM7K, that applicant in geophysical exploration according to different depth. |
|
2. Borehole tri-component Magnetic sensor: TEM-15K, that consists two sensor: one borehole vertical HZ sensor, and the other borehole Horizontal Hy, Hx and sensor state (direction and inclination angle), which can find borehole surrounding and bottom unmoral magnetic. |
Both TEM Magnetic sensors can associate with much of TEM system, Such as GDP-32 from Zonge, USA, and V8 from Phoenix Canada.
TEM-15K(Hz) Magnetic sensor is the special borehole tri-component sensor that used for vertical checking. There are two kinds: 1000m and 2000m depth in borehole.
1000m based on 15Mpa pressure experience and 2000m for 30Mpa, Temperature 85 Degree and sensor outside dia 38mm experience.
