| Price | 12-25USD/ M2 |
| MOQ | 20M2 |
| Delivery Time | 7-10 working days after advanced payment |
| Brand | Silver Star |
| Place of Origin | China |
| Certification | ISO9001, SONCAP |
| Model Number | YX7090 |
| Packaging Details | Carton box packaging |
| Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability | 200000sets/ month |
| Place of Origin | China | Packaging Details | Carton box packaging |
| Product Name | 7090 Honeycomb Filter Air Cooling Pad Water Cooler For Poultry Farm And Greenhouse | Color | Brown, Green, or Brown mixed Green |
| Outer Frame Material | Hot galvanized or aluminum-alloy | Model Number | YX7090 |
| Supply Ability | 200000sets/ month | Certification | ISO9001, SONCAP |
| Brand Name | Silver Star | Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Function | Ventilation and cooling | Cooling Pad Size | 1500-2500mm height, 300-900mm width, 10-30cm thickness |
| Price | 12-25USD/ M2 | Delivery Time | 7-10 working days after advanced payment |
| Apply For | Animal Livestock, greenhouse, industrial plants | Minimum Order Quantity | 20M2 |
| Model | 7090, 7060, 5090 | Cooling Pad Paper | Corrugated fiber paper |
| Performance | high structural strength, corrosion resistance and long service life. |

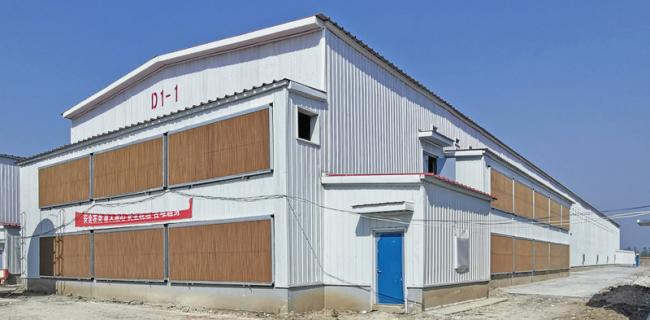

7090 Honeycomb Filter Air Cooling Pad Water Cooler For Poultry Farm And Greenhouse
Air Cooling Pad Water Cooler Working Principle
The cooling process of the Silver Star cooling pad or wet curtain cooling system is completed in its core-the paper cushion. There is a thin water film on the surface of the corrugated fiber paper. When the outdoor dry hot air is sucked through the paper pad by the fan, the water on the water film evaporates and absorbs the heat in the air and then evaporates into water vapor, which is processed Then the cool and humid air entered the room. This natural process is like the wind blowing across the water.
The air dry bulb temperature and wet bulb temperature in the external environment are different at each moment. The dry bulb temperature is high and the wet bulb temperature is low. The hotter the weather, the greater the difference between the dry bulb and the wet bulb temperature.
Air Cooling Pad Water Cooler Techinical Paramete
| Dimension (mm) | 7090Model | 7060 Model |
| Height | 1500,1800,2000, 2500 | 1500,1800,2000, 2500 |
| Width | 900,600,300 | 900,600 |
| Thickness | 100,150,200,300 | 100,150,200,300 |
| Height of flute | 7 | 5 |
5090Model also can be provided according to order.
Honeycomb Filter Air Cooling Pad Water Cooler Features
1. The evaporation is larger than the surface, and the excellent permeability can ensure that the water evenly penetrates the entire wet curtain wall, and the cooling efficiency is over 85%.
2. It does not contain surfactants, naturally absorbs water, has a fast spreading speed, and has a long-lasting effect. A drop of water can be diffused in 4~5 seconds.
3. It has high water absorption, natural water absorption is 60~70mm/5min or 200mm/1.5hour.
4. The corrugated paper has been specially treated, with high structural strength, no deformation, and long-lasting durability.
5. The specific three-dimensional space structure provides the largest evaporation surface area for the heat exchange between water and air.
6. Silver Star wet curtain also has ventilation and corrosion resistance, has an excellent filtering effect on dust in the air, is a non-toxic, odorless, clean, humidified, and oxygen-cooled environmentally friendly material, so it is also used for air purification and filtration Medium.
7. Silver Star cooling pad is easy to install, non-toxic and harmless to the human body, green, safe, energy-saving, environmentally friendly and economical.
8. Three corrugated specifications 50/90, 60/90, 70/90 are optional. The size can be customized according to customer requirements.
9. Outer frame material: aluminum alloy, galvanized sheet, stainless steel, plastic steel
