| Price | 80-352USD/ Set |
| MOQ | 2 Set |
| Delivery Time | 7-10 working days after advanced payment |
| Brand | Silver Star |
| Place of Origin | China |
| Certification | ISO9001, SONCAP |
| Model Number | YXF-1380 |
| Packaging Details | Carton box packaging |
| Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Supply Ability | 200000sets/ month |
| Place of Origin | China | Size | 1380x1380x450mm |
| Outer Frame | Hot galvanized, AL-M alloy, stainless steel | Input Power | 1.1KW, 50/60HZ, 3 phase or single phase |
| Packaging Details | Carton box packaging | Product Name | Chicken Farm Poultry Environmental Control System Ventilation Fan |
| Blade Material: | Stainless steel | Model Number | YXF-1380 |
| Supply Ability | 200000sets/ month | Certification | ISO9001, SONCAP |
| Brand Name | Silver Star | Payment Terms | T/T, Western Union, D/A, D/P, L/C |
| Dia. of Blades | 1270mm | Function | Ventilation and cooling |
| Price | 80-352USD/ Set | Delivery Time | 7-10 working days after advanced payment |
| Apply For | Animal Livestock, greenhouse, industrial plants | Minimum Order Quantity | 2 Set |
| Air Flow Volume | 46000m3/h | Performance | small wind resistance, good sealing and high efficiency |
Chicken Farm Poultry Environmental Control System Ventilation Fan
Poultry Environmental Control System Ventilation Fan Structure And Principle

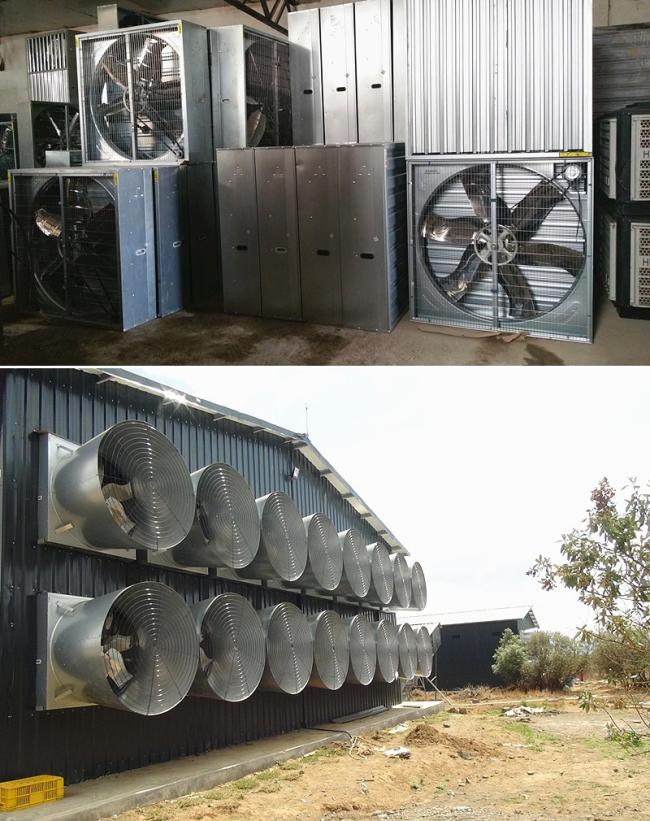

The fan is mainly composed of blades, motors, outer frames, guard nets, support frames, shutters, etc. It is developed by our company's technicians based on aerodynamics. It effectively reduces the drag coefficient and optimizes the overall performance of the equipment. The main parts of the equipment are made of (national standard thickened galvanized layer) galvanized sheet and stainless steel sheet stamped by computerCNC machines. This product is widely used in various types of animal husbandry. Ventilation and cooling for poultry farms,greenhouses, industrial plants and other places.
Poultry Environmental Control System Ventilation Fans Techinical Paramete
| Model |
Dirve method |
Dia.of blades mm |
Speed of blades mm |
Motor speed RPM |
Air flow m³/h |
Total pressure Pa |
Noise db |
Input power W |
Rated Voltage V |
Overall dimensions Height*Width*Thickness mm |
| YXFH-620 | Direct | 500 | 1400 | 1400 | 5700 | 55 | ≤70 | 250 | 380 | 620*620*450 |
| YXFH-780 | Belt | 710 | 650 | 1400 | 18000 | 60 | ≤60 | 370 | 380 | 7808780*450 |
| YXFH-1000 | Belt | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000*1000*450 |
| YXFH-1100 | Belt | 1000 | 600 | 1400 | 325000 | 70 | ≤70 | 750 | 380 | 1100*1100*450 |
| YXFH-1220 | Belt | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 750 | 380 | 1220*1200*450 |
| YXFH-1380 | Belt | 1270 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380*1380*450 |
| YXFH-1530 | Belt | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530*1530*450 |
Chicken Farm Ventilation Fan Performance Characteristics:
1. High quality and thickened zinc-coated galvanized sheet ensures the high strength of the fans frame and high corrosion resistance.
2. Rigid strength aluminum-magnesium alloy multi-reinforced belt pulley is sandblasted to improve aesthetics, eliminate internal stress, and effectively improve its own strength.
3. Bearing adopts imported bearings with high strength, low noise and long service life.
4. Equipped with high efficiency and energy saving motors, passed 3C certification, protection level: IP55, insulation level: F level. Siemens motor or China’s famous brand motors can be served.
5. The mechanical centrifugal opening mechanism is made of 100% reinforced nylon with high toughness by injection molding, which has high strength and long life.
6. Two types of air collectors made of iron and glass fiber reinforced plastics are adopted. The rear installation net is easy to disassemble, and the CAD optimized design.
7. High precision microcomputer-assisted production system: strict quality inspection, noise inspection, vibration inspection, fan speed inspection
8. Fans are calibrated by an advanced computer balance tester to make the fans run smoothly, reduce noise, enhance stability, and extend service life.
