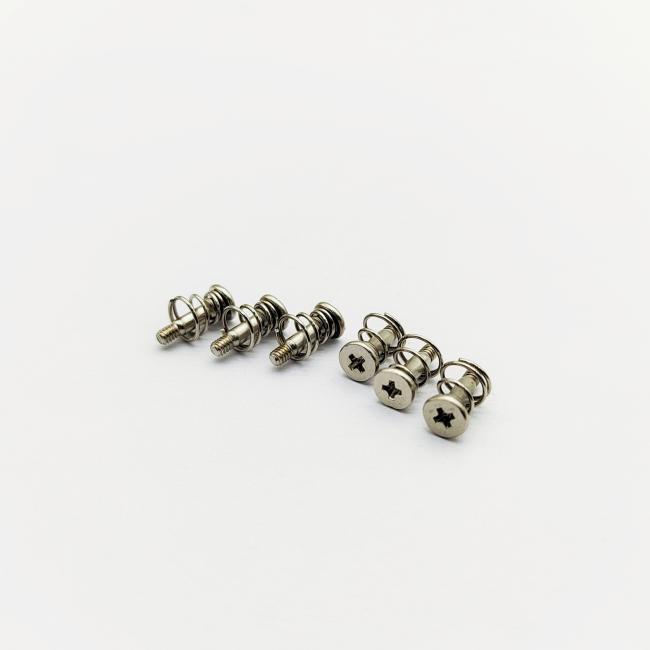

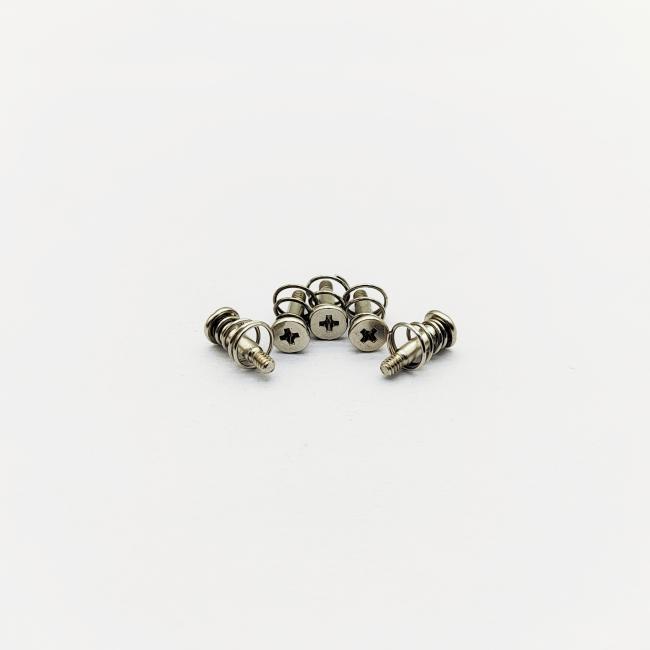

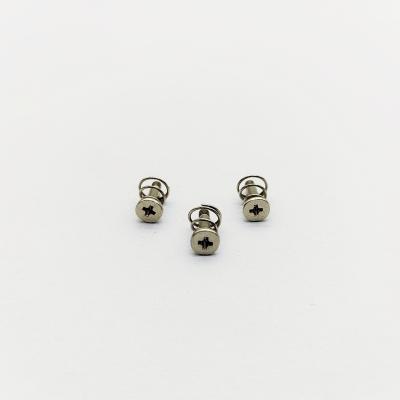

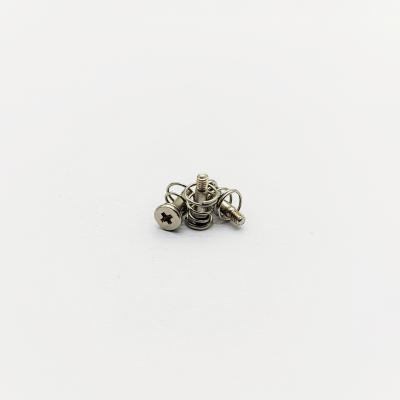

Custom
M2
Spring
Screws
for
Compact
Heatsinks
|
10mm
Size,
Phillips
Drive
Source
reliable
M2
spring
screws
for
small
heatsinks.
10mm
overall,
2.5mm
thread,
phosphating
finish.
Perfect
pressure
for
SSD/RAM
cooling.
Request
custom
sizes
&
materials.
Designed
for
precision
and
reliability,
our
M2
Heatsink
Spring
Screws
provide
the
essential
controlled
clamping
force
required
for
effective
cooling
in
modern,
miniaturized
electronics.
The
stainless
steel
spring
maintains
ideal
pressure
between
the
heatsink
and
IC
package,
overcoming
warping,
tolerance
stacks,
and
thermal
cycling
effects.
This
results
in
maximized
heat
transfer
efficiency
and
enhanced
product
lifespan
for
your
compact
devices.
Technical
Specifications
|
Specification
|
Detail
|
|
Total
Length
|
10.0
mm
(±0.1mm)
|
|
Thread
Length
|
2.5
mm
(±0.1mm)
|
|
Thread
Diameter
|
M2
(Metric)
|
|
Drive
Type
|
Cross
Recess
(Phillips)
|
|
Head
Style
|
Low-Profile
Pan
Head
|
|
Material
|
Carbon
Steel
|
|
Spring
Material
|
304
Stainless
Steel
|
|
Surface
Treatment
|
Zinc
Phosphate
Coating
(Phosphating)
|
|
Customization
|
All
aspects
can
be
customized,
including
length,
material
(e.g.,
SS410),
and
plating.
|
Primary
Uses
&
Applications
Ideal
for
applying
and
maintaining
precise
mounting
pressure
in
applications
including:
-
M.2
SSD
and
NVMe
Drive
Heatsinks
-
Memory
Module
(RAM)
Heat
Spreaders
-
Small
Form-Factor
Motherboard
Chipset
Cooling
-
Laptop
and
Ultrabook
Internal
Thermal
Management
-
Networking
Hardware
(Switches,
Routers)
Component
Cooling
How
to
Use
For
correct
installation
and
optimal
performance:
-
Confirm
the
use
of
M2
threaded
standoffs
on
the
PCB.
-
Position
the
heatsink
correctly
over
the
component.
-
Start
each
screw
by
hand
to
prevent
cross-threading.
-
Using
a
controlled
torque
screwdriver
with
a
Phillips
bit,
tighten
gradually
in
a
star
pattern
if
multiple
screws
are
used.
-
The
installation
is
complete
when
the
spring
is
compressed
and
the
heatsink
is
secure.
Do
NOT
tighten
until
the
screw
driver
stalls.
The
spring
must
remain
functional
to
apply
pressure.
-
Verify
the
heatsink
is
flat
and
does
not
rock.
Our
Advantages
-
More
than
20
years
of
screw
production
experience
and
non-standard
screw
custom
development
experience,
providing
cost-effective
solutions
for
your
fastener
supply
chain.
-
Precise
production
equipment
with
all
imported
machinery
from
Taiwan
to
produce
precision
screws
and
hardware
accessories.
Free
samples
available
for
compatibility
verification.
-
Complete
quality
management
system
with
multiple
strict
monitoring
checks
for
every
batch
of
products.
-
Dedicated
account
management
for
seamless
collaboration
and
system-supporting
services.
Support
and
Services
Our
team
of
knowledgeable
professionals
provides
comprehensive
support
services
for
all
aspects
of
our
Spring
Screws,
including:
-
Selection
advice
to
ensure
you
have
the
right
type
and
size
for
your
project
-
Guidance
on
proper
installation
techniques
-
Detailed
product
specifications
and
material
safety
data
sheets
-
Step-by-step
installation
guides
and
troubleshooting
assistance
-
Maintenance
tips
and
best
practices
to
extend
product
life
Packing
and
Shipping
Our
Spring
Screws
are
carefully
packaged
to
ensure
perfect
condition
upon
arrival:
-
Secured
in
durable,
moisture-resistant
plastic
bags
within
sturdy
cardboard
boxes
-
Properly
labeled
with
product
information
for
easy
identification
-
Larger
orders
palletized,
shrink-wrapped,
and
strapped
securely
-
Shipped
via
reliable
courier
services
with
tracking
information
provided
Our
factory
accepts
customized
drawings.
Please
contact
us
if
you
need
to
highlight
specific
certifications
or
other
parameters
in
your
order.
