50x100mm Y Post Airport 358 Security Fence Bto22 Pvc Coated With Razor Barbed Wire

Price	negotiable
MOQ	50sets
Delivery Time	10-20days
Brand	HBGB
Place of Origin	China
Certification	ISO 9001
Model Number	GB-0011
Packaging Details	Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside
Payment Terms	L/C, T/T
Supply Ability	500 sets per day

Product Details

Product Specification

product name	anti climb airport fence	Place of Origin	China
mesh size	50mm x 100mm, 50mm x 150mm, 50mm x 200mm	post length	1.9-3.6m
Packaging Details	Put the meshes and post on the tray, bind well with the strap, and then pack plastic film on the outside	post size	60*60 square post
Model Number	GB-0011	Raw material	fence panel + razor barbed wire
Supply Ability	500 sets per day	Feature	strong security
Certification	ISO 9001	Brand Name	HBGB
Payment Terms	L/C, T/T	Price	negotiable
Delivery Time	10-20days	Minimum Order Quantity	50sets
Post shape	Y shaped	Post thickness	2.0, 2.5mm
wire gauge	3.0mm~6.0mm	Application	For Prison, Airport, Railway station

Product Description

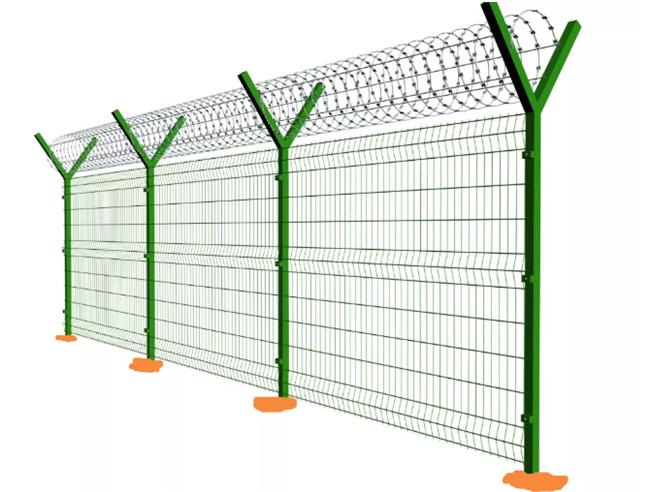

Anti Climb Y Post PVC Coated Airport Fence With Razor Barbed Wire

Anti climb airport fence description:

Airport Fence is also known as Y-Shape Security Fence. It is strengthened by the V-shaped support arm and welded mesh panel or chain link fence, security fittings and hot-dip galvanized concertina razor mesh to form a high level of strength and security.

Features of Anti climb airport fence:

1. resistance to strong pressure
2. shear resistance
3. resistance to deformation
4. High strength
5. Anti climb

Anti climb airport fence specification:

1. Airport Fence Panel Common Specifications

Panel	Mesh	Wire Thickness	Surface Treatment	Panel Width	Folds NOS.	Panel Height	Fence Height
Big Panel	50x100mm 55x100mm	4.00mm 4.50mm 5.00mm	Galvanized and Electrostatic polyester coated or PVC coated	2.50m 3.00m	4	2000mm	2700mm
					5	2300mm	3200mm
					6	2600mm	3700mm
V panel					2	530mm	2700mm
					2	630mm	3200mm
					2	730mm	3700mm

2. Y Post Common Specifications

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x60mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	1900mm / +400mm I	Available on request	Plastic or Metal
			2200mm / +500mm I
			2500mm / +500mm I

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x60mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	2700mm I +550mm V	Available on request	Plastic or Metal
			3100mm I +650mm V
			3600mm I +750mm V

3. Razor Wire Common Specifications

Type	Core wire /Blade thickness	Surface Treatment	Length	Out side diameter	Clips
BTO-22	2.5/0.5mm	Hot dipped galvanized	8-10m/roll	500mm	3 lines
				600mm
				700mm

Application of airport fence:

1. Prison security fencing;
2. Store anti-climb guarding;
3. Airport security fencing;
4. Factory machine guards;
5. Walkway security fencing;
6. Psychiatric hospital security fencing;
